6.3.2 Filling spindle lubricant ducts

See Chapter 4.2.3
To conclude, the lubricant ducts within the
spindle are individually filled with lubricant.
The procedure is analogous to filling capillary
lines. Filling is activated using switch position
"F" for the outlets. With this method, only one
duct can be filled successively at a time. Stop
the lubricant delivery once filling time FT
elapses.
Multiple ducts can be filled simultaneously if
filling is performed by selecting a defined vol-
umetric flow via switched SV1-SV4 on the
MDS.
The volumetric flow must be stopped once fill-
ing time TF expires.
4
ON
1 2 3 4
DIP switchS4
Operating mode
S4 off = automatic calibration
S4 on =no automatic calibration
Rotary switches SV1 to SV2
Position "F" = Capillary filling and valve
venting
Position "E" = Manual calibration
On
O
0
SV1
6. Operation

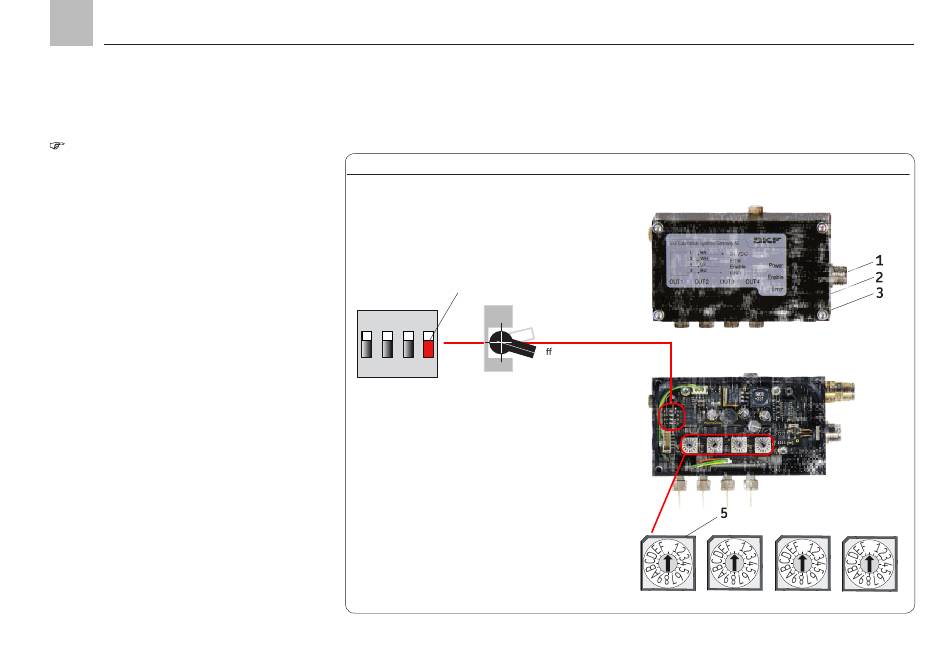

Adjustment elements, Fig. 7
0 0
0
SV2 SV3 SV4
