Assembly instructions

4.4.3 Capillary line connection

See Figure 7
The capillary line is not included with the
MDU and must be ordered separately as
an accessory (see "Accessories" chapter).
The capillary line must be trimmed to size
using a special hose cutter which can be
ordered separately.
The interfaces at the ends of the capillary
lines must be clean for the system to
function properly.
• Draw capillary line (9) through the union nut
(5) and clamp ring (7) and place it flush on
the ferrule (8) (sleeve).
• Apply union nut (5) (with capillary line,
clamp ring, and ferrule) to the capillary uni
on (6) and tighten.
• Check whether the hose is correctly in-
stalled; briefly pull on the end of the hose
(capillary union) to do so.
The lubricant feed line must not escape
from the plug connector.
• Repeat the procedure for the remaining
capillary unions.
6
5
9
Page 29

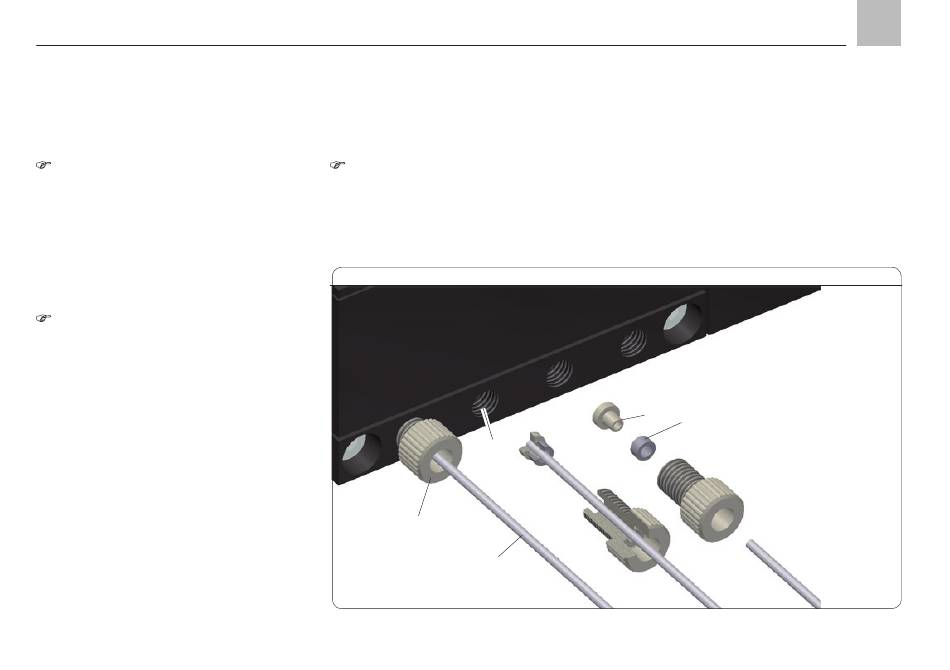

Capillary line connection, Fig. 7
8 7
EN
