Page 24
• Clamp/close the vent hose above the level of
the socket wrench.
• Pull off and remove vent hose (9) and socket
wrench (3).
• Apply hexagon socket screw (2) and tighten
with socket wrench (3) (torque 5 Nm).
• Continue filling until the lubricant has
reached the upper third of the maximum
level on the sight glass (7).
• Remove filling device (6) and install cap (4).
• Switch on the compressed air supply.
3 10
2
9
Connection
Compressed air
feed
Reservoir status: Empty
(condition on delivery)
Compressed air feed must
8
not be connected!
1
Receiver tank
7
Minimum Full Full, maximum
Assembly instructions

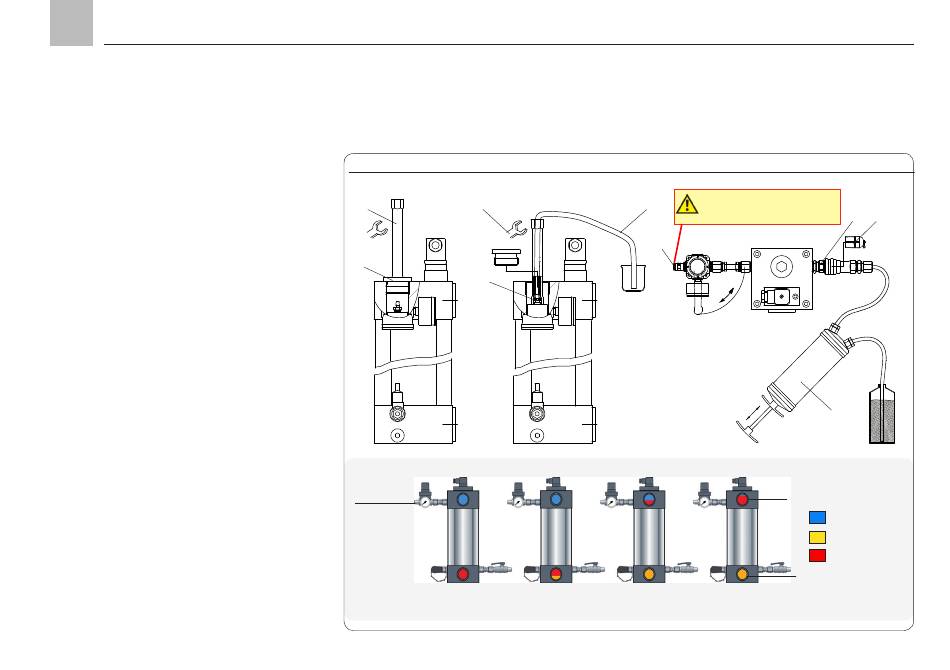

Venting the MDR, Fig. 3
5 4
6
Sight glass maximum
Air
Oil
Indicator
Sight glass minimum
