3. Overview

3.1 Overview of the SKF microdosage system
1a
1b
1c
1
1d
1e

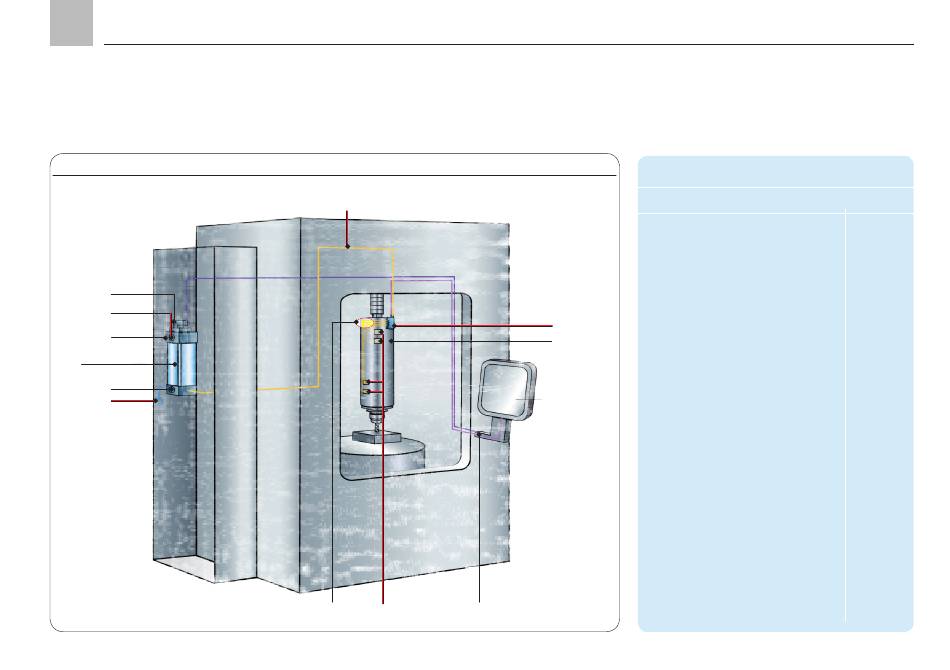

Application example of the microdosage system on a machine tool
2
5
6
Item Description
1 MDR lubricant reservoir
1a Electr. fill level switch
1b Max. fill level sight glass
1c Compressed air connection
1d Min. fill level sight glass
1e Filler coupling
4
3 2 Main lubricant line for MDU
3 High-speed spindle
PLC
4 MDU micro-metering unit
5 Capillary lines to the
6 Lubrication points (spindle bearing) OI/Chap. 4
7 Data lines for MDU/MDR
(OI = Operating Instructions)
