SKF MicroDosage System Assembly Instructions Manual page 28

EN
Page 28
M12x1 plug
Accessories, Table 2
Designation Order No.
4-pin plug, M12x1 179-990-600
with 5 m connection cable
4-pin plug, M12x1 179-990-371
(without connecting cable)
1
Connecting
coupling (2)
2
4
3
Enable: 0 / 24 V
Error: 0 = error/ 24 V = OK
Note!
You can find additional technical data on the
cable sockets in the brochure
"Electrical Plug and Socket Connectors,"
brochure No. 1-1730-EN.

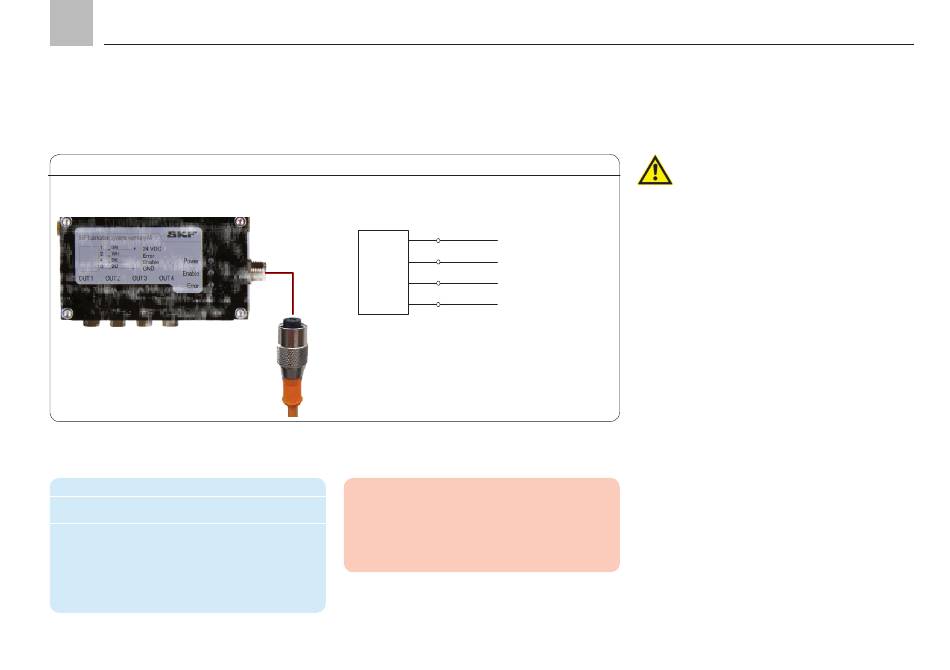

Electrical connection, Fig. 6
BN
24 VDC
+
WH
Error
BK
Enable
BU
GND
-
Assembly instructions
Note!
Use functional extra-low voltage with
safe isolation according to standard DIN
EN 60204-1 / IEC/60204-1.
When establishing the MDU micro- me-
tering unit's electrical connection, ensu-
re that appropriate measures prevent
interference between signals due to
inductive, capacitive, or electro-magnetic
couplings.
Shielded cables must be used if electrical
interference fields affect signal trans-
missions despite separate laying of
cables. Ensure that cables are arranged
in an "EMC-compliant" manner.
