6. Operation

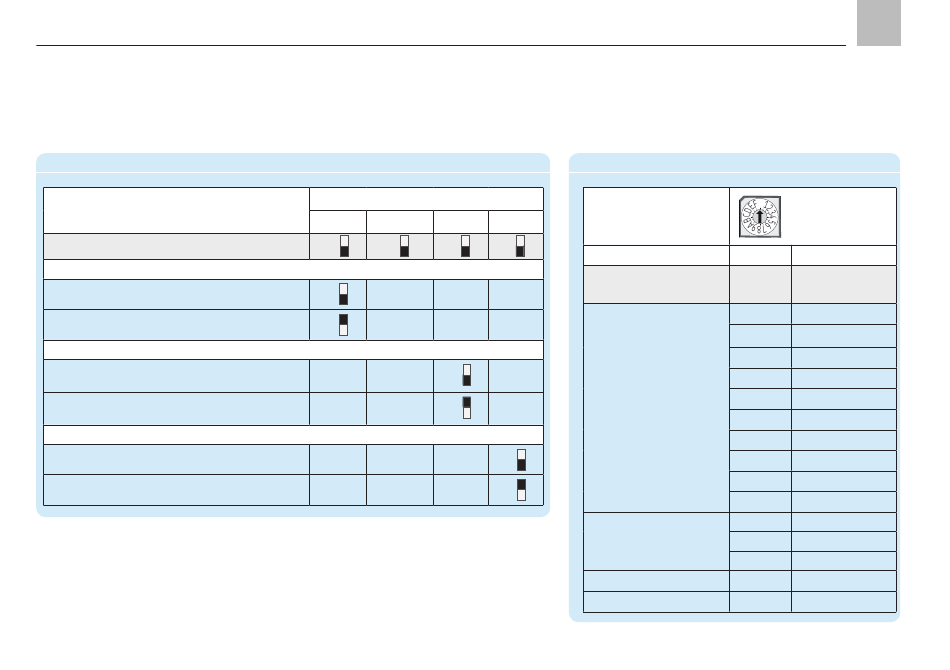

6.2.1 Configuring the system

Function/operating mode
(S1 to S4)
Condition on delivery/default setting
Time slot
S1 off = Volumetric flow range 0.5 to 5.0 µl
S1 on = Volumetric flow range 0.05 to 0.50 µl
Delivery signal status
S3 off = lubrication at high signal
(24 VDC)
S3 on = lubrication at low signal
(GND, 0 VDC)
Calibration
S4 off = automatic calibration
S4 on = no automatic calibration
1) S2 has no function (reserved for future firmware update)
0
Switch position
ON
On
O
[S1] [S2] ) [S3]
1
1 2 3 4

6.2.2 Determining quantity of lubricant

Table A
Configuration of
lubricant quantity
[S4]
(SV1 to SV4)
Lubrication system
deactivated
Lubricant quantity
Lubrication system
deactivated
Manual calibration
Venting/line filling
EN
Page 47
Table B
Rotary switch
0
[Switch position
µl/min
0
0
1
0.5
2
1.0
3
1.5
4
2.0
5
2.5
6
3.0
7
3.5
8
4.0
9
4.5
A
5.0
B
C
D
E
F
