3.2 Overview of MDU micro-metering unit
5
13
12
10/11

MDU micro-metering unit

2
1
3
4
6
7
14
8
9

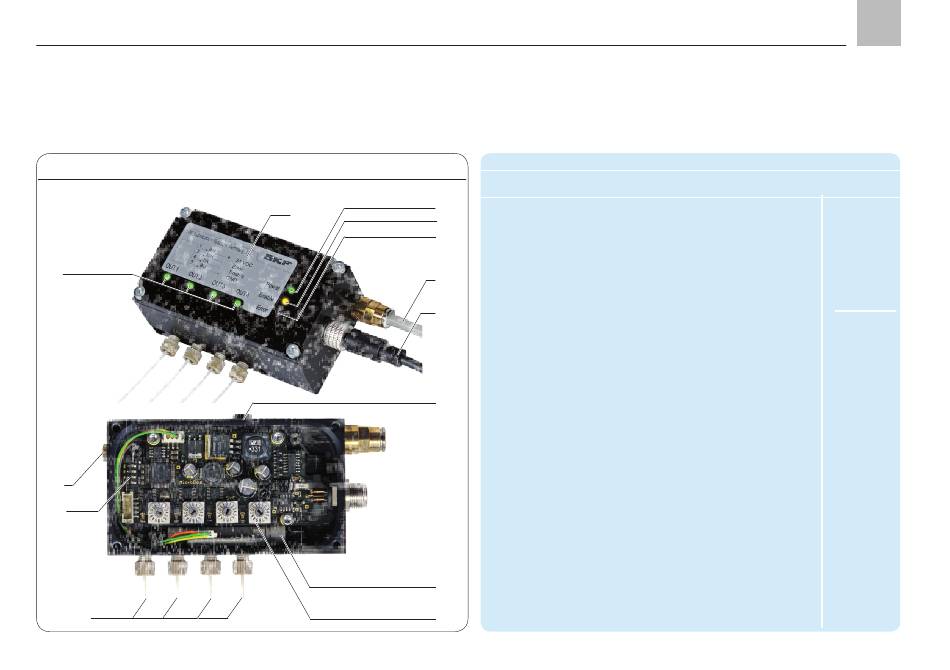

Components of the MDU micro-metering unit
Item Description
1 MDU micro-metering unit
2 Power supply LED (green power LED)
3 LED enable signal (yellow enable LED)
4 Error notification LED (red error LED)
5 LEDs for outlet 1 to outlet 4 (OUT1- OUT4)
6 Push connector/connecting cable for lubricant feed
7 Connection for supply/control voltage
8 Flow sensor
9 Rotary switch for setting lubricant quantity (x4)
10 Connection for capillary lines, lubricant outlet (x4)
OUT1 to OUT4
11 Capillary lines (x 4)
12 DIP switches for system configuration
13 Side vent plug
14 Top vent plug
(OI = Operating Instructions)
