Technical data of the device
5.2.2.

Integrated AC power supply unit

An integrated, electrically isolated AC power supply unit is available exclusively for the
DLT-V8315 (optional).
The power is connected to the AC power supply unit on the underside of the device using an angled
power connector for non-heating apparatus.
The cable of the angled power connector is equipped with an On/Off-switch for the power grid.
Hazardous voltage
Use only original power supply cables from Advantech. Advantech power cables meet the
specific requirements for low-temperature flexibility, UV resistance, oil resistance, etc. If other
power cables are used, the user/operator of the Industrial Computer is solely responsible for
any resulting damage.
AC power supply connection
Connector for non-heating apparatus to IEC 320, 3-pin
External view of the connector:

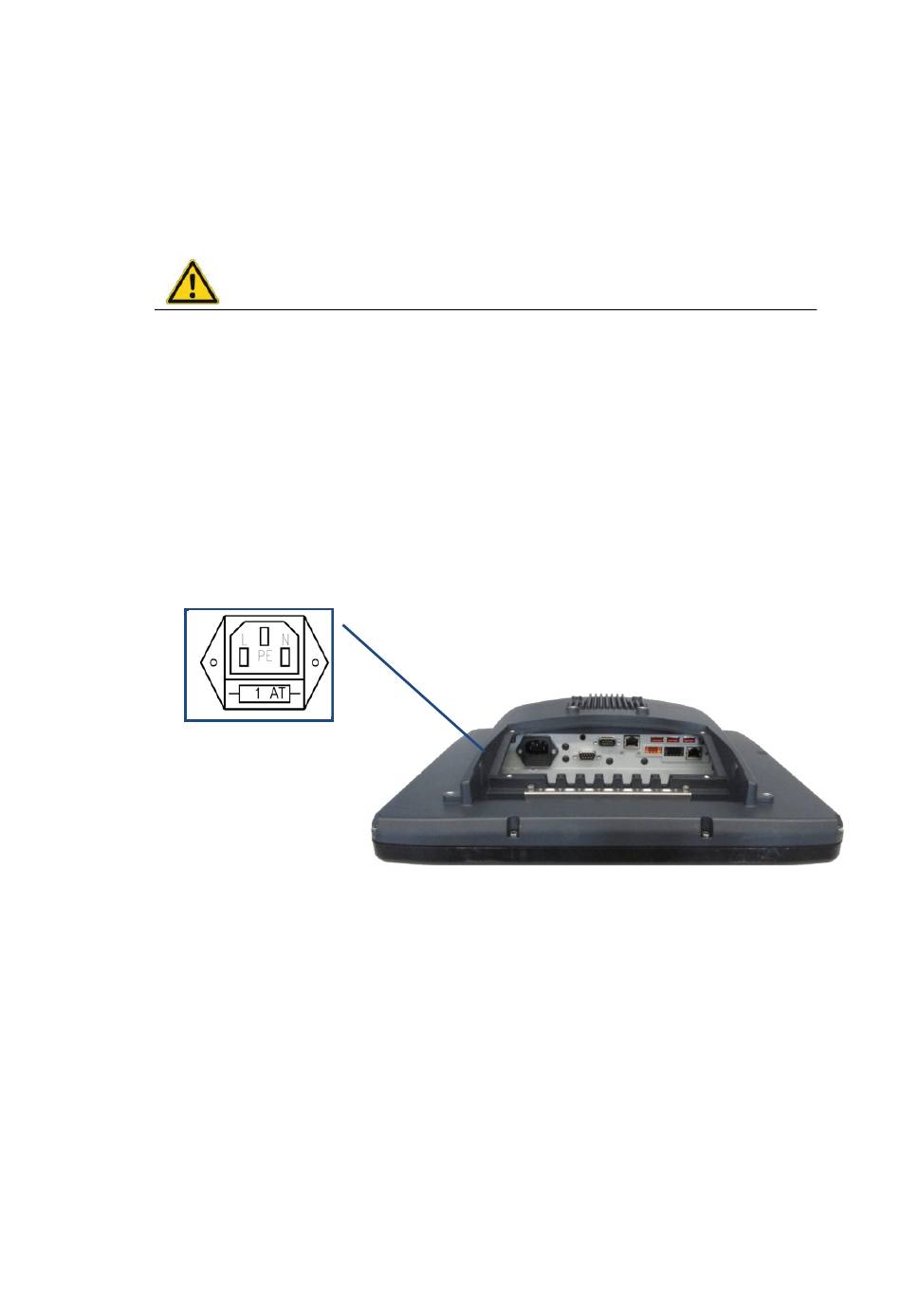

Fig. 5.8: AC power connector with detail view
