16.3.

Pre-converter and power cables (optional)

Available for all DLT-V83 devices with DC power supply unit:
− Preconverter
− DC power cable
Available for the DLT-V8315 with AC power supply unit:
− AC Power cables EU and US
16.4.

Voice Kit (optional)

The optional Voice Kit of the DLT-V83 contains a handheld microphone including speaker and bracket.
The internal speaker of the DLT-V83 is automatically deactivated if the Voice Kit is connected.
The handheld microphone is connected to the Audio/Mic interface of the DLT-V83.
Please use only handsets from "OTTO Communications". Please contact your Advantech sales
representative if needed.

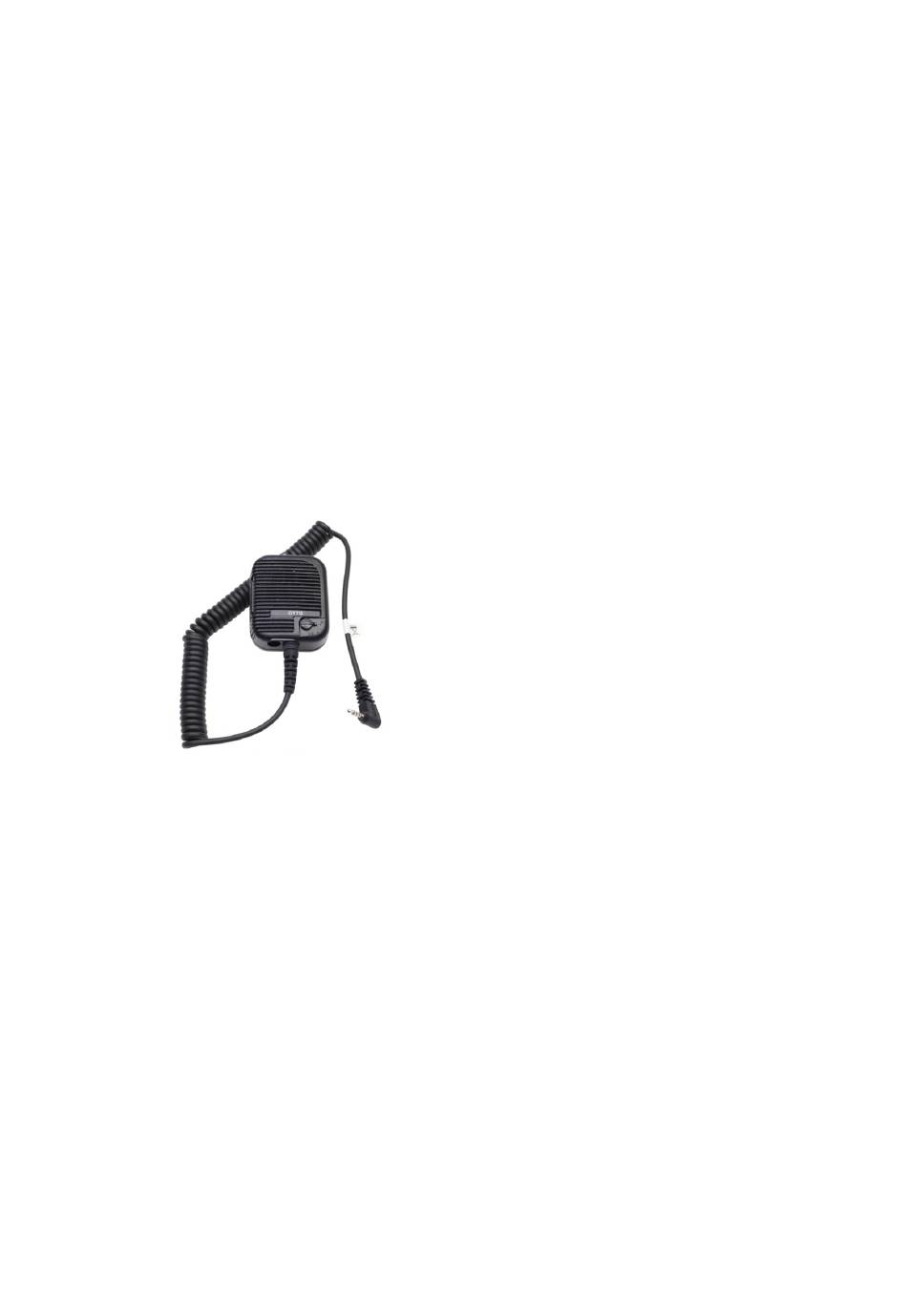

Fig. 16.2: Voice Kit microphone (optional)

Voice Kit configuration under MS-Windows
To configure the voice kit, use the Control Panel menu Audio Settings. In the expanded view, the
internal speaker can be configured as well as the external handset speaker (Expansion) and the
microphone.
With the Mute button it is possible to activate/deactivate the speaker and the microphone individually.
The option Route Micro to Output can be used for testing and sends the microphone signal directly to
the speaker.
