5.1.8.

Device dimensions

DLT-V8310
Dimensions without add-ons (in mm)

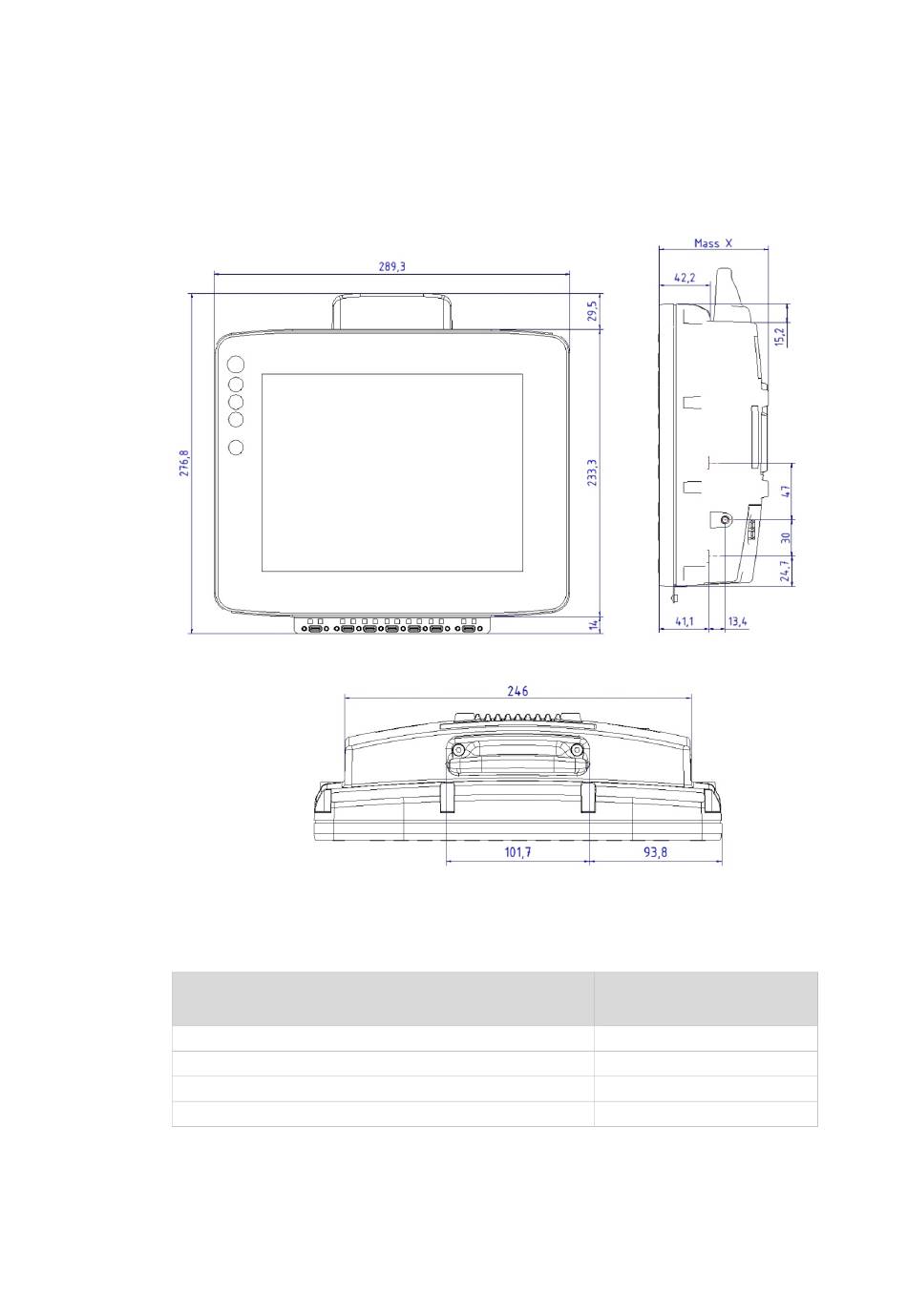

Fig. 5.1: Dimensions DLT-V8310

The building depth of the DLT-V8310 varies depending on the type of touchscreen:
Device type
DLT-V8310 standard resistive touchscreen
DLT-V8310 sunlight readable resistive touchscreen
DLT-V8310 PCT touchscreen
DLT-V8310 with screen-defroster front
DLT-V83 Operating Instructions V2.00
Technical data of the device
Building depth
(Mass X, see figure)
90,0 mm
90,0 mm
91,5 mm
90,7 mm
