8.3.3.

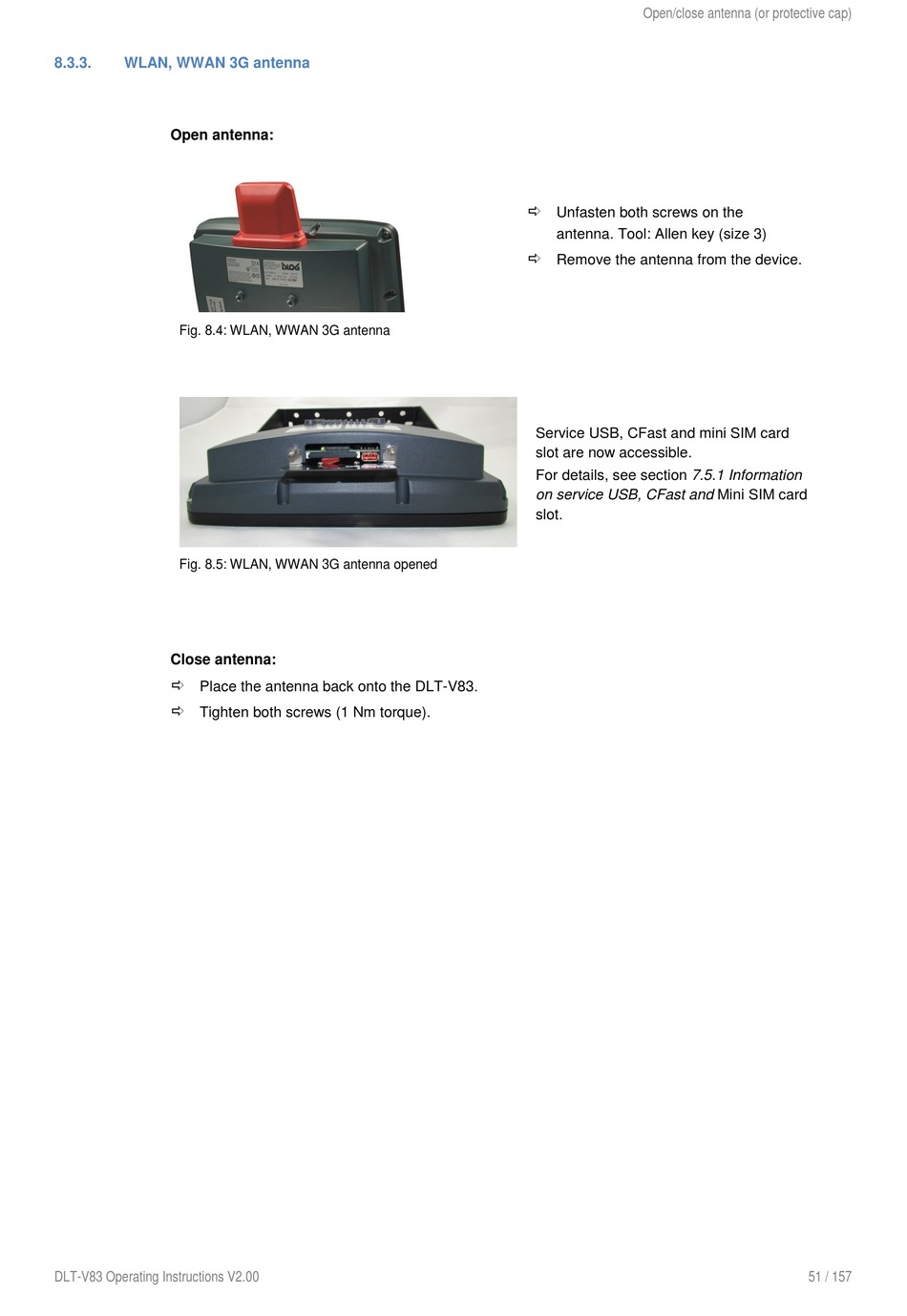

WLAN, WWAN 3G antenna

Open antenna:

Fig. 8.4: WLAN, WWAN 3G antenna

Fig. 8.5: WLAN, WWAN 3G antenna opened

Close antenna:

Place the antenna back onto the DLT-V83.

Tighten both screws (1 Nm torque).
DLT-V83 Operating Instructions V2.00
Open/close antenna (or protective cap)

Unfasten both screws on the
antenna. Tool: Allen key (size 3)

Remove the antenna from the device.
Service USB, CFast and mini SIM card
slot are now accessible.
For details, see section 7.5.1 Information
on service USB, CFast and Mini SIM card
slot.
51 / 157
