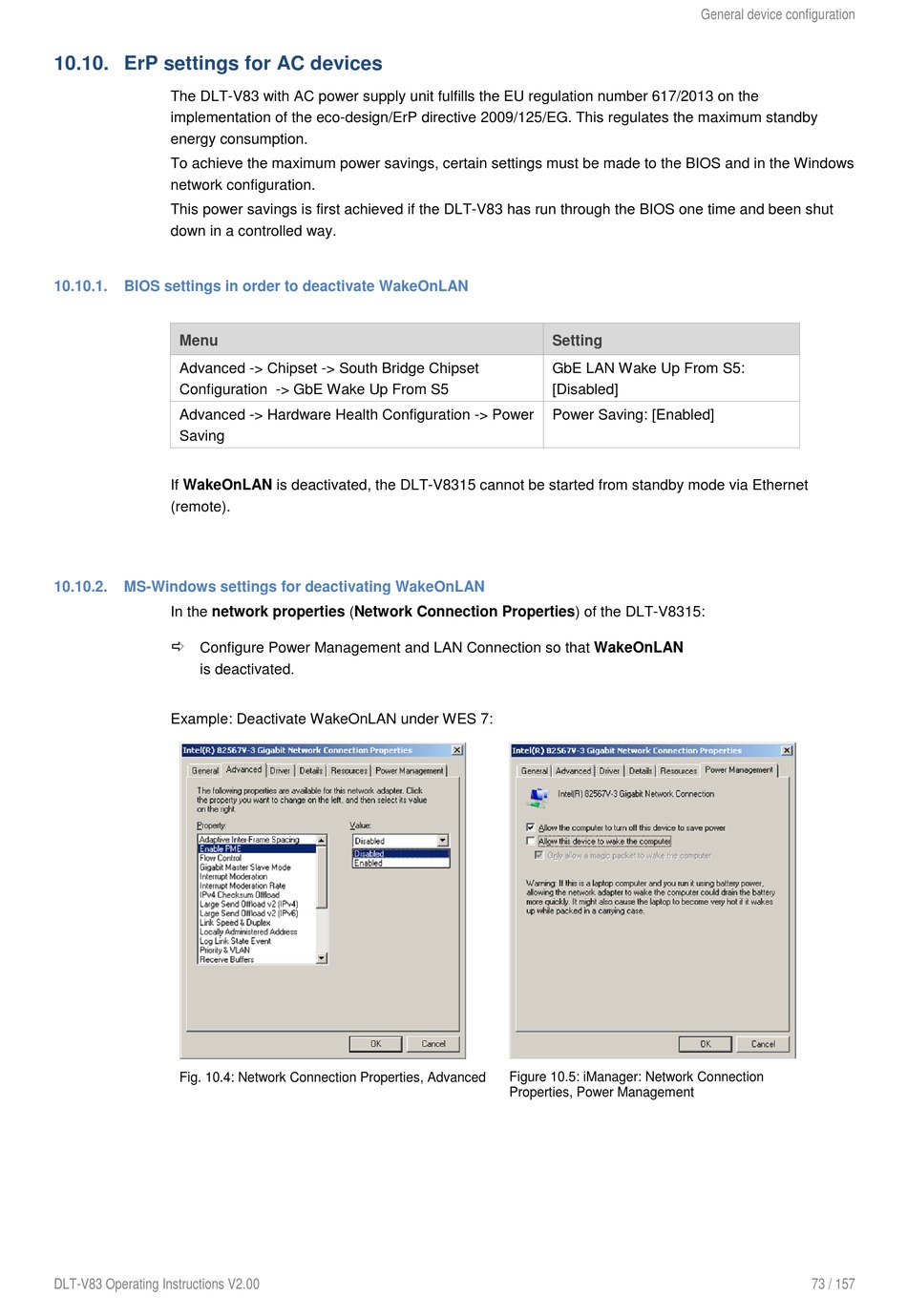

10.10. ErP settings for AC devices

The DLT-V83 with AC power supply unit fulfills the EU regulation number 617/2013 on the
implementation of the eco-design/ErP directive 2009/125/EG. This regulates the maximum standby
energy consumption.
To achieve the maximum power savings, certain settings must be made to the BIOS and in the Windows
network configuration.
This power savings is first achieved if the DLT-V83 has run through the BIOS one time and been shut
down in a controlled way.
10.10.1.

BIOS settings in order to deactivate WakeOnLAN

Menu
Advanced -> Chipset -> South Bridge Chipset
Configuration -> GbE Wake Up From S5
Advanced -> Hardware Health Configuration -> Power
Saving
If WakeOnLAN is deactivated, the DLT-V8315 cannot be started from standby mode via Ethernet
(remote).
10.10.2.

MS-Windows settings for deactivating WakeOnLAN

In the network properties (Network Connection Properties) of the DLT-V8315:
Configure Power Management and LAN Connection so that WakeOnLAN
is deactivated.
Example: Deactivate WakeOnLAN under WES 7:

Fig. 10.4: Network Connection Properties, Advanced

DLT-V83 Operating Instructions V2.00
Setting
GbE LAN Wake Up From S5:
[Disabled]
Power Saving: [Enabled]
Figure 10.5: iManager: Network Connection
Properties, Power Management
General device configuration
73 / 157
