DLT-V8315
Dimensions without add-ons (in mm)

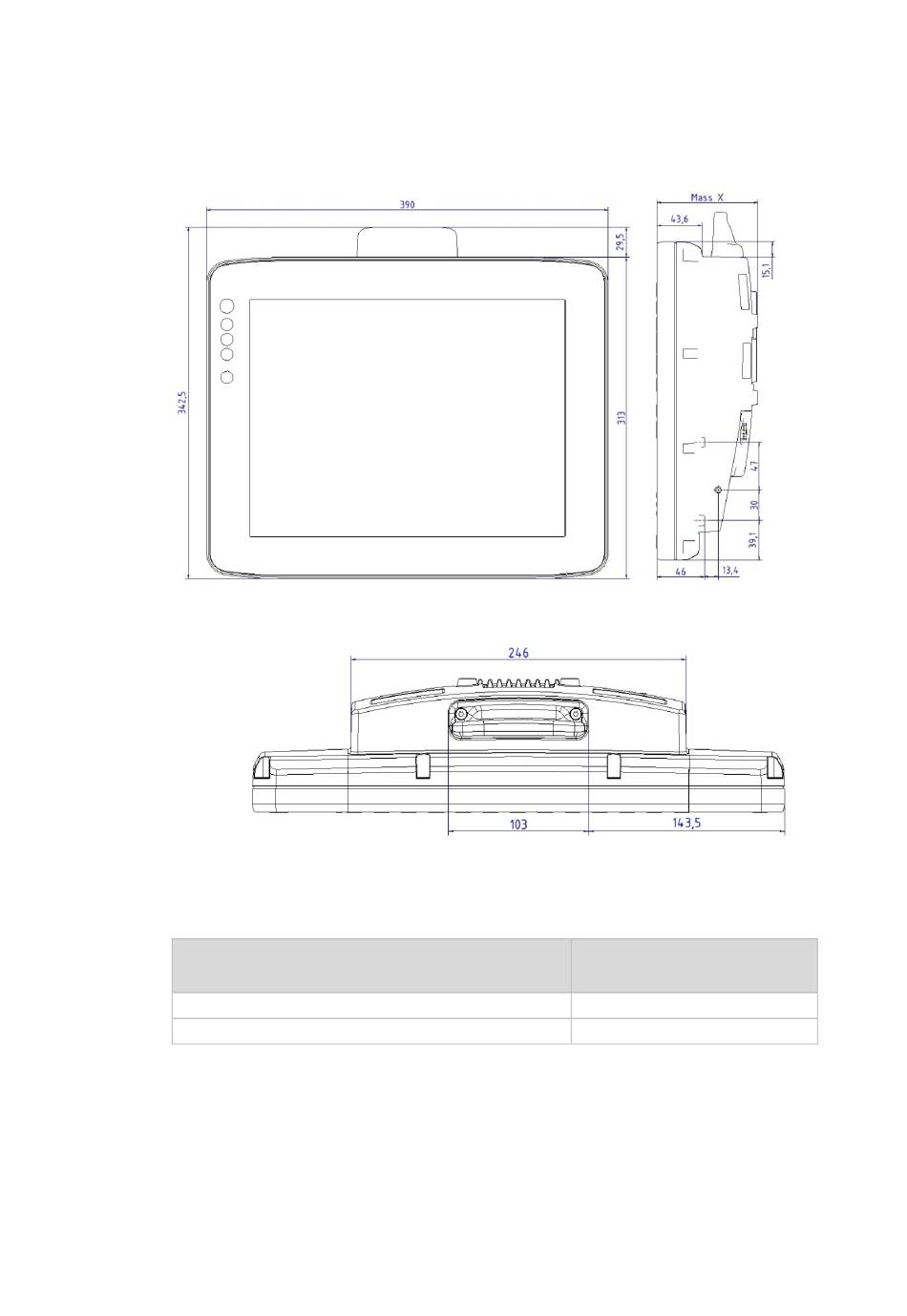

Fig. 5.3: Dimensions DLT-V8315
The building depth of the DLT-V8315 varies depending on the type of touchscreen:
Device type
DLT-V8315 standard resistive touchscreen
DLT-V8315 PCT touchscreen
DLT-V83 Operating Instructions V2.00
Technical data of the device
Building depth
(Mass X, see figure)
98 mm
97 mm
19 / 157
