5.2.

Power supply units, power supply

5.2.1.

Integrated DC power supply unit

DC voltage supply connection
Version: Phoenix Combicon, 3-pin.
External view:

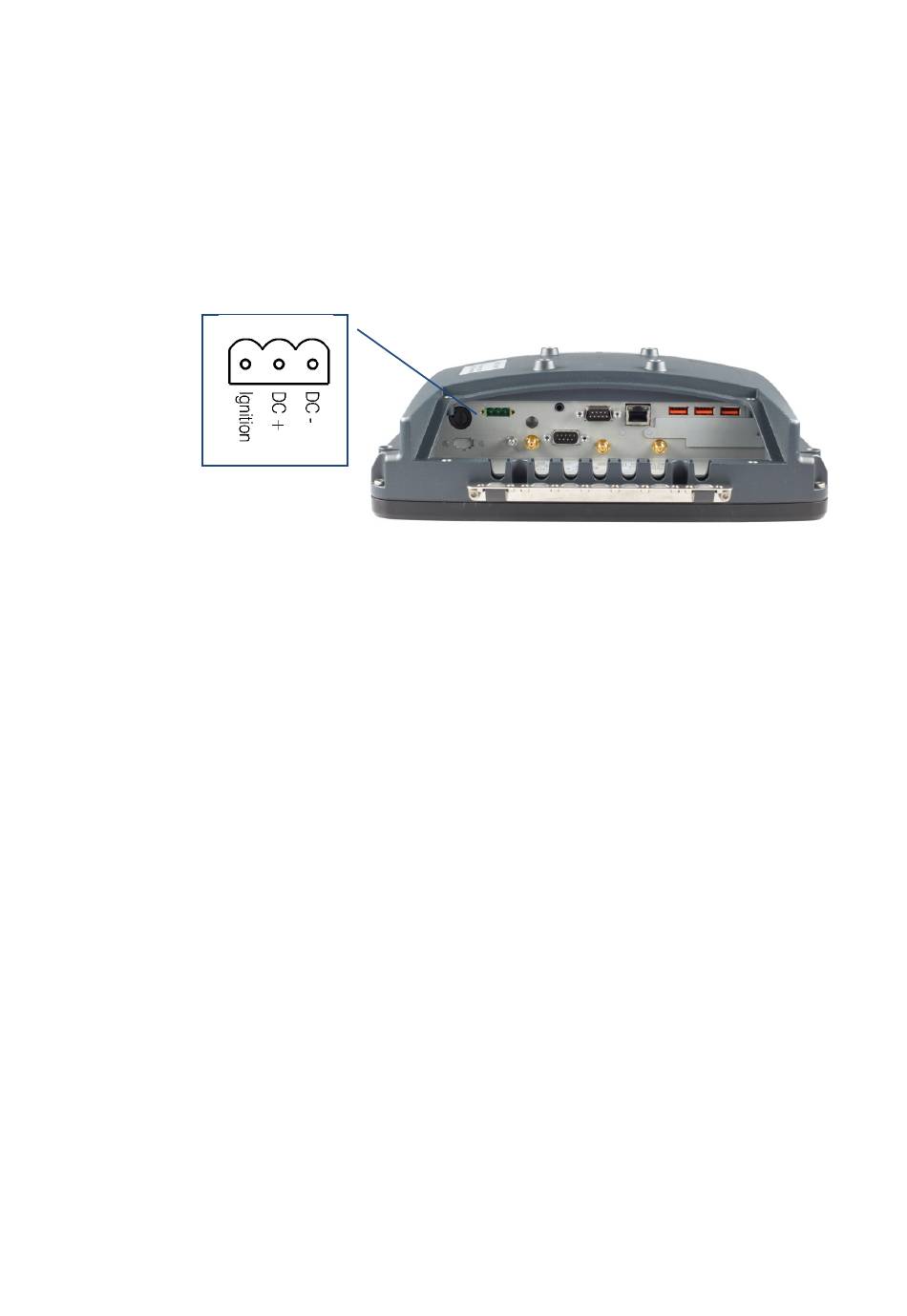

Fig. 5.5: DC power supply connector with connector detail view

Explanation:
"Ignition on" means that a control signal can be routed to this connection (e.g., ignition of a vehicle), that
matches the supply voltage level and is able to supply at least 1 W to the DLT-V83.
The signal reference is DC-.
