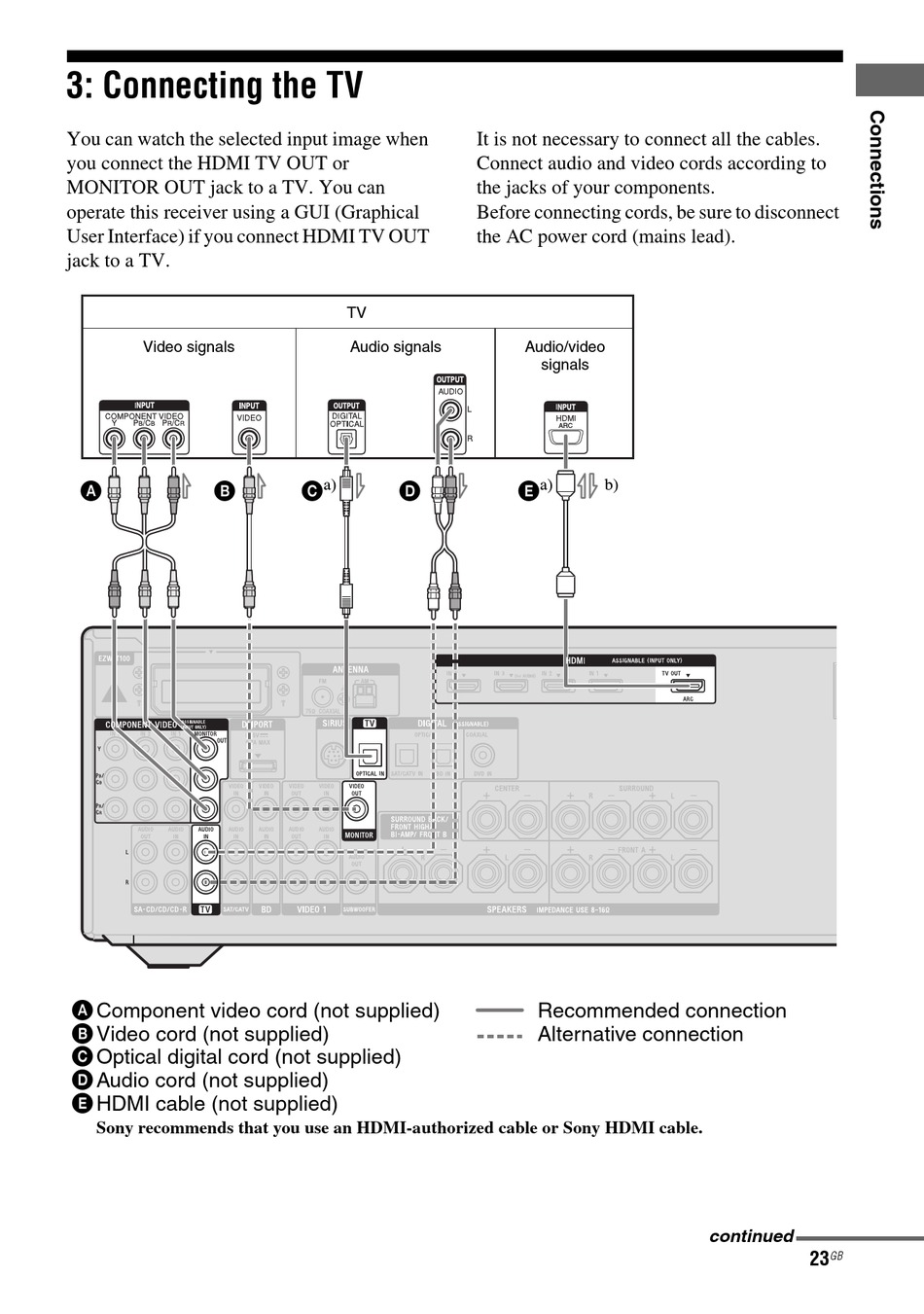

3: Connecting the TV

You can watch the selected input image when
you connect the HDMI TV OUT or
MONITOR OUT jack to a TV. You can
operate this receiver using a GUI (Graphical
User Interface) if you connect HDMI TV OUT
jack to a TV.
Video signals
A B
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Audio cord (not supplied)
E HDMI cable (not supplied)
Sony recommends that you use an HDMI-authorized cable or Sony HDMI cable.
TV
Audio signals
a)
C D
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Before connecting cords, be sure to disconnect
the AC power cord (mains lead).
Audio/video
signals
ARC
a) b)
E
Recommended connection
Alternative connection
