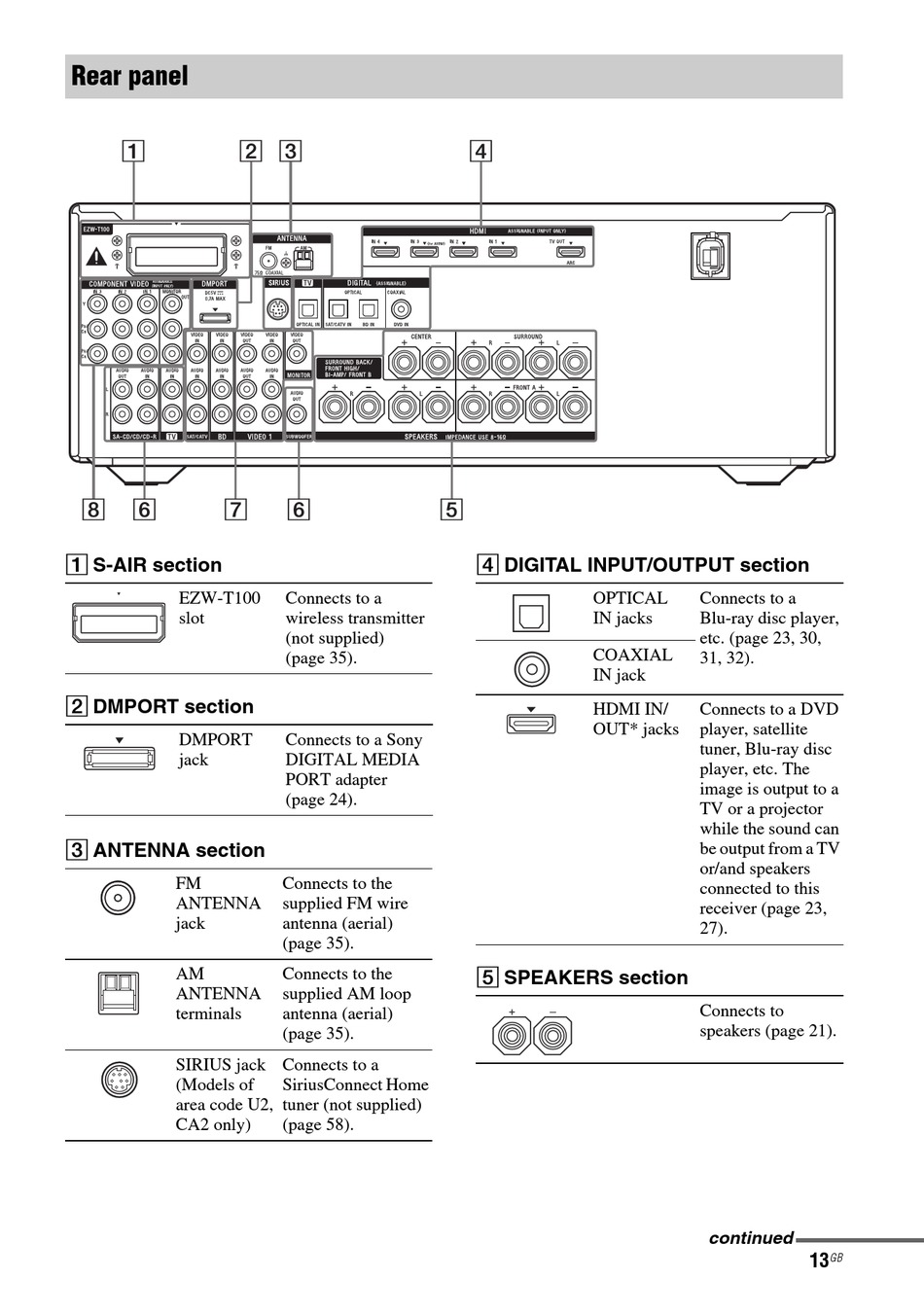

Rear panel

1 2
8 6 7
A S-AIR section
EZW-T100
slot
B DMPORT section
DMPORT
jack
C ANTENNA section
FM
ANTENNA
jack
AM
ANTENNA
terminals
SIRIUS jack
(Models of
area code U2,
CA2 only)
3
6 5
Connects to a
wireless transmitter
(not supplied)
(page 35).
Connects to a Sony
DIGITAL MEDIA
PORT adapter
(page 24).
Connects to the
supplied FM wire
antenna (aerial)
(page 35).
Connects to the
supplied AM loop
antenna (aerial)
(page 35).
Connects to a
SiriusConnect Home
tuner (not supplied)
(page 58).
4
D DIGITAL INPUT/OUTPUT section
OPTICAL
IN jacks
COAXIAL
IN jack
HDMI IN/
OUT* jacks
E SPEAKERS section
Connects to a
Blu-ray disc player,
etc. (page 23, 30,
31, 32).
Connects to a DVD
player, satellite
tuner, Blu-ray disc
player, etc. The
image is output to a
TV or a projector
while the sound can
be output from a TV
or/and speakers
connected to this
receiver (page 23,
27).
Connects to
speakers (page 21).
continued
