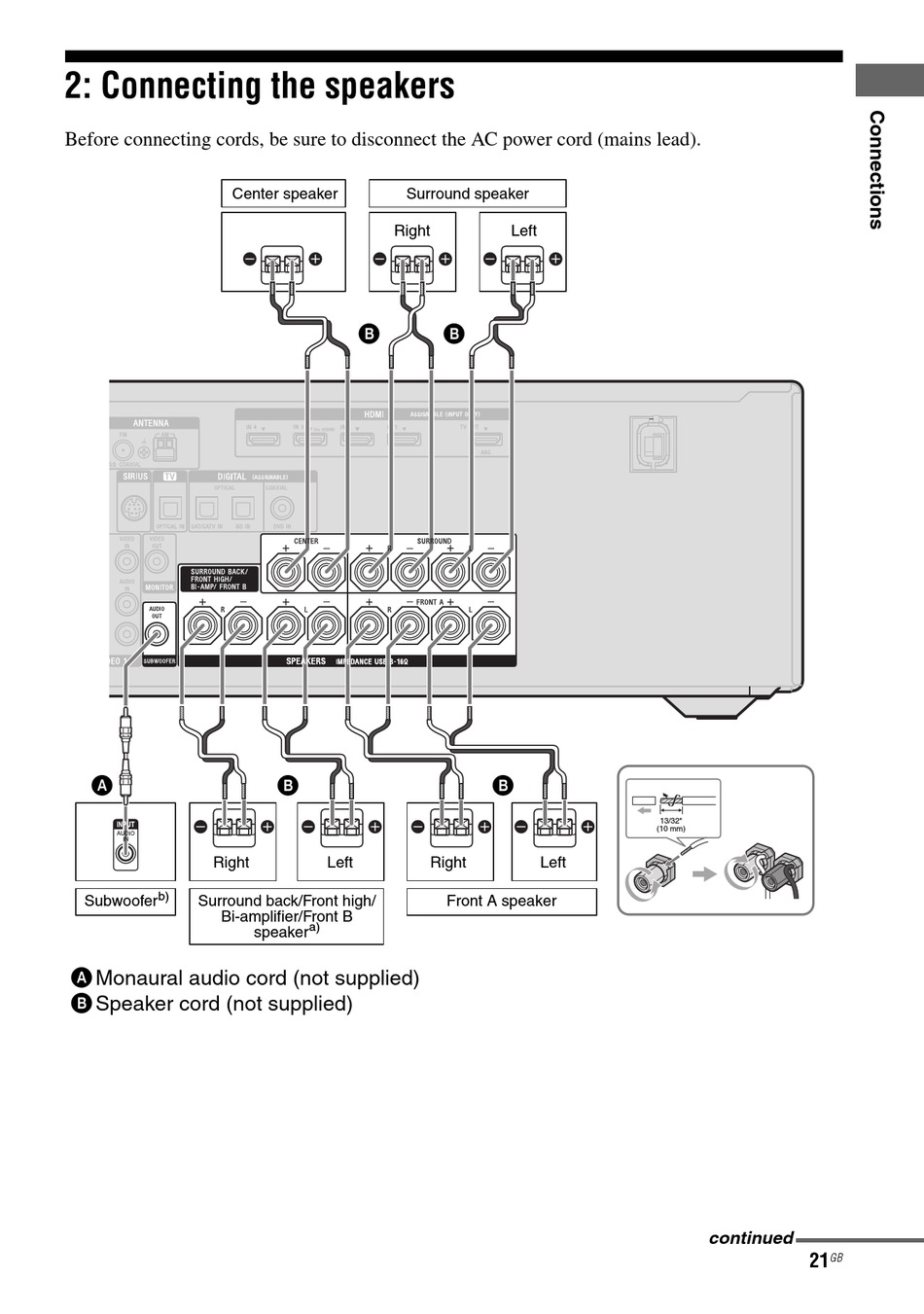

2: Connecting the speakers
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
Center speaker
A
Right
b)
Subwoofer
Surround back/Front high/
Bi-amplifier/Front B
A Monaural audio cord (not supplied)
B Speaker cord (not supplied)
Surround speaker
Right
B
B
Left
a)
speaker
Left
B
B
Right
Left
Front A speaker
13/32"
(10 mm)
continued
