Boom Wiring Diagram - ODB LCT6000 Owner's Manual

Green
White
Purple
Red (4 gauge cable)
Black (4 gauge cable)
Black (from up down switch)
ODB COMPANY
Service Section

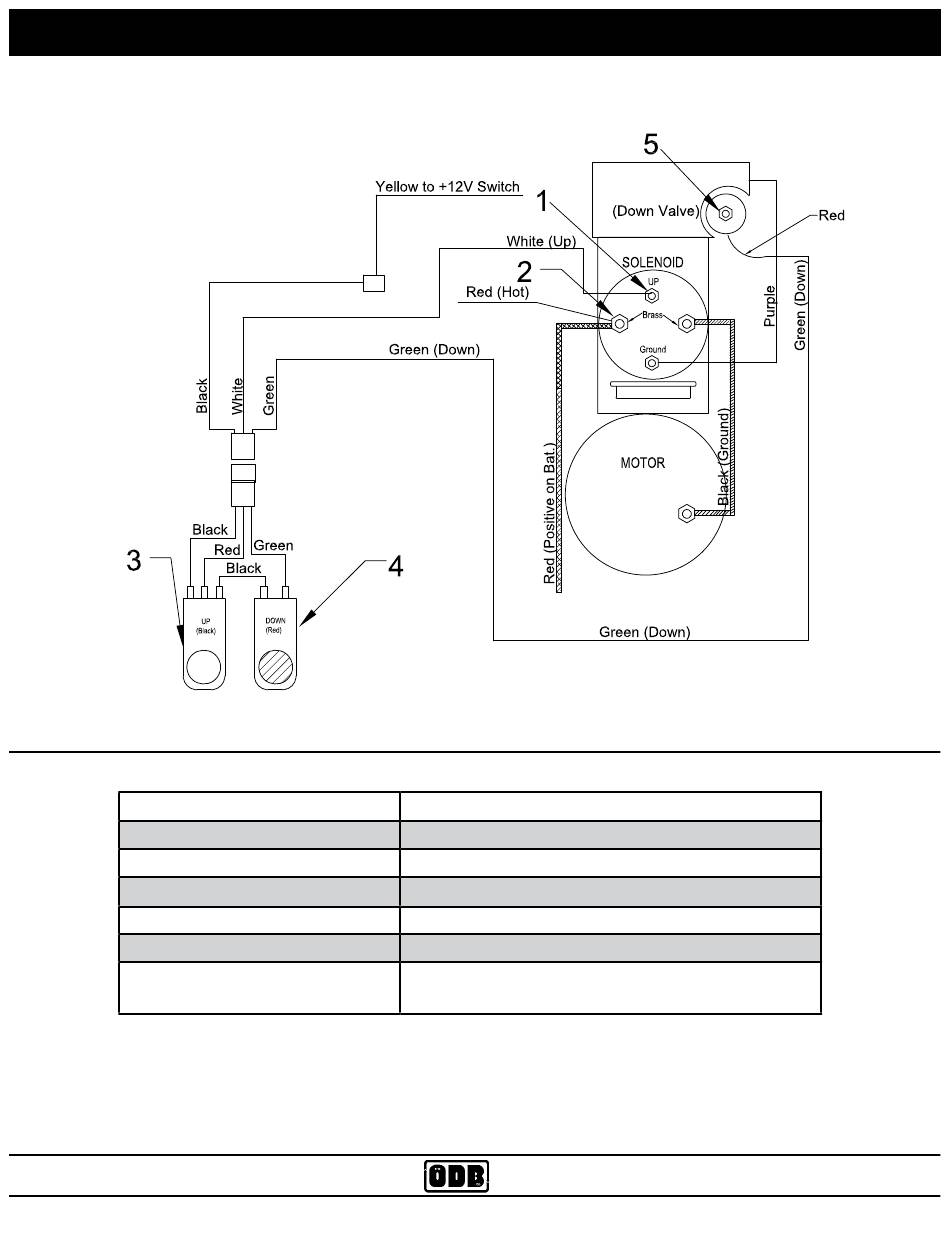

5.10.7 Boom Wiring Diagram

COLOR FUNCTION
Down
Up
Ground on Solenoid
Positive to Battery
Ground from Solenoid to Hydraulic Motor
changes to Yellow - Positive for Boom Rocker
Switch on instrument panel (if equipped)
800-446-9823
77
LCT6000
