Hinged Boom Frame Assembly - Chain Drive - ODB LCT6000 Owner's Manual

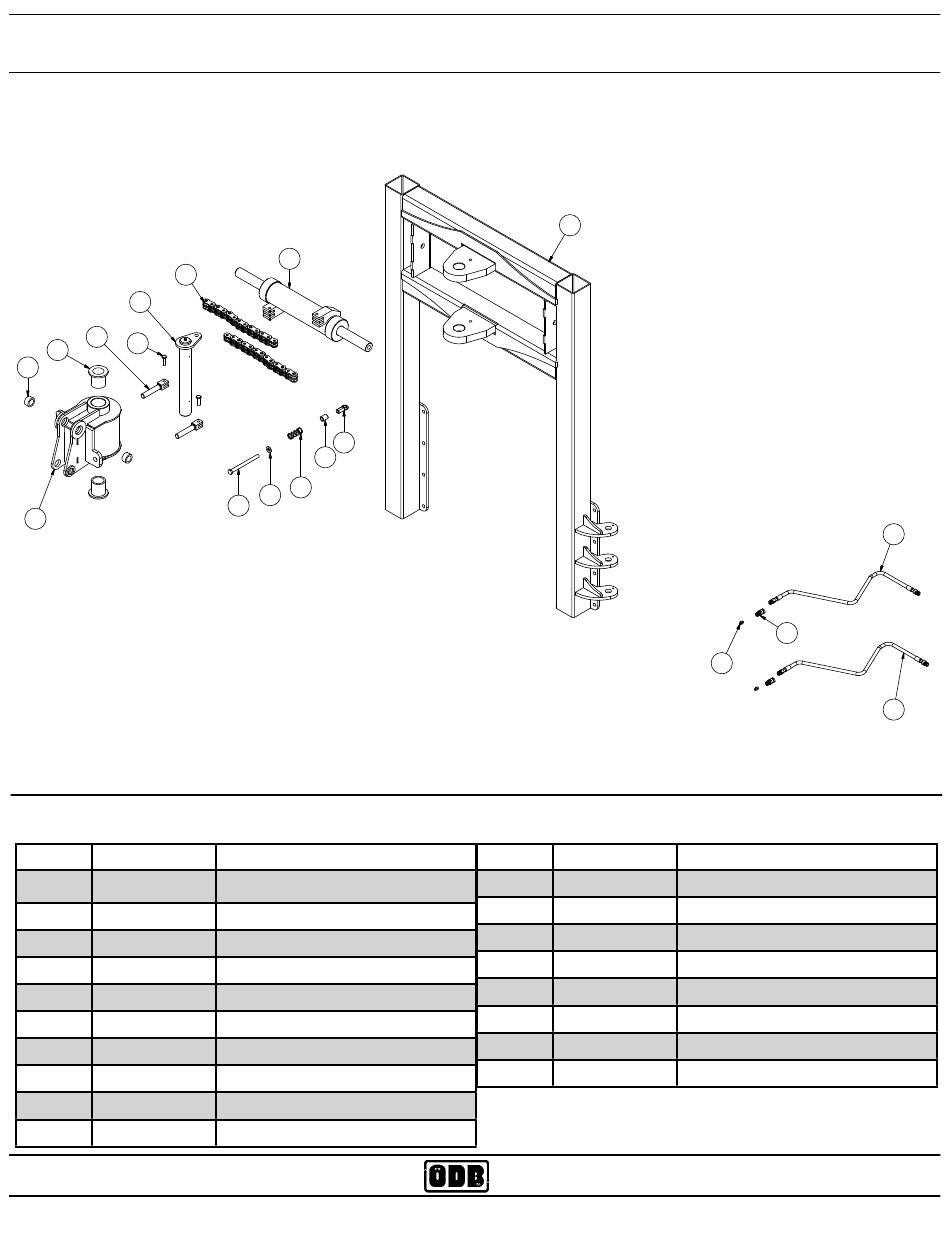

11.7 Hinged Boom Frame Assembly - Chain Drive

3
9
4
5
8
7
6
ITEM# PART NO.
1 600.600C
2 550.1820
3 550.1801
4 550.1800
5 550.1800.B
6 550.1812
7 8X.002E
8 550.1812.B
9 550.1813
10 550.1808B
ODB COMPANY
2
14
13
12
11
10
DESCRIPTION
Frame
Cylinder
Chain
Connector
Pin
Boom Swivel
Bushing
Swivel Bushing
Swivel Pin
Bolt
1
ITEM# PART NO.
11 550.1808D
12 550.1808
13 550.1808C
14 550.1809
15 450.1412
16 450.1411
17 Call
18 Call
800-446-9823
19
15
16
DESCRIPTION
Washer
Spring
Spacer
Rod End Ball Joint
Grease Zerk
Fitting
Grease Hose
Grease Hose
LCT6000
17
18
