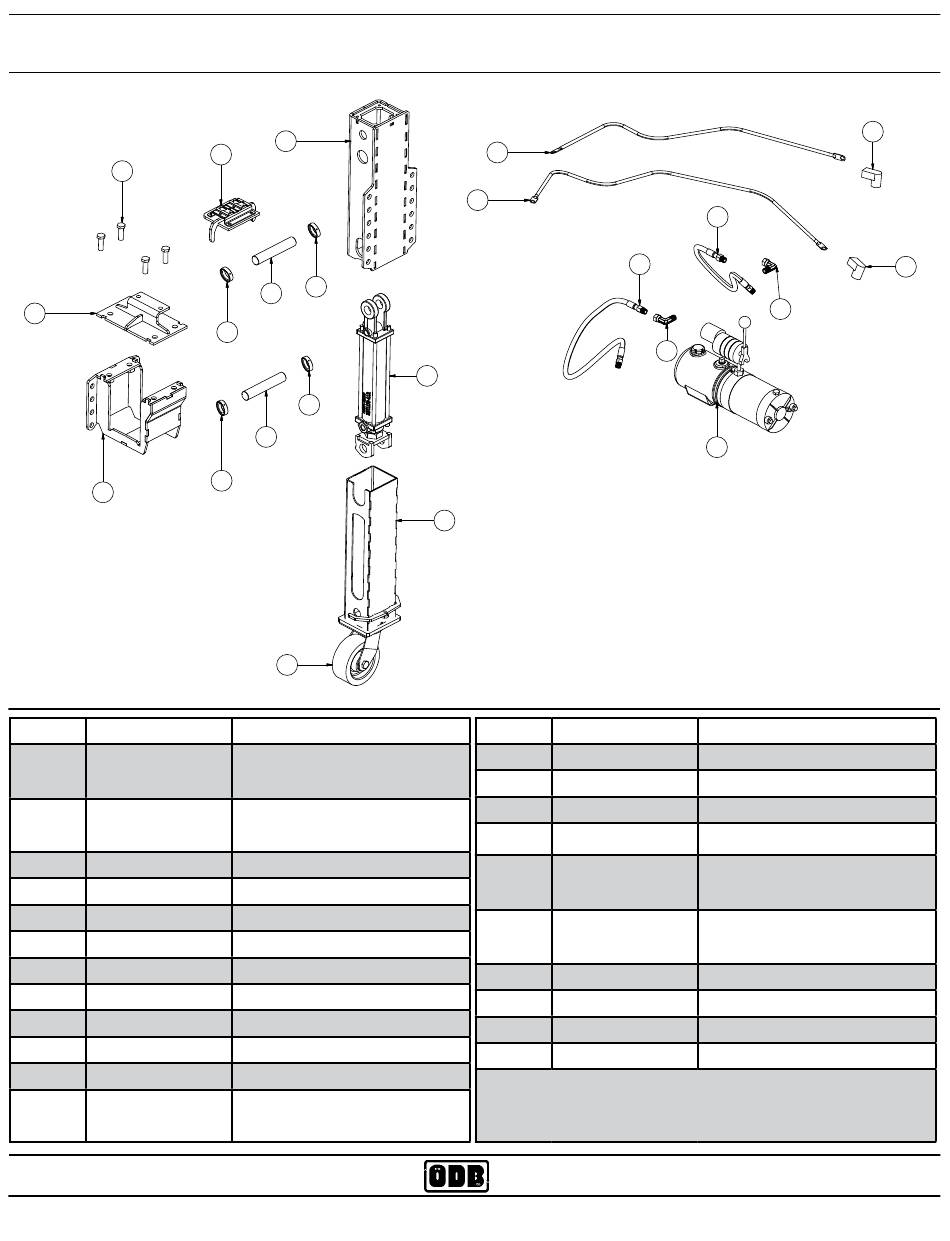

9.4 Hydraulic Parking Jack - OPTIONAL

11
9
10
ITEM# PART NO.
* LCT622.624H1
* LCT622.624H2
1 STD.9001
2 STD.9002
3 STD.9003
4 STD.9014
5 STD.9006
6 STD.9004
7 STD.9005
8
9 STD.9008*
10 STD.9007
6000.9007
ODB COMPANY
LCT60C/ 600 / 6000 / 650 - optional - Nov. 2006 and after
1
8
5
6
5
5
7
5
3
DESCRIPTION
Hyd. Parking Jack Assembly
incl. all below except#1-10
Hyd. Parking Jack Assembly
complete (includes 1-19)
Outer Tube
Inner Tube
Caster Assembly
Cylinder
Lock Collars
Top Pin
Bottom Pin
Outer Tube Top
Clamp Top
Clamp Bottom, 600/800/650
Clamp Bottom, 6000
18
17
4
2
ITEM# PART NO.
11 5CZ.500.1.5
12 MPM310
13 80.1552
14 80.1552
15 STD.9009
STD.9009B
16 STD.9010
STD.9010B
17 STD.9012
18 STD.9013
19 65.1306
20 65.1307
Notes: *#8,9 not used on 2/3 axis units
* #11-13,16-19 not used on 2/3 axis units
* will work on older units(use LCT622.624H2)
800-446-9823
16
15
14
13
12
DESCRIPTION
Clamp Bolts
Hydraulic Pump
Fitting, 90 degree
Fitting, 90 degree
Hydraulic Hose, Top
Hydraulic Hose, Top 2/3X
Hydraulic Hose, Bottom
Hydraulic Hose, Bttm 2/3x
Battery Cable, Red
Battery Cable, Black
Stud Cover, Red
Stud Cover, Black
LCT6000
20
19
