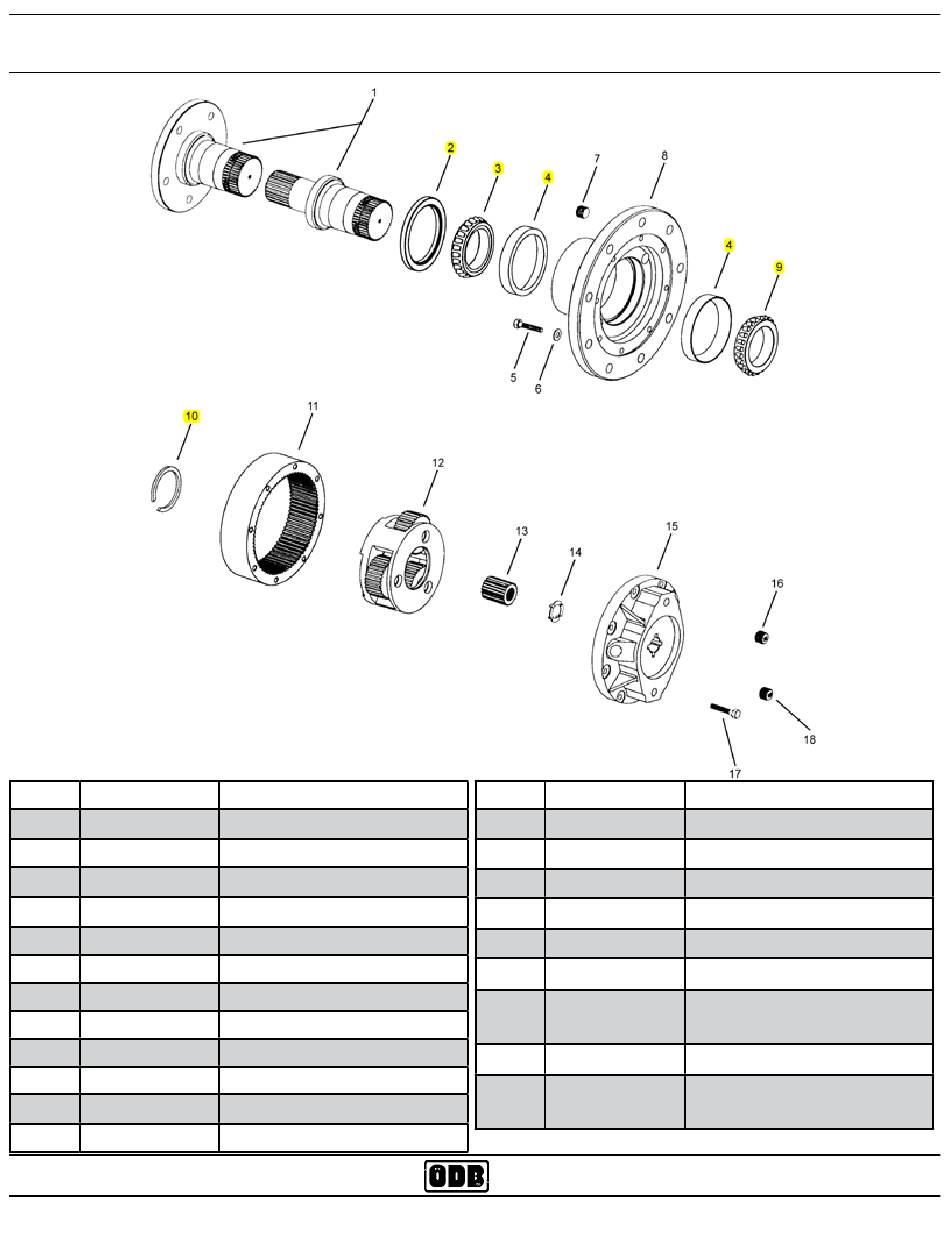

11.6 Auburn Gear Drive Assembly - 3 Axis

ITEM # PART #
1
2 14-00-044-010
3 14-01-101-35
4 14-01-102-12
5
6
7 03-04-101-09
8
9 04-01-101-17
10 14-02-410-003
11
12
ODB COMPANY
3 Axis units May 2010 and after
DESCRIPTION
Output Shaft or Spindle
Oil Seal
Bearing Cone
Bearing Cup
Hex Head Bolt (grade 8)
Flat Washer
Pipe Plug
Hub
Bearing Cone
Retaining Ring Kit
Ring Gear
Carrier Assembly
ITEM # PART #
13
14
15
16 14-00-052-002
17
18 03-04-101-01
* 641008
* 641017
* 618318
618318.N
800-446-9823
DESCRIPTION
Sun Gear
Thrust Washer
Cover
Magnetic Plug
Hex Head Bolt
Pipe Plug
Bearing and Seal Kit,
includes #2,3,4,8 and 10
Seal Kit, includes #2 & #10
Gear Bolt
Nut
LCT6000
