Engine Rocker Switch Wiring Diagrams - ODB LCT6000 Owner's Manual

Strobe Light Rocker Switch
Remote Throttle and Remote Clutch Rocker Switch
ODB COMPANY
Service Section

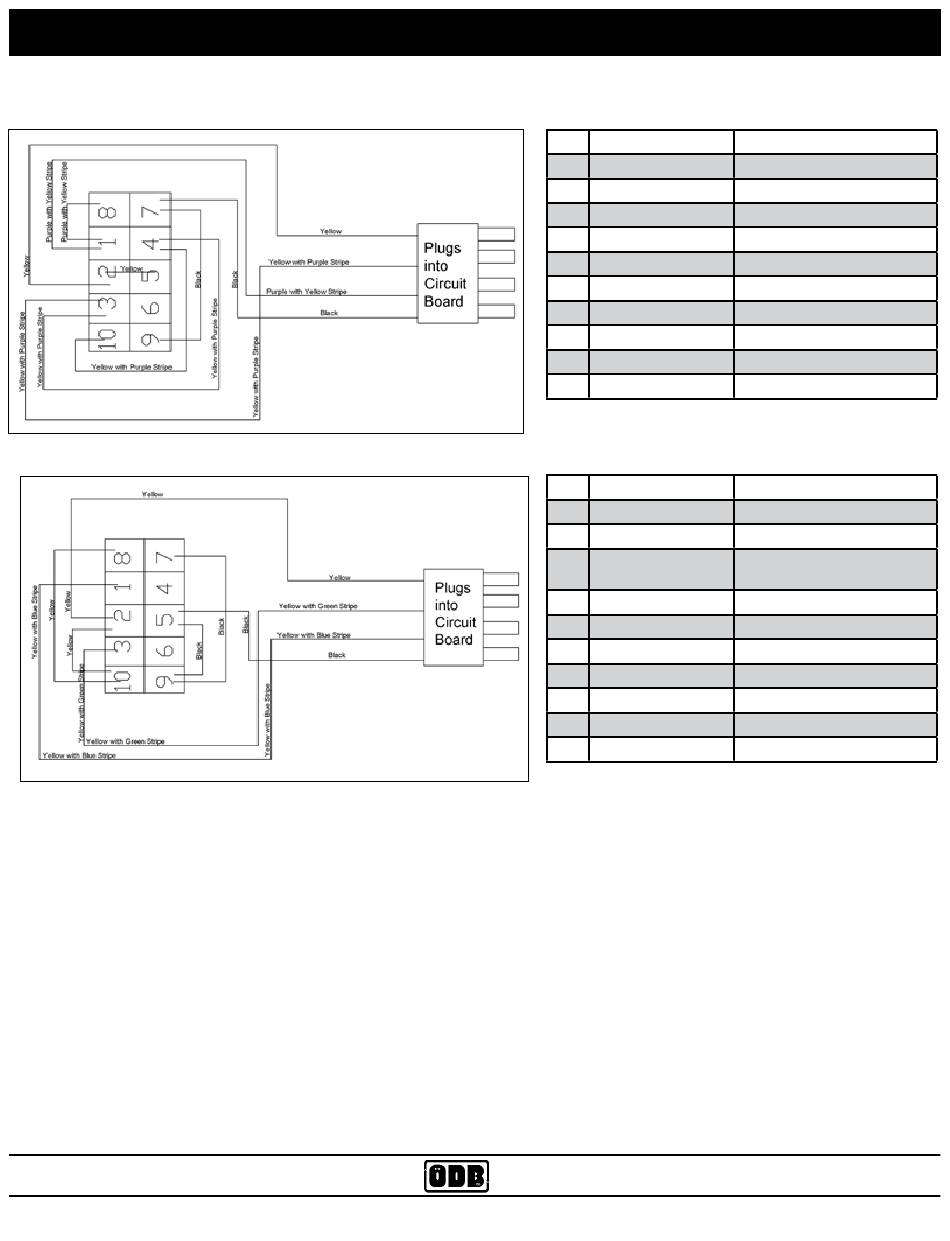

5.10.3 Engine Rocker Switch Wiring Diagrams

PIN# COLOR
1 Purple w/Yellow Str
2 Yellow
3 Yellow w/Purple Str
4 Yellow w/Purple Str
5 Yellow
6
7 Black
8 Purple w/Yellow Str
9 Black
10 Yellow w/Purpe Str
PIN# COLOR
1 Yellow w/Blue Stripe Throttle Fast / Clutch Engage
2 Yellow
3 Yellow w/ Green
Stripe
4
5 Black
6
7 Black
8 Yellow
9 Black
10 Yellow
This plug is used for the Remote Throttle and the
Remote Clutch Rocker Switches.
800-446-9823
DESCRIPTION
"+" Aux from Switch
"+" from Circuit Board
"+" from Strobe Light
Looped from #3
Looped from #2
"-" from Circuit Board
Looped from #1
Looped from #7
Looped from #4
DESCRIPTION
"+" from Circuit Board
Throttle Slow
/ Clutch Disengage
"-" from Circuit Board
Looped from #9
Looped from #10
Looped from #5
Looped from #2
73
LCT6000
