ODB LCT6000 Owner's Manual
  1. Manuals
  2. Brands
  3. ODB Manuals
  4. Blower
  5. LCT6000
  6. Owner's manual

ODB LCT6000 Owner's Manual

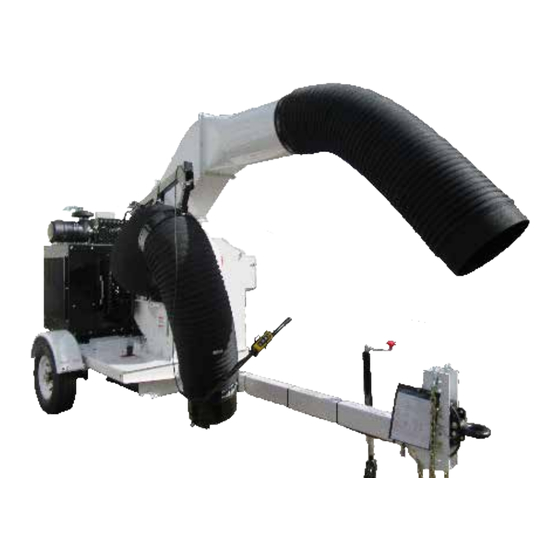

Belt driven leaf collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

LCT6000
Belt Driven Leaf Collector
Belt Driven Leaf Collector
Owner's Manual
Safety Manual
Pre-Operating Manual
Operating Manual
Maintenance Manual
Service Manual
Parts Catalog
2018 Edition
ODB Company
5118 Glen Alden Drive
Richmond, VA 23231
800-446-9823
LCT6000
www.leafcollector.com
816210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCT6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ODB LCT6000

Summary of Contents for ODB LCT6000

  • Page 1 LCT6000 Belt Driven Leaf Collector Belt Driven Leaf Collector Owner's Manual Safety Manual Pre-Operating Manual Operating Manual Maintenance Manual Service Manual Parts Catalog 2018 Edition ODB Company 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823 LCT6000 www.leafcollector.com 816210...
  • Page 2 READING AND UNDERSTANDING THIS MANUAL IF YOU HAVE ANY QUESTIONS CONCERNING THE INSTALLATION OR OPERATION OF THIS UNIT, PLEASE CALL ODB FOR ASSISTANCE BEFORE ATTEMPTING TO REPAIR OR OPERATE THE UNIT. IMPROPER USE OF ANY MACHINE CAN RESULT IN SERIOUS INJURY!
  • Page 3 Read and understand this entire manual before operating, maintaining or repair- ing the leaf vacuum. If the decal above is missing or damaged call ODB immediately and we will send you a replacement free of charge. Never operate a unit with damaged or missing safety decals.
  • Page 4 THANK YOU Thank you and Congratulations on your puchase of your ODB Leaf Collector. Your ODB leaf col- lector has been carefully designed and manufactured to give you a maximum amount of dependabil- ity and years of trouble-free operation. Take comfort in the fact the ODB has been manufacturing municipal products since 1910 and takes pride in our product's quality and our customer service.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Read and understand this entire manual before operating, maintaining or repairing the leaf vacuum. Table of Contents Contents LCT6000 Table of Contents 1.0 GENERAL SAFETY 1.1 Safety Symbol Definitions ........................10 1.2 Do’s and Do Not’s:..........................11 1.3 Training: ..............................13 1.4 Safety Decals ............................14...
  • Page 6 7.8 Kraft Fluid Drive Common Parts (Optional) ....................96 8.0 BLOWER HOUSING GROUP 8-0 ..................................97 8.1 Blower Housing Group ..........................98 8.2 Blower Housing Face Group - LCT6000 ....................99 8.3 Belt Drive Assembly ..........................100 ODB COMPANY 800-446-9823...
  • Page 7 11.6 Auburn Gear Drive Assembly - 3 Axis ..................... 121 11.7 Hinged Boom Frame Assembly - Chain Drive ..................122 11.8 2 Axis Valve Body ............................. 123 11.9 3 Axis Valve Body ............................. 124 INDEX Index ................................. 126 ODB COMPANY 800-446-9823 LCT6000...

  • Page 8: Table Of Contents

    Read and understand this entire manual before operating, maintaining or repair- ing the leaf vacuum. General Safety 1.0 GENERAL SAFETY Contents LCT6000 Table of Contents 1.0 GENERAL SAFETY 1.1 Safety Symbol Definitions ................10 1.2 Do’s and Do Not’s:..................11 1.3 Training: ......................13 1.4 Safety Decals ....................
  • Page 9 Read and understand this entire manual before operating, maintaining or repair- ing the leaf vacuum. If the decal above is missing or damaged call ODB immediately and we will send you a replacement free of charge. Never operate a unit with damaged or missing safety decals.

  • Page 10: Safety Symbol Definitions

    Disregarding this safety warning WILL result in serious equipment damage, injury or possible death. Disregarding this safety warning CAN result in serious equipment damage, in- jury or possible death. Disregarding this safety warning MAY result in minor or moderate injury or property damage. ODB COMPANY 800-446-9823 LCT6000...

  • Page 11: Do's And Do Not's

    18. DO NOT operate unit if fuel is spilled or with fuel cap off. 19. DO NOT smoke or weld near the unit. 20. DO NOT run engine in an enclosed area. 21. DO NOT place hands or feet near moving or rotating parts. ODB COMPANY 800-446-9823 LCT6000...
  • Page 12 Wash Hands after handling Engine Exhaust, some its constituents and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth de- fects or other reproductive harm. ODB COMPANY 800-446-9823 LCT6000...

  • Page 13: Training

    SAFETY PRECAUTIONS 1.3 Training: Improper use of the ODB leaf collector CAN result in severe personal injury or death. All personnel using this leaf vacuum must be trained and qualified with all the operations, maintenance, repair and safety procedures defined in this manual.

  • Page 14: Safety Decals

    200182 Danger--Do Not Open Cover While in Operation 200179 Danger--Do Not Ride, Sit or Stand on Unit 200181 Danger--Head, Eye and Ear Protection Required 200221 LCT6000 Leaf Collector sticker 200109 Do Not Over-Lubricate bearings 200055 Use Diesel Only 200177 Danger--Flammable...
  • Page 15 SAFETY PRECAUTIONS 1.4 Safety Decals - Decal Layout for LCT60C/600/650/6000 ODB COMPANY 800-446-9823 LCT6000...

  • Page 16: Vin And Serial Number Locations

    Gross Axle Weight Rating which is the maximum al- lowable weight the axles are designed to carry. The tire inflation pressure is also on the sticker. Serial Number Tag VIN Number Tag Tire and Load Information ODB COMPANY 800-446-9823 LCT6000...

  • Page 17: Pre-Operating Section

    2.1 Instrument and Controls: ................18 2.2 Safe Operations: ..................... 21 2.3 Preparation For Operation ................23 2.4 Pre-Transport Checks ..................24 2.5 Personal Protective Equipment and Clothing ..........26 2.6 Work Site Preparation ..................27 ODB COMPANY 800-446-9823 LCT6000...

  • Page 18: Instrument And Controls

    *Recycle Key to the OFF position after changing a setting* Main Menus >Active Engine Fault Codes View/Scroll Active Codes Always make sure the PTO is disen- gaged before starting unit. >Stored Engine Fault Codes View/Scroll Stored Fault Codes >Engine Parameters ODB COMPANY 800-446-9823 LCT6000...
  • Page 19 Press Up▲ arrow button and Down▼ arrow button to change setting >Controller Set Press Enter◄ button to make selection, brackets dissapear Input Configuration Throttle Configuration *Recycle Key to the OFF position after changing a set- Module Configuration ting* CAN Configuration MOD bus Configuration ODB COMPANY 800-446-9823 LCT6000...
  • Page 20 Oil / Fuel Transmit >MOD bus Configuration Baud Rate Parity Stop Bits Slave Address Enable Gauges Tachometer Range Engine Oil Tempertature Range Transmission Oil Temperature Range To access the controller setup menus (Configuration Menus), a password is required ODB COMPANY 800-446-9823 LCT6000...

  • Page 21: Safe Operations

    3. A record of mental stability with no history of epileptic seizures, dizziness, or any other disability that may result in injury to himself or others. If any of these requirements are not satisfied at any time, the person failing to meet these requirements MUST NOT OPERATE THIS EQUIPMENT. ODB COMPANY 800-446-9823 LCT6000...
  • Page 22 7. Operators must not be under the direct or indirect influence of alcohol and/or drugs. This includes prescription drugs that could cause drowsiness, dizzi- ness, or any other condition that would impair their ability to operate or use this equipment in a safe manner. ODB COMPANY 800-446-9823 LCT6000...

  • Page 23: Preparation For Operation

    9. Check all guards to ensure they are undamaged, in place and properly secured. 10. All decals must be in place and legible prior to operating the leaf vacuum. See the decal section for decal replacement. ODB COMPANY 800-446-9823 LCT6000...

  • Page 24: Pre-Transport Checks

    6. Ensure that the safety breakaway switch is functioning properly and attached securely to the tow vehicle. Allow enough slack to ensure that vehicle turns will not activate the safety breakaway switch. NOTE: Follow manufacturers procedure to ensure tow vehicles brake control box is properly adjusted. ODB COMPANY 800-446-9823 LCT6000...
  • Page 25 10. Verify there are no loose tools or materials on the trailer, inside the intake and exhaust hoses, or inside the engine sheet metal. 11. Check all cones, wheel-chocks, signs or other support tools and materials to ensure proper stowage. ODB COMPANY 800-446-9823 LCT6000...

  • Page 26: Personal Protective Equipment And Clothing

    8. Steel Toed Boots: should be worn to protect the feet. Work clothes MUST be close fitting, but not restrictive of movement, without any loose parts that could be entangled in any parts of the leaf vacuum. This includes items such as jewelry, chains and backpacks. ODB COMPANY 800-446-9823 LCT6000...

  • Page 27: Work Site Preparation

    DO NOT allow pedestrians, children or animals near the work area. 7. Make sure that the exhaust hose (if equipped) fits properly into the box container so that all debris is blown into the box container. ODB COMPANY 800-446-9823 LCT6000...

  • Page 28: Operating Section

    3.4 Engine Controller-Alarms & Codes Cont............. 36 3.5 Engine Controller- Digital Inputs ................. 40 3.6 Engine Controller- Pin Out ................... 41 3.7 Engaging the PTO ....................42 3.8 Fluid Drive Coupler (if equipped) ................ 44 3.9 Vacuuming Leaves ....................45 ODB COMPANY 800-446-9823 LCT6000...

  • Page 29: Starting Engine

    Down Buttons adjusts engine speed between the selected multistate speed selections. 3) High/Low Engine Accelerates to the Max Speed Setting with the Up button pressed. When the Up button is released, the engine goes back to idle speed. ODB COMPANY 800-446-9823 LCT6000...
  • Page 30 7. IMPORTANT: To assure proper lubrication, operate the engine at or below 1200 rpm with no load for 1 -2 minutes. Extend this period 2 - 4 minutes when operating at temperatures below freezing. figure 3a ODB COMPANY 800-446-9823 LCT6000...

  • Page 31: Engine Controller-Installation

    (such as a starter or glow plug circuit), it is necessary to install a slave relay that is diode protected into the circuit. Controls, Inc. can provide any necessary slave relays. ODB COMPANY 800-446-9823...

  • Page 32: Engine Controller-Installation Cont

    32 alarms and faults. Each event is logged with the engine hour reading at the time of occur- rence. This provides a history of alarms and shutdowns for mechanical engines that is valuable for service and troubleshooting. ODB COMPANY 800-446-9823 LCT6000...

  • Page 33: Engine Controller-Operating

    Configure settings for throttle, inputs, outputs and other available options Panel settings are made in the controller setup menu. A password is required to change settings. Contact your OEM, engine dealer, distributor or Controls, Inc. for this information. ODB COMPANY 800-446-9823 LCT6000...

  • Page 34: Engine Controller-Operating Cont

    6) RECYCLE POWER TO THE PANEL (Turn panel power off and then back on) Engine must undergo a 60 deg warmup before clutch switch is live (active/useable) Must Engage AND Disengage UNDER 1300rpms, anything over 1300 will not engage or disengage ODB COMPANY 800-446-9823 LCT6000...

  • Page 35: Engine Controller-Alarms & Codes

    ECU shutdowns. Panel controlled alarms and shutdowns are available for the following: 1) Low Oil Pressure (Alarm & Shutdown) 2) High Engine Temperature (Alarm & Shutdown) 3) Overspeed (Shutdown Only) 4) Fuel Level (Alarm & Shutdown) 5) Battery Voltage (Alarm Only) ODB COMPANY 800-446-9823 LCT6000...

  • Page 36: Engine Controller-Alarms & Codes Cont

    32 alarms and faults. Each event is logged with the engine hour reading at the time of occur- rence. This provides a history of alarms and shutdowns for mechanical engines that is valuable for service and troubleshooting. ODB COMPANY 800-446-9823 LCT6000...
  • Page 37 Operating Section ODB COMPANY 800-446-9823 LCT6000...
  • Page 38 Operating Section ODB COMPANY 800-446-9823 LCT6000...
  • Page 39 Operating Section ODB COMPANY 800-446-9823 LCT6000...

  • Page 40: Engine Controller- Digital Inputs

    The panel has two digital inputs available to monitor other components, senders or signals. The analog input is preset to fuel level and cannot be configured. The digital inputs can be used for a number of purposes including alarms and shutdowns. ODB COMPANY 800-446-9823 LCT6000...

  • Page 41: Engine Controller- Pin Out

    Operating Section 3.6 Engine Controller- Pin Out ODB COMPANY 800-446-9823 LCT6000...

  • Page 42: Engaging The Pto

    PTO at a specific speed in order to properly en- gage the PTO. Because of this the PTO handle only needs to be raised slightly, then the assist cylinder will take over and engage the PTO automatically. (fig. 3c) PTO shown fully engaged ODB COMPANY 800-446-9823 LCT6000...
  • Page 43 Disengaging the PTO (refer to figures 3b and 3d): 1. Decrease the rpm to 1000 rpm. 2. Grasp the PTO handle and slowly disengage the PTO. 3. When the PTO is fully disengaged, the engine can be shut down. PTO shown disengaged ODB COMPANY 800-446-9823 LCT6000...

  • Page 44: Fluid Drive Coupler (If Equipped)

    IMPORTANT: If the unit experiences any heavy vibrations or makes any unusual noises, shut the engine down and after following the necessary safety guidelines, have a qualified technician investigate the cause. DO NOT operate a unit that is in a state of disrepair. ODB COMPANY 800-446-9823 LCT6000...

  • Page 45: Vacuuming Leaves

    6. NOTE: Wet leaves will need higher rpm’s to vacuum whereas dry leaves will only need minimal rpm’s. 7. Continue moving the nozzle in a sweeping motion above the leaves while vacuuming. ODB COMPANY 800-446-9823 LCT6000...

  • Page 46: Maintenance Section

    Read and understand this entire manual before operating, maintaining or repair- ing the leaf vacuum. 4.0 MAINTENANCE SECTION 4.0 MAINTENANCE SECTION 4.1 Maintence Overview: ................47 4.2 Maintenance and Lubrication ..............48 4.3 Lubrication: ....................49 4.4 Preventative Maintenance ................. 52 4.5 Torque Values ................... 56 ODB COMPANY 800-446-9823 LCT6000...

  • Page 47: Maintence Overview

    4.1 Maintence Overview: Only properly trained personnel should perform maintenance or repair on this equipment. Consult ODB before performing any maintenance procedures that is not specificially covered in this manual. Improper maintenance or repair may void any and all warranties on this equipment.

  • Page 48: Maintenance And Lubrication

    Inspect All Ducts for Damage Remove Blower Face and Inspect Liners for Wear Check PTO / Clutch Adjustment Grease / Inspect Wheeel Bearings for Corrosion or Wear Inspect all Hydraulic and Fuel Lines for Leaks or Wear ODB COMPANY 800-446-9823 LCT6000...

  • Page 49: Lubrication

    #2 grease is required for the drive bearings. We recom- mend L Mantek Elite Supreme #1 WG Extreme Duty multi-purpose grease. Other premium quality grease that matches the above requirements may be used but after years of testing we recommends the Mantek grease. ODB COMPANY 800-446-9823 LCT6000...
  • Page 50 Kendall Refining.......Kendall L-427 Ashland Oil Co..Valvoline Val-plex EP Grease. Penzoil..Premium Wheel Bearing Grease 707L For any questions concerning wheel lubrication please consult the axle owner's manual supplied with your leaf collector or con- tact the manufacturer or dealer. ODB COMPANY 800-446-9823 LCT6000...
  • Page 51 EP#2 grease on friction points. 6. Hitch and Tongue (figure 4.3f): The hitch and hitch ring should be checked and lubricated daily to minimize wear. Apply grease and/or SAE30 weight oil wherever applicable. Figure 4.3f ODB COMPANY 800-446-9823 LCT6000...

  • Page 52: Preventative Maintenance

    NEVER check the engine coolant when the engine is hot. Allow the engine to cool at least one hour before checking the coolant. Check the engine owner's manual for instructions. ALWAYS wear eye and hand protection when working with the radiator. ODB COMPANY 800-446-9823 LCT6000...
  • Page 53 Check the side wall of the tire for proper inflation pressure. Torque all 1/2" diameter lug nuts from 90 to 120 foot pounds. Torque all 5/8" diameter lug nuts from 175 to 225 foot pounds. Consult the axle manufacturers owner's manual for more detailed information. ODB COMPANY 800-446-9823 LCT6000...
  • Page 54 A full fuel tank will reduce the possibility of condensation forming in the tank and moisture entering the fuel lines. Check the fuel lines daily for cracks, holes or tightness. ODB COMPANY 800-446-9823 LCT6000...
  • Page 55 (ATF) is recommended. Clean debris and oil off the solenoid and pump daily. A build up of debris can cause premature failure to the pump. Check and tighten all hydraulic fittings making sure there are no leaks. ODB COMPANY 800-446-9823 LCT6000...

  • Page 56: Torque Values

    Tighten plastic insert or crimped steel-type lock nuts to approximately 50 percent of the dry torque shown inthe chart, applied to the nut, not the bolt head. ODB COMPANY 800-446-9823 LCT6000...
  • Page 57 4.6 QUICK REFERENCE MAINTENANCE CHART Only properly trained personnel should perform maintenance or repair on this equipment. Consult ODB before performing any maintenance procedures that is not specificially covered in this manual. Improper maintenance or repair may void any and all warranties on this equipment.
  • Page 58 READING AND UNDERSTANDING THIS MANUAL IF YOU HAVE ANY QUESTIONS CONCERNING THE INSTALLATION OR OPERATION OF THIS UNIT, PLEASE CALL ODB FOR ASSISTANCE BEFORE ATTEMPTING TO REPAIR OR OPERATE THE UNIT. IMPROPER USE OF ANY MACHINE CAN RESULT IN SERIOUS INJURY!

  • Page 59: 5.0 Service Section

    5.0 SERVICE SECTION Service and Troubleshooting Wiring Diagrams ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 60: 5.0 Service Section

    5.5 Belt Adjustment and Replacement Guide ..........65 5.6 Flange Bearing Installation and Removal ..........66 5.6 Impeller Installation and Removal .............67 5.7 Replacing the Blower Housing Liners ............68 5.7 Replacing the Blower Housing Liners; continued, ........69 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 61: Service Section

    With the clutch in the engaged position (the PTO is engaged when the PTO handle is pointing straight up on the LCT600 and LCT6000 and pointing out to the side (3 o'clock) on the LCT60C, LCT650 and SCL800TM) adjust the nut (See PIC# 2) against the "rocker ball" until a 1/8" gap between the nut and rocker ball is visible ( See PIC# 3).

  • Page 62: Hydraulic Boom Troubleshooting Guide

    3. If there is current, the valve is bad and need to be replaced. Valve part number is MP-19283.D. If there is NO current, check the wiring between the switch and valve, especially any connections. If the wiring checks out okay, the switch is bad and needs to be replaced. ODB COMPANY 800-446-9823 LCT6000...

  • Page 63: Impeller Installation And Removal

    8. At this point it would be a good idea to inspect the blower hous- ing liners and blower housing for any damage or wear. Any dam- age or wear to the liners should be fixed by replacing the liners immediately. ODB COMPANY 800-446-9823 LCT6000...

  • Page 64: Impeller Installation And Removal, Continued

    8. If the bushing has a set screw on it, tighten the screw snug with an allen wrench (Fig. 3). This will help keep the key in place. 9. Install the shaft protector on to the shaft (Fig. 4 or 5). Fig. 4 Direct Drive Fig. 5 Belt Drive ODB COMPANY 800-446-9823 LCT6000...

  • Page 65: Belt Adjustment And Replacement Guide

    9. Engage the clutch, listening for any squealing from the belt. If the belt squeals use the above directions to tighten the belt a little more. 10. After approximately 8 hours of use the new belt should be checked for proper tightness in case the belt stretched. ODB COMPANY 800-446-9823 LCT6000...

  • Page 66: Flange Bearing Installation And Removal

    Tighten the set screws with an Allen wrench until the set screw stops turning and the Allen wrench starts to spring. (Figure #4) Completely tighten all four of the nuts to secure each bearing. Continued... FIGURE #3 FIGURE #4 ODB COMPANY 800-446-9823 LCT6000...

  • Page 67: Impeller Installation And Removal

    (part number LCT600.603 {all but LCT6000} and LCT630.104A for the LCT6000. This plate is for the blower FIGURE #6 housing or impeller side only. The pulley side bearing does not use the steel debris collar.

  • Page 68: Replacing The Blower Housing Liners

    Tack weld the liner in place every 8 to 10 inches Stop Weld Piece to help keep the liner in place. Weld ODB COMPANY 800-446-9823 LCT6000...

  • Page 69: Replacing The Blower Housing Liners; Continued

    Tack weld the long liner to the overlap piece and figure 5.5b tack weld around the liner as you did on the short liner. Install the two bolt-in liners just as they were removed. Weld Overlap Piece Stop Weld Piece Weld ODB COMPANY 800-446-9823 LCT6000...

  • Page 70: Wiring Diagrams

    5.10.3 Engine Rocker Switch Wiring Diagrams .................73 5.10.4 Trailer Plug Wiring Diagram ...................74 5.10.5 Trailer Wiring Harness ....................75 5.10.6 Brake Wiring Harness .....................76 5.10.7 Boom Wiring Diagram .....................77 5.10.8 Remote Throttle / Clutch Wiring Harness ...............78 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 71: Mvp Wiring Diagram

    Service Section 5.10.1 MVP Wiring Diagram RED/BLK ORG/BLK TWIST TWIST ODB COMPANY 800-446-9823 LCT6000...

  • Page 72: Plug Wiring Harnesses

    Service Section 5.10.2 Plug Wiring Harnesses ODB COMPANY 800-446-9823 LCT6000...

  • Page 73: Engine Rocker Switch Wiring Diagrams

    / Clutch Disengage Black "-" from Circuit Board Black Looped from #9 Yellow Looped from #10 Black Looped from #5 Yellow Looped from #2 This plug is used for the Remote Throttle and the Remote Clutch Rocker Switches. ODB COMPANY 800-446-9823 LCT6000...

  • Page 74: Trailer Plug Wiring Diagram

    (not used) Brown or Black (marker) Yellow or Orange (L Turn ) Green (R turn) Blue (Electric Brakes) (terminated here) Blue Break-away (runs from here to Switch the trailer bed) Power Cord Plugs into trailer bed recepticle ODB COMPANY 800-446-9823 LCT6000...

  • Page 75: Trailer Wiring Harness

    Service Section 5.10.5 Trailer Wiring Harness ODB COMPANY 800-446-9823 LCT6000...

  • Page 76: Brake Wiring Harness

    Service Section 5.10.6 Brake Wiring Harness ODB COMPANY 800-446-9823 LCT6000...

  • Page 77: Boom Wiring Diagram

    Red (4 gauge cable) Positive to Battery Black (4 gauge cable) Ground from Solenoid to Hydraulic Motor Black (from up down switch) changes to Yellow - Positive for Boom Rocker Switch on instrument panel (if equipped) ODB COMPANY 800-446-9823 LCT6000...

  • Page 78: Remote Throttle / Clutch Wiring Harness

    Service Section 5.10.8 Remote Throttle / Clutch Wiring Harness ODB COMPANY 800-446-9823 LCT6000...

  • Page 79: Valve Body Wiring Harness Diagrams

    5.20 Valve Body Wiring Harness Diagrams 5.20.1 Wiring Harness Diagram 2 Section Valve Body - 2 Axis ......80 5.20.2 Wiring Harness Diagram 4 Section Valve Body - 3 Axis ......81 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 80: Wiring Harness Diagram 2 Section Valve Body - 2 Axis

    Service Section 5.20.1 Wiring Harness Diagram 2 Section Valve Body - 2 Axis ODB COMPANY 800-446-9823 LCT6000...

  • Page 81: Wiring Harness Diagram 4 Section Valve Body - 3 Axis

    Service Section 5.20.2 Wiring Harness Diagram 4 Section Valve Body - 3 Axis ODB COMPANY 800-446-9823 LCT6000...
  • Page 82 PARTS BREAKDOWNS SECTION Engine Group Clutch Group Blower Housing Group Trailer Group Hose Boom Group ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 83: Engine Group 6-0

    6.1 Strobe Light Parts Group ................84 6.2 Battery Group .................... 85 6.3 Remote Clutch / Throttle Circuit Board Assembly ........86 6.4 Remote Clutch and Remote Throttle Assembly ........87 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 84: Strobe Light Parts Group

    6.1 Strobe Light Parts Group ITEM # PART NUMBER DESCRIPTION STD.2213 LED Strobe Light 60700 Grommett 4045.0021B1 Rocker Switch 4045.0024B Switch Wiring Harness STD.2214 Wiring Harness, rocker switch to light. STD.2534 Strobe Light Bracket , 600 Only ODB COMPANY 800-446-9823 LCT6000...

  • Page 85: Battery Group

    Red Cable to Hydraulic Boom Pump, SCL/600/6000 - 72" long MET.60SS Red Cable to Hydraulic Boom Pump, LCT650, 60" long LCT60C.153SS Red Cable to Hydraulic Boom Pump, LCT60C, 153" long LCT600.24SS Ground (Black) Cable to Chassis, 600/6000/60C - 24" ODB COMPANY 800-446-9823 LCT6000...

  • Page 86: Remote Clutch / Throttle Circuit Board Assembly

    Backing Plate only available as an assembly Spacer, rquires 4 only available as an assembly Circuit Board only available as an assembly Actuator Wiring Harness only available as an assembly Instrument Panel and Nozzle Wiring Harness ODB COMPANY 800-446-9823 LCT6000...

  • Page 87: Remote Clutch And Remote Throttle Assembly

    STD.6553 Throttle Cable - direct drive STD.6570 Limit Switch Bracket STD.6553B Throttle Cable - belt drive BSB632X.1.00 Bolt 1in STD.6557 Throttle Acutator (bottom) NS632ESN STD.6558 Cable Adaptor-throttle BSB1032X.375 Bolt Bolt .375in STD.6552A Cover STD.2916 CPC Housing ODB COMPANY 800-446-9823 LCT6000...

  • Page 88: Clutch Group 7-0

    7.5 Kraft Fluid Drive Group (Optional) ............93 7.6 Kraft Fluid Drive Installation (Optional) ............ 94 7.7 Kraft Fluid Drive Breakdown (Optional) ........... 95 7.8 Kraft Fluid Drive Common Parts (Optional) ..........96 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 89: Autohd Pto Clutch Group

    Clutch Disk OD-LC1919 Pressure Plate, 03/08 - OD-41500248 Throw out Bearing,03/08 - OD-41500172 Clutch Cover OD-45000054 Bolt, 3/18-16 x 1" OD-45000063 Lock Washer, 3/8" OD-45000226 Bolt, M10-1.50 x 35MM OD-45000046 Lock Washer, M10 OD-41500216 Decal, Diesel Clutch ODB COMPANY 800-446-9823 LCT6000...

  • Page 90: Autohd Pto Assembly Group

    Key, belt drive units only OD-41500203 PTO shaft OD-45000105 Bolt, 9/16-12 x 1- 3/4" OD-45000177 Bolt, 9/16-12 x 3" OD-45000103 Lock Washer, 9/16" OD-41500204 PTO Housing OD-41500242 PTO Collar, 03/08 - present OD-41500207 PTO Bearing, Front ODB COMPANY 800-446-9823 LCT6000...

  • Page 91: Autohd Pto Linkage Group

    Bolt, 1/4 - 28 x 2" 41500019 Linkage Rod End 45000015 Locknut, 1/4 - 28 see below Shaft, Lever 41500044 Handle 41500175 Boot 41500102 Shaft Housing, AutoHD 41500164 Alignment Tool 41500043 Grease Zerk 41500103 Alignment Tool ODB COMPANY 800-446-9823 LCT6000...

  • Page 92: Clutch Assist Group

    DESCRIPTION 400050.A Clutch Cylinder 400054.C Cylinder Support Bracket, JD 41500095 Clutch Bracket Arm, Auto HD 41500019 Linkage, Rod end 41500019A Linkage, Threaded insert 400050.C1 Bearing 41500102 Pivot Shaft Tube, Auto HD 41500041A.HD Pivot Shaft, 400050.C2 Spacer ODB COMPANY 800-446-9823 LCT6000...

  • Page 93: Kraft Fluid Drive Group (Optional)

    7.5 Kraft Fluid Drive Group (Optional) Fluid Drive Coupler (Optional) ODB COMPANY 800-446-9823 LCT6000...

  • Page 94: Kraft Fluid Drive Installation (Optional)

    7.6 Kraft Fluid Drive Installation (Optional) Fluid Drive Coupler (Optional) ODB COMPANY 800-446-9823 LCT6000...

  • Page 95: Kraft Fluid Drive Breakdown (Optional)

    7.7 Kraft Fluid Drive Breakdown (Optional) Fluid Drive Coupler (Optional) ODB COMPANY 800-446-9823 LCT6000...

  • Page 96: Kraft Fluid Drive Common Parts (Optional)

    7.8 Kraft Fluid Drive Common Parts (Optional) Fluid Drive Coupler (Optional) ITEM # PART NUMBER DESCRIPTION UU-TFP7018CC 390 Degree Fuse Plug, 5/8" UU-TFP2292 Seal Kit UU-8202AD Roller Bearing UU-TFP103602X Shaft UU-8002DX Bearing, small UU-8002AS Ball Bearing UU-KPC2.01.5 Fluid, 1-1/2 gallon ODB COMPANY 800-446-9823 LCT6000...

  • Page 97: Blower Housing Group 8-0

    8.0 BLOWER HOUSING GROUP 8.0 BLOWER HOUSING GROUP 8-0 ..........................97 8.1 Blower Housing Group ..................98 8.2 Blower Housing Face Group - LCT6000 ............99 8.3 Belt Drive Assembly ..................100 8.4 Pedestal Group ....................101 8.5 Exhuast Duct Assembly .................102 ODB COMPANY 5118 Glen Alden Drive...

  • Page 98: Blower Housing Group

    Liner Set LCT650.601F Bushing Key LCT630.104A Inner Bearing Plate LCT630.102 Shaft Protector LCT630.105A Outer Bearing Plate 5CZ.500.750 Shaft Bolt LCT620.602A Bolt-In Wrap around LCT620.604 Straght Liner Liner LCT630.109.D Spacer LCT620.603 Flat Head Bolt LCT620.603N LCT6000.38 Impeller ODB COMPANY 800-446-9823 LCT6000...

  • Page 99: Blower Housing Face Group - Lct6000

    8.2 Blower Housing Face Group - LCT6000 Single Axis units after September 2013 ITEM # PART NUMBER DESCRIPTION 6000.40 Blower Housing Face, 09/13 and later LCT616.614.18 Intake Flange LCT60.647 Lock Rod STD.4000.A Limit Switch Box Assembly STD.4000 Limit Switch Box STD.4001...

  • Page 100: Belt Drive Assembly

    LCT630.108 Sheave, PTO Shaft LCT630.106 Drive Belt LCT630.111 Bushing, PTO Shaft LCT630.107 Sheave, Impeller Shaft LCT630.622 Belt Guard Mount, end LCT630.110 Bushing, Impeller Shaft 6410.51 Limit Switch 6000.2215 Belt Guard Back 6000.2217 Hinge LCT650.601F Bushing Key ODB COMPANY 800-446-9823 LCT6000...

  • Page 101: Pedestal Group

    Overcenter Latch LCT622.602.L Latch 6410.51 Limit Switch DEF Tank Straps LCT630.105A Outer Bearing Plate LCT630.0 Shaft LCT630.109.A Flange Bearing LCT630.109.C Lock Collar LCT630.109.D Spacer 600.2219 Grease Line, Beltside Bearing, 18" 600.2215 Grease Line, Impellar side bearing. 12" ODB COMPANY 800-446-9823 LCT6000...

  • Page 102: Exhuast Duct Assembly

    8.5 Exhuast Duct Assembly LCT6000 after February 2001 #5,#6 and #7 do not come as standard equipment To mount #5, Item #6 is required for all units built after Feb. 2001 18" DIAMETER *16" DIAMETER (STANDARD) (OPTIONAL) ITEM # PART NUMBER...

  • Page 103: Trailer Group 9-0

    9.3 Tongue Group ....................106 9.4 Hydraulic Parking Jack - OPTIONAL ............. 107 9.4 Axle Hub Assembly ..................108 9.5 Brake Assembly ....................109 9.6 Hydraulic Surge Brake Actuator - OPTIONAL ..........110 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 104: Trailer Bed Group

    9.1 Trailer Bed Group LCT6000 ITEM# PART NO. DESCRIPTION ITEM# PART NO. DESCRIPTION SCL822.619A Tire and Rim Assembly STD.2414 Tail Light Assembly consists of: OD-60250R LED Light only .SCL822.619.T2 Tire only OD-60700 Grommett .SCL822.619.R Rim only OD-94706 Plug Harness LCT622.602.L Battery Box Latch STD.2201...

  • Page 105: Fuel Tank Group

    9.2 Fuel Tank Group ITEM# PART NO. DESCRIPTION 600.2520B Fuel Tank STD.8101 Fuel Cap I-09-010-12SCAL Fuel Sender MET633.901 Fuel Fitting (NOT for pickup) MET633.901M Fuel Fitting Grommett 600.2527 Fuel Fitting, Pickup Tube and Screen 650.2514 Support Bracket ODB COMPANY 800-446-9823 LCT6000...

  • Page 106: Tongue Group

    PART NO. DESCRIPTION LCT622.623D Pintle Eye Assembly LCT622.633 Tow Bar, LCT60C/650 LCT622.634 Tow Bar, LCT600 consists of LCT622.636 Tow Bar, LCT6000 LCT622.623 Pintle Eye Ring LCT622.624 Parking Jack LCT622.623B Bracket w/ U-Channel LCT622.635A Hose Lock Brkt,600 200012 Pintle Eye Pins LCT622.625...

  • Page 107: Hydraulic Parking Jack - Optional

    Stud Cover, Black STD.9008* Clamp Top Notes: *#8,9 not used on 2/3 axis units STD.9007 Clamp Bottom, 600/800/650 * #11-13,16-19 not used on 2/3 axis units 6000.9007 Clamp Bottom, 6000 * will work on older units(use LCT622.624H2) ODB COMPANY 800-446-9823 LCT6000...

  • Page 108: Axle Hub Assembly

    Rubber Plug 005-023-00 Spindle Washer 006.080.00 Lug Nut, 1/2-20 K23-180-00 7K Electric Brake Assembly, LH K23-181-00 7K Electric Brake Assembly, RH Grease Hub and Drum 008-219-04 1/2" Stud 008-219-13 9/16" Stud 008-219-18 5/8" Stud 010-045-00 O Ring ODB COMPANY 800-446-9823 LCT6000...

  • Page 109: Brake Assembly

    (1) Magnet (Black Wire) 027-009-00 (1) Magnet Clip 046-080-00 (1) Magnet Spring 046.007.00 Plug 046.016.00 Wire Grommet 005-067-00 Anchor Post Washer 006-193-00 Nut Washer Assembly • #12 Not Included with complete brake assembly. Item Sold Separately. ODB COMPANY 800-446-9823 LCT6000...

  • Page 110: Hydraulic Surge Brake Actuator - Optional

    Front Roller Cover 1054100 Breakaway Lever Assembly Master Cylinder 1250300 Filler Cap 0838900 Cylinder Bracket, LH 1242600 Damper 0829100 Rear Roller 4748800 Solenoid back up valve For complete part number listing please see our support section at www.odbco.com ODB COMPANY 800-446-9823 LCT6000...

  • Page 111: Hose Boom Group 10-0

    10-0 10-0 HOSE BOOM GROUP 10-0 HOSE BOOM GROUP 10-0 .........................111 10.1 Boom Group....................112 10.2 Intake Hose Group ..................113 10.3 M3219 Hydraulic Boom Pump ...............114 ODB COMPANY 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 112: Boom Group

    Hydraulic Hose STD.2321C Push Buttons w/ Harness M3219.PC Boom Pump Cover STD.2322 SS Button Hold Down 200022 Pump Spacer Push Button Box MP-M3219.S Boom Pump LCT616.615D Hold Down Bracket 9205.4.4 Straight Fitting STD.2320E Cover Plate ZENC.625 ODB COMPANY 800-446-9823 LCT6000...

  • Page 113: Intake Hose Group

    LC-SDH.16.120.UC Intake Hose, Urethane (multi-axis-16") LCT616.601.18 Intake Nozzle, 18" LCT616.618 Hose Band, Bolt Style, 18" LCT616.603U.18 Hose Clamp, 3/8" thick hoses, 18" diam. LCT616.603U.18 Hose Clamp, urethane hoses. 18" diam. LCT616.607 Hose Support Bar SCL670.5 Grip ODB COMPANY 800-446-9823 LCT6000...

  • Page 114: M3219 Hydraulic Boom Pump

    PART NUMBER DESCRIPTION MP-M3219.S Complete Pump Assembly (all above) MP-08004 Electric Motor, 12V MP-17744 Solenoid Switch, heavy duty MP-19283D Coil, Cartridge Assembly MP-07193.D Cartridge MP-10861.D Coil, 2 way - 2 position MP-06232 Plastic Reservoir, 3.5" x 15.7" ODB COMPANY 800-446-9823 LCT6000...

  • Page 115: (Optional)

    11.6 Auburn Gear Drive Assembly - 3 Axis ..............121 11.7 Hinged Boom Frame Assembly - Chain Drive ..........122 11.8 2 Axis Valve Body ....................123 11.9 3 Axis Valve Body ....................124 INDEX Index ..........................126 ODB Company 5118 Glen Alden Drive Richmond, VA 23231 800-446-9823...

  • Page 116: Or 3X) Hydraulic Tank - Valve Body Group

    Hydraulic Hose, 1/2" Fitting to tank STD.9057 Valve Body 2 Section 800.950 Joystick Assembly, Single 550.1700B Valve Body 4 Section 800.900 Joystick Assembly, Dual 90 Degree Fitting 800.952 Single Joystick Holder 90 Degree Fitting *Hose* Hydraulic Hose, 1/2" ODB COMPANY 800-446-9823 LCT6000...

  • Page 117: Joystick Group - 2 Axis Boom

    LCT600 / 6000 multi-axis units - January 2006 and after ITEM # PART NUMBER DESCRIPTION 800.903 Joystick 800.951 Box Cover 800.951 800.952 Box Bottom, comes with #5 800.952 Box Holder, comes with #4 800.953 Grip Fitting, strain relief Wiring Harness ODB COMPANY 800-446-9823 LCT6000...

  • Page 118: Axis) Boom Assembly

    Boom Cylinder 800.712 Nut, 3/4" 800.704B Auburn Gear 800.709 Bolt, 3/4-16 x 5" Long 800.701D Hydraulic Motor 8X.002E Bushing, .75"x.375ODx1 Call Chain 800.609 Bearing LCT622.635 Boom Hanger Bracket HYF.1028.M Fitting, 90 degree swivel LCT616.601.90MA 90 Degree Nozzle ODB COMPANY 800-446-9823 LCT6000...

  • Page 119: Axis) Boom Assembly

    Bushing, 1"IDx.375"ODx1" SCL816.813.24 Hose Support Tube, 24" 23 8X.002F Bushing, .625"IDx.875"ODx1" 10 Call Chain 24 8X.002D Bushing, .625"IDx.75"ODx.5" LCT616.601MA.HD Nozzle, 45 degree 25 800.609 Bearing 12 LCT616.603U Hose Support Band 26 800.709 Bolt, 3/4-16 x 5" Long ODB COMPANY 800-446-9823 LCT6000...

  • Page 120: Hinged Boom Frame Assembly - Gear Drive

    2or 3 Axis units July 2005 and after ITEM # PART NUMBER DESCRIPTION 800.600C Boom Frame SCL816.501 Bearing 800.707A Boom Mast, Knuckle 800.704B Auburn Gear (see breakdown next page) 800.801D Hydraulic Motor 800.609 Frame Support SCL816.503L Boom Stop, LH SCL816.503R Boom Stop, RH ODB COMPANY 800-446-9823 LCT6000...

  • Page 121: Auburn Gear Drive Assembly - 3 Axis

    Pipe Plug 03-04-101-09 Pipe Plug 641008 Bearing and Seal Kit, includes #2,3,4,8 and 10 04-01-101-17 Bearing Cone 641017 Seal Kit, includes #2 & #10 14-02-410-003 Retaining Ring Kit 618318 Gear Bolt Ring Gear 618318.N Carrier Assembly ODB COMPANY 800-446-9823 LCT6000...

  • Page 122: Hinged Boom Frame Assembly - Chain Drive

    550.1808C Spacer 550.1801 Chain 550.1809 Rod End Ball Joint 550.1800 Connector 450.1412 Grease Zerk 550.1800.B 450.1411 Fitting 550.1812 Boom Swivel Call Grease Hose 8X.002E Bushing Call Grease Hose 550.1812.B Swivel Bushing 550.1813 Swivel Pin 550.1808B Bolt ODB COMPANY 800-446-9823 LCT6000...

  • Page 123: Axis Valve Body

    Entire Assembly 550.1704 Counter Balance Valve TCC.1100Q Deadman/Relief Funtioin Coil TCC.1100D Deadman Valve Cartridge 550.1705 Vented Relief Valve Cartridge 550.1703 Nut for #4 550.1706 Boom Funtion Valve Cartridge TCC.1100R Boom Funtion Coil 550.1710 Filter Cartridge 800.529B Filter ODB COMPANY 800-446-9823 LCT6000...

  • Page 124: Axis Valve Body

    Deadman/Relief Funtion Coil 550.1706 Boom Funtion Valve Cartridge TCC.1100R Boom Funtion Coil 550.1705 Vented Relief Valve Cartridge 550.1703 Nut for #8 550.1707 Flow Control Orifice .040 550.1708 Flow Control Orifice .045 550.1710 Filter Cartridge 800.529B Filter ODB COMPANY 800-446-9823 LCT6000...
  • Page 125 Read and understand this entire manual before operating, maintaining or repair- ing the leaf vacuum. If the decal above is missing or damaged call ODB immediately and we will send you a replacement free of charge. Never operate a unit with damaged or missing safety decals.

  • Page 126: Index Index

    Shaft Bushing, PTO 91 Disk, Clutch 89 Linkage 91, 92 Shaft, Lever 91 Door 78 Linkage Bracket 91 Shaft Protector 98 Drive Belt 100 Linkage Rod 91 Shaft, PTO 90 Lock Rod 99 Sheave, Impeller Shaft 100 ODB COMPANY 800-446-9823 LCT6000...

  • Page 127: Index

    Throttle Cable 86 Throttle Connector 84 Throw out Bearing, 89 Torque Coupling 86 Transition 102 Up/Down Switch 112 Valve Body 116 Water Temperature Sender 82 Wiring Harness 6, 57, 64, 65, 67, 77, 124 Wiring Harness, Switch 77 ODB COMPANY 800-446-9823 LCT6000...
  • Page 128 READING AND UNDERSTANDING THIS MANUAL IF YOU HAVE ANY QUESTIONS CONCERNING THE INSTALLATION OR OPERATION OF THIS UNIT, PLEASE CALL ODB FOR ASSISTANCE BEFORE ATTEMPTING TO REPAIR OR OPERATE THE UNIT. IMPROPER USE OF ANY MACHINE CAN RESULT IN SERIOUS INJURY!

Table of Contents

Save PDF
