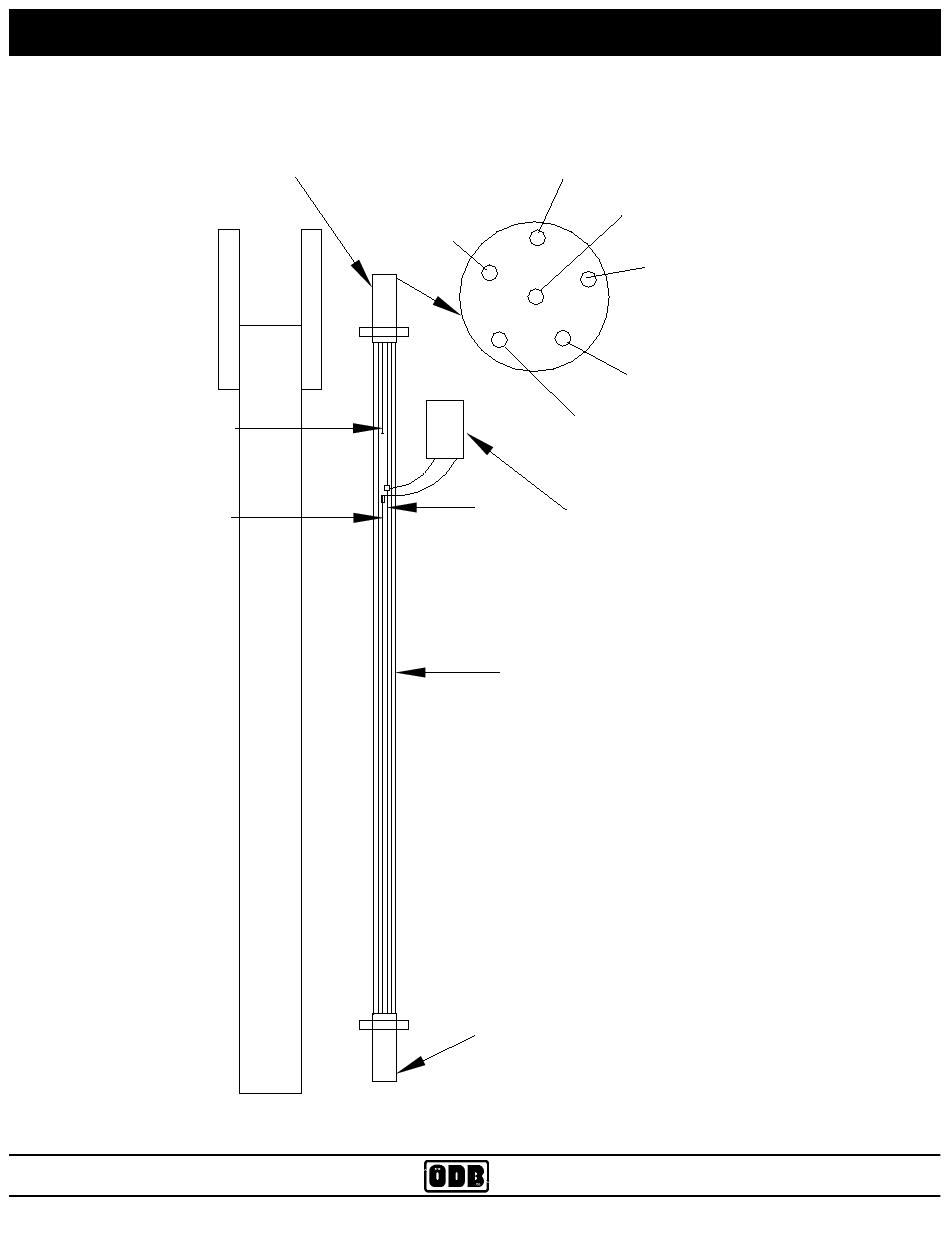

TRAILER PLUG DIAGRAM
Plugs into truck
Red
(terminated here)
Red
(runs from here to
the trailer bed)
ODB COMPANY
Service Section

5.10.4 Trailer Plug Wiring Diagram

Brown or Black
(marker)
White
(ground) Red
GD
TM
LT
A
RT
S
Blue
(Electric Brakes)
Blue
Break-away
Switch
Power Cord
Plugs into trailer bed
recepticle
800-446-9823
(not used)
Yellow or Orange
(L Turn )
Green
(R turn)
LCT6000
74
