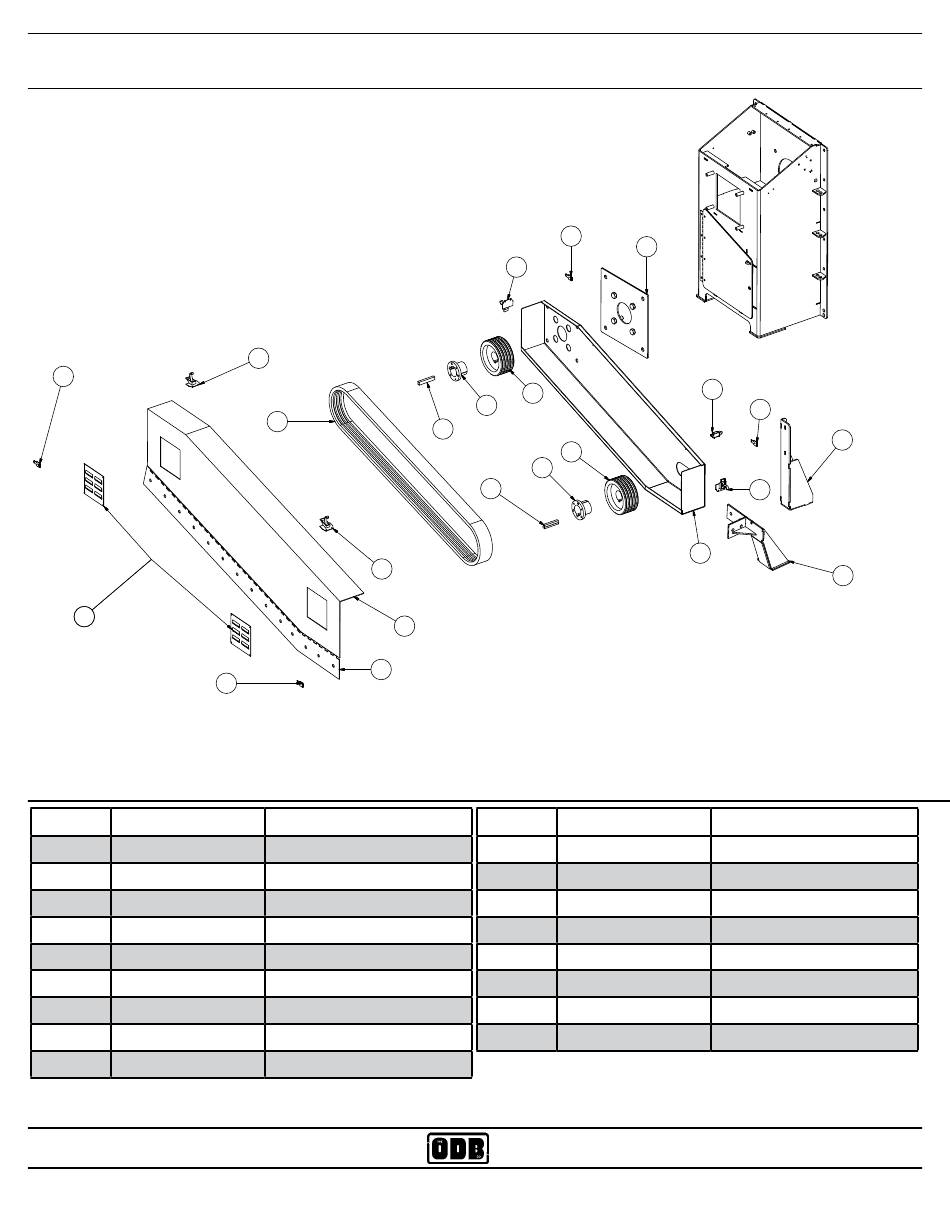

Belt Drive Assembly - ODB LCT6000 Owner's Manual

3
2 2
ITEM # PART NUMBER
1 6000.2216
2 LCT600.699
3 200042
4 LCT609.602
5 LCT630.106
6 LCT630.107
7 LCT630.110
8 6000.2215
9 LCT650.601F
ODB COMPANY

8.3 Belt Drive Assembly

4
5
4
1
17
3
DESCRIPTION
Belt Guard Door
Guard Vent
Striker Plate
Overcenter Latch
Drive Belt
Sheave, Impeller Shaft
Bushing, Impeller Shaft
Belt Guard Back
Bushing Key
After August 2012
3
4
6
7
9
13
14
12
ITEM # PART NUMBER
10 LCT611.622
11 LCT630.109
12 6000.2227
13 LCT630.108
14 LCT630.111
15 LCT630.622
16 6410.51
17 6000.2217
800-446-9823
11
16
3
4
8
DESCRIPTION
Belt Guard Mount
Bearing
Step Down Key
Sheave, PTO Shaft
Bushing, PTO Shaft
Belt Guard Mount, end
Limit Switch
Hinge
LCT6000
10
15
