Parameterizing
7.2 Parameterizing via the user interface
Universal counter
The device has two configurable universal counters with the following capabilities:
● Counting at digital inputs or outputs
– Limit violations
– Status changes
● Energy indications of a connected pulse encoder
– Active energy
– Reactive energy
● Counting of signals from various sources, e.g.
– Water meter or
– Gas meter

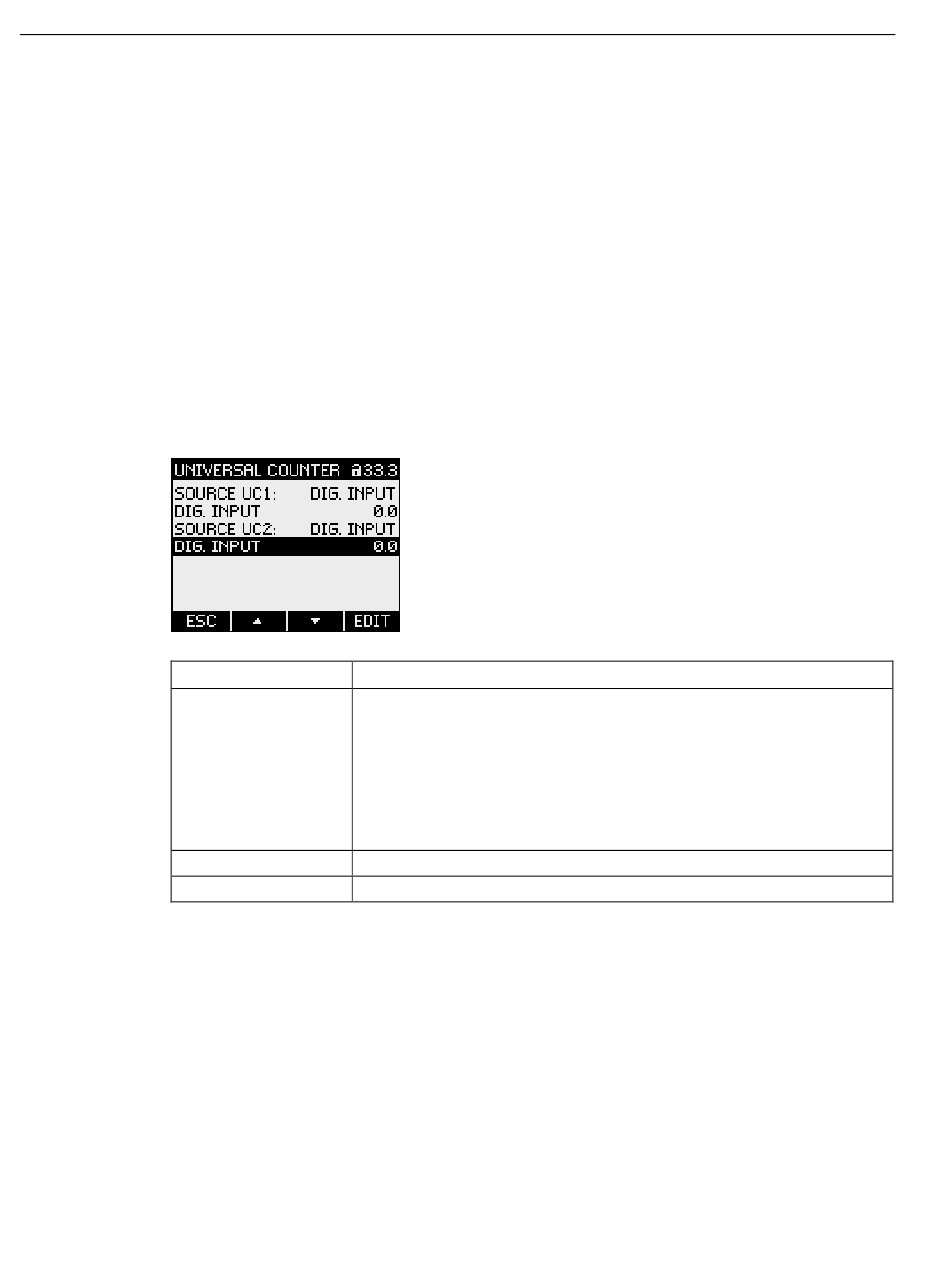

Symbol
•
•
DIG.INPUT
DIG.OUTPUT
108
Description
Source of the count
SOURCE UNIV1
•
SOURCE UNIV2
•
•
•
•
Selection of an available digital input
Selection of an available digital output
DEACTIVATED: Universal counter deactivated
DIG.INPUT: Digital input
DIG.OUTPUT: Digital output
LIMIT LOGIC: Limit RLO
LIM0 ... LIM11: Limit value 0 ... limit value 11
