Using the Button-Label Generator software

1. To run the Button-Label Generator program, click Start > Programs > Extron
Electronics > Button Label Generator > Button Label Generator. The
Button-Label Generator window appears (figure 5-19).

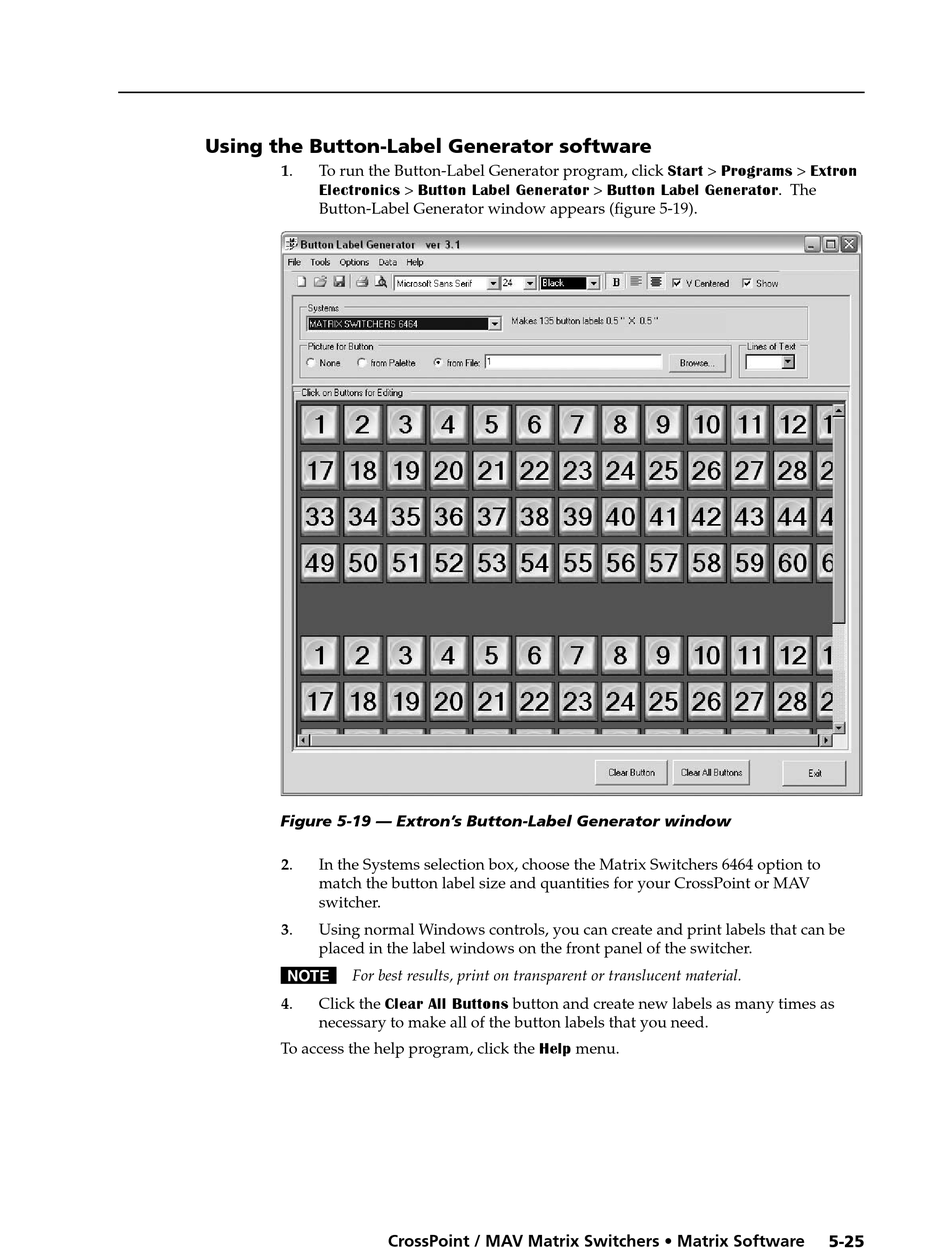

Figure 5-19 — Extron's Button-Label Generator window
2. In the Systems selection box, choose the Matrix Switchers 6464 option to
match the button label size and quantities for your CrossPoint or MAV
switcher.
3. Using normal Windows controls, you can create and print labels that can be
placed in the label windows on the front panel of the switcher.
N For best results, print on transparent or translucent material.
4. Click the Clear All Buttons button and create new labels as many times as
necessary to make all of the button labels that you need.
To access the help program, click the Help menu.
CrossPoint / MAV Matrix Switchers • Matrix Software 5-25
