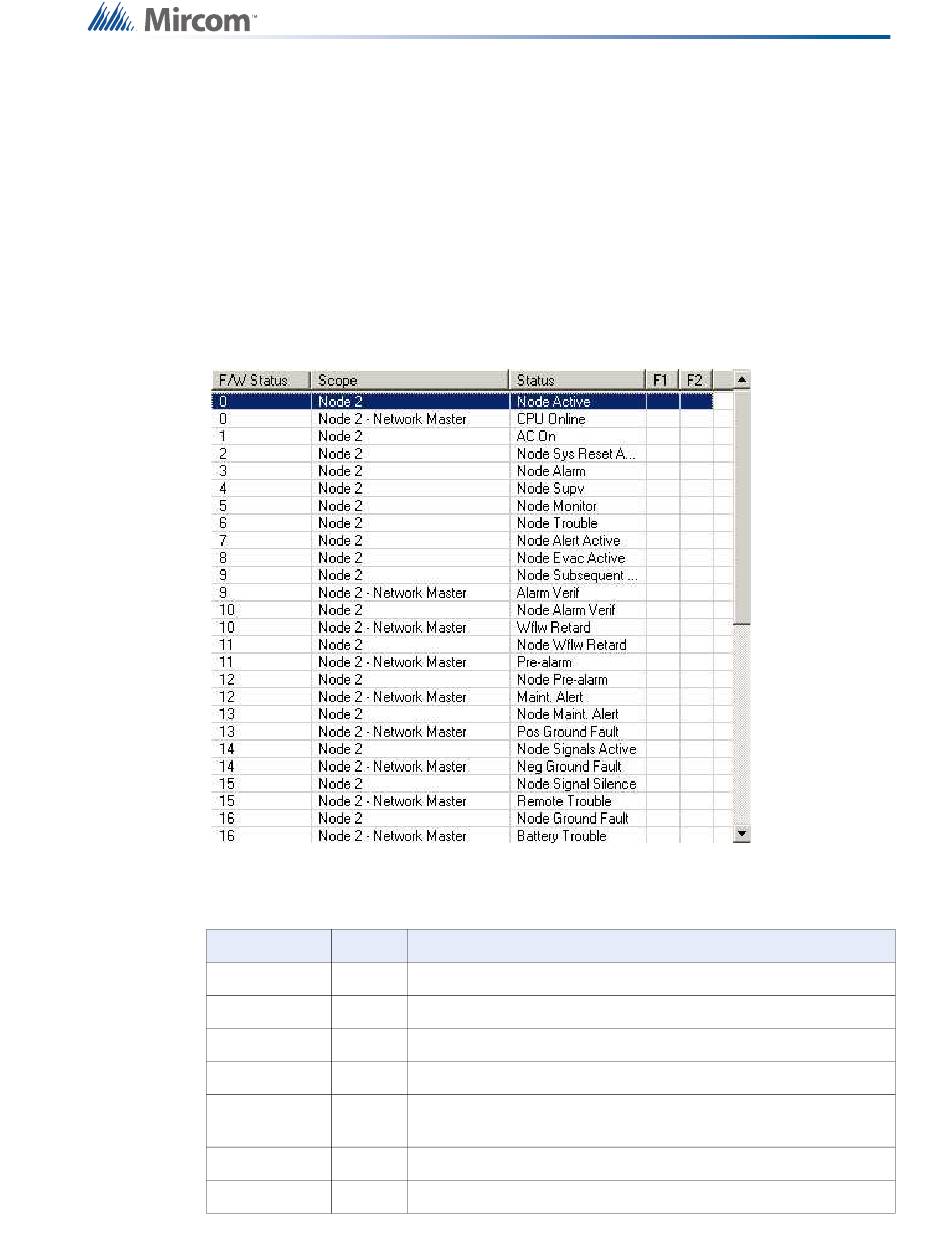

correlate to it, you are specifying, for example, the AC On status of the selected Node.
The Scope column specifies the Node of the status.
• CPU Status - These fall into two categories.
• The list view containing the special Annunciator Statuses, Control Enabled and
its complement, appears in the job tree for every CPU that has a LCD (Main
Display and LCD Annunciators).
• The list view containing the other CPU statuses appears in the job tree for each
network node and is combined with the Node Statuses. These CPU Statuses
are assumed to be associated with the main CPU of the Node.
The Scope column specifies the Node and CPU of the status. You must have defined a
suitable LED to accept the correlation from the Node or Node/CPU specific status.
Some columns containing advanced or internal information are normally hidden. They are
listed as Visible / No in the following table.
Name Visible
Item No
F/W Status Yes
Node No
CPU No
Scope Yes
Status Yes
F1 Yes
Description
The database status number. For debugging purposes.
The firmware status number.
The Node Number (only applicable for Node and CPU statuses).
The CPU Number (only applicable for CPU statuses).
Either Common for system wide statuses or the Node name, or
Node CPU combination of the status.
A short description of the status.
Flag field: NS for Non-Silenceable or blank.
