3.2.10 Current Level

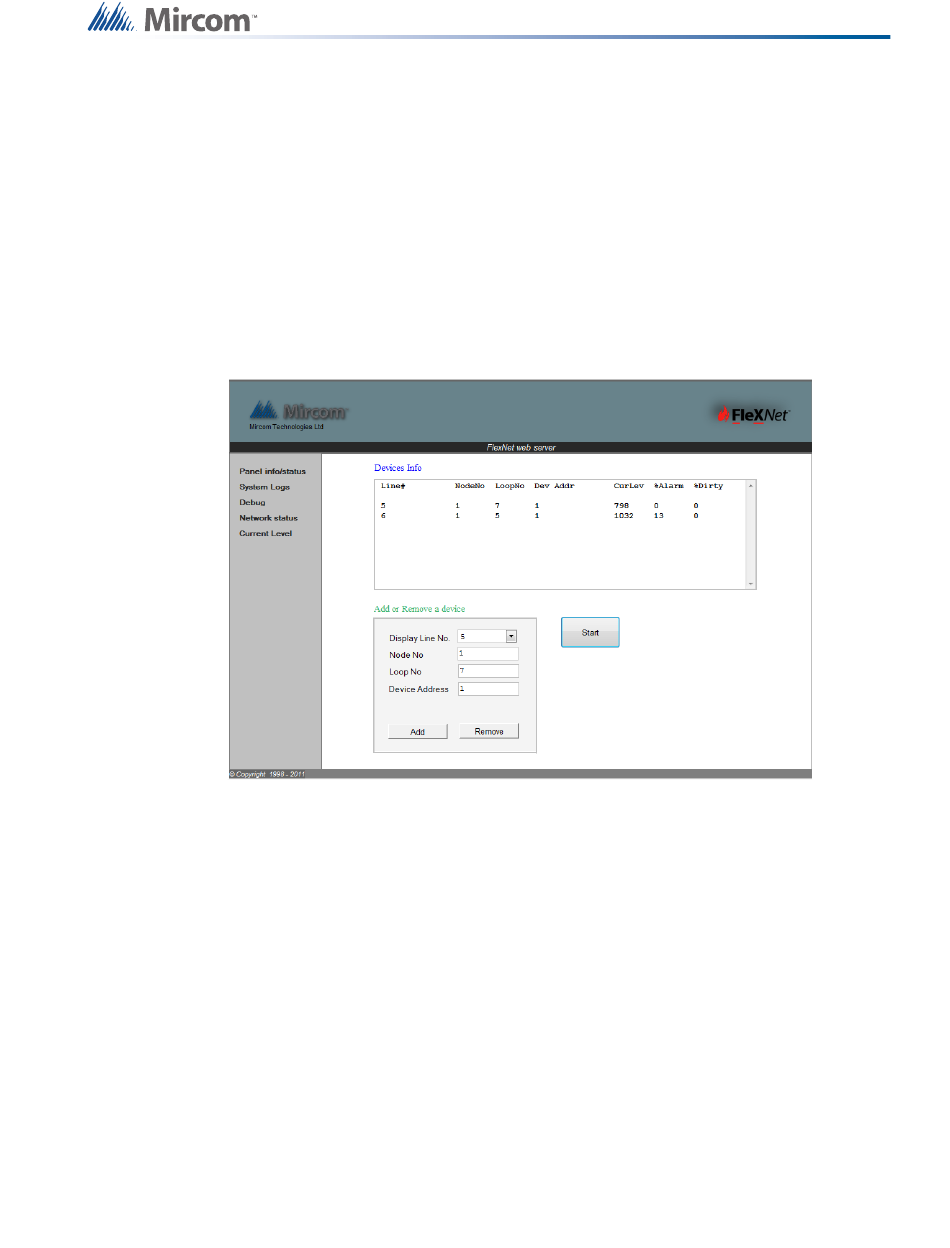

The Current Level selection displays a page that can monitor individual devices. To add a
device for current level monitoring:
1. Use the Display Line No. drop down to select the line for the device to be placed on.
2. Then enter the values for the node the device is on, the loop on that node it is on and the
device address in the fields labelled Node No, Loop No and Device Address
respectively.
3. Press Add and enter information for a second device or press Start to begin monitoring.
4. The Device Info window will update with current level readings and the percentage that
the current level is at before it reaches alarm level at or beyond 100%.
