Mircom Flex-Net Phase II Application Manual page 93

Appendix B: Using the Configurator

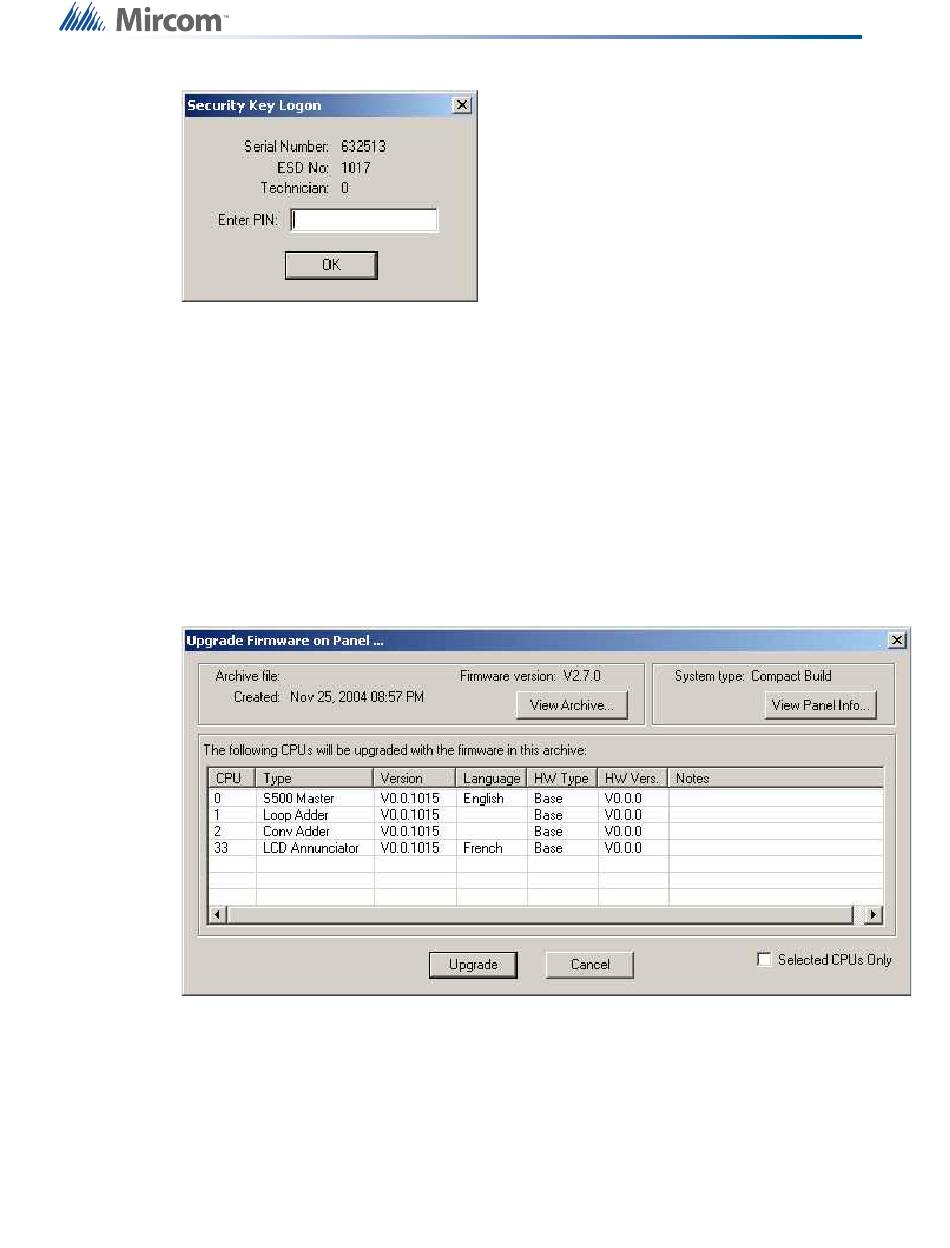

When the dialog appears, enter your PIN and press OK. If the PIN is accepted all future,
privileged operations will proceed with no further prompting as long as the key is still inserted.
If the user dismisses the dialog (by pressing escape) or removes the key, then any attemp to
perform a secure operation will fail with the message
You need a valid security key to perform this operation.
You must reinsert the key and enter the correct PIN. Also see: Security Key Information
Upgrade Firmware
This dialog appears in response to the Upgrade Firmware command, after you have selected
a firmware archive.
View Archive... - clicking this button opens the Firmware Archive Contents dialog, which lists
all of the files in the archive. There should be a file for every combination of System Type
(Compact and Large), Node Type and where appropriate, Language.
View Panel Info... - clicking this button opens the Advanced Panel Information dialog, which
lists all of the CPUs actually present (Online or Not Responding) on the panel.
92
