Mircom Flex-Net Phase II Application Manual page 47

(Mounts and occupies 2 display positions in BB-5008 or BB-5014 Enclosures)
Exterior View
Cutout to mount
display module
Supports 2 Display Modules.
Mounting of Paging and FireFighter Telephone Modules
The Paging and FireFighter Telephone Modules mount in the BB-1000 or BB-5000 series enclosures. These modules require brackets
for mounting. The brackets are attached to the backplates of the enclosures. The FX-2017-12N Mid-Size Main Chassis does not have
provisions for these brackets since adder module are mounted to the backplate. The same is true for the FX-2009-12N Main Chassis
and ECX-0012 Expander Chassis since there are adder modules mounted on the backplate. In order to mount the Paging and
FireFighter Telephone modules, order the CCH-5008 or CCH-5014 Custom Mounting Kits which will provide the proper dead front as
well as the brackets on the backplate. These modules can also be mounted int he BB-1000 enclosures.
Exterior View

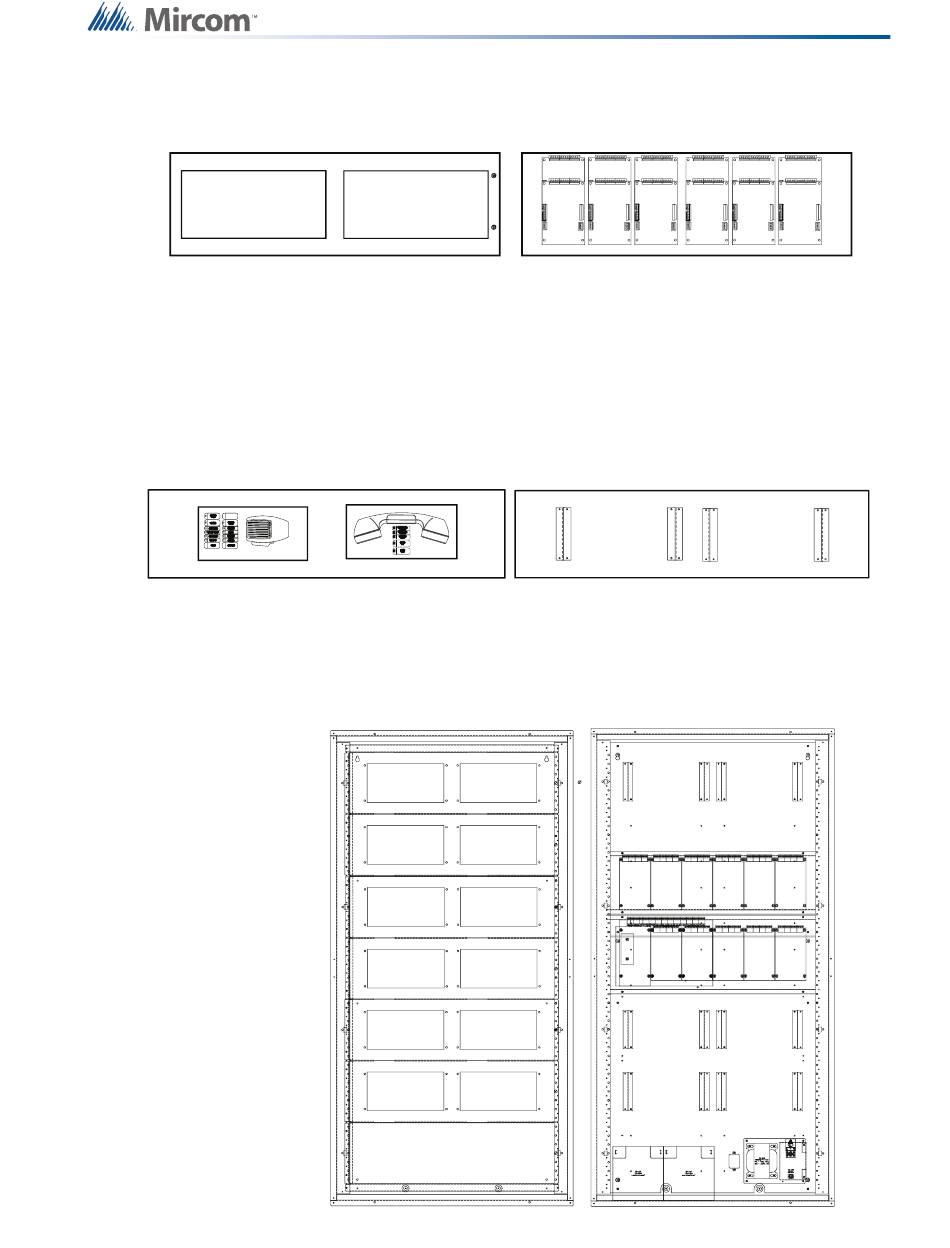

The modular nature of a fire node allows for many different configurations and combinations of
modules depending on the requirements of the job. The figure below is a sample layout for the
BB-5014 although many other layouts are possible.
BB-5012 Sample Layout
ECX-0012 Expander Chassis for FX-2009-12N
Cutout to mount
display module
The backplate can support 12 Adder Modules or any 2
of the following 3 options: 6 Adder Modules, 1 Main Board
and 3 Adder Modules, 1 Telephone Network Card
and 1 Audio Network Card
Exterior View
Cutout to mount Cutout to mount
any display or any display or
paging module paging module
Cutout to mount
Cutout to mount
any display
any display
module
module
Cutout to mount
Cutout to mount
any display
any display
module
module
Cutout to mount Cutout to mount
any display any display
module
module
Cutout to mount Cutout to mount
any display or any display or
paging module paging module
Cutout to mount Cutout to mount
any display or any display or
paging module
paging module
Interior View
6 5 4 3
12 11 10 9
Supports 12 Adder Modules.
Interior View
Interior View
Hardware Layouts
2 1
8 7
47
