14.10 FX-LOC Local Operating Console

These operating consoles are intended for use in mass notification. They can mount 3
modules on the deadfront door. These modules are usually a RAXN-LCD annunciator and a
QMP-5101N paging microphone in conjunction with either a QAZT-5302 selector panel or a
FDS-008 switch module and IM-10 input module combination. The paging microphone is for
broadcasting announcements, while pre-recorded digital messages can be played using the

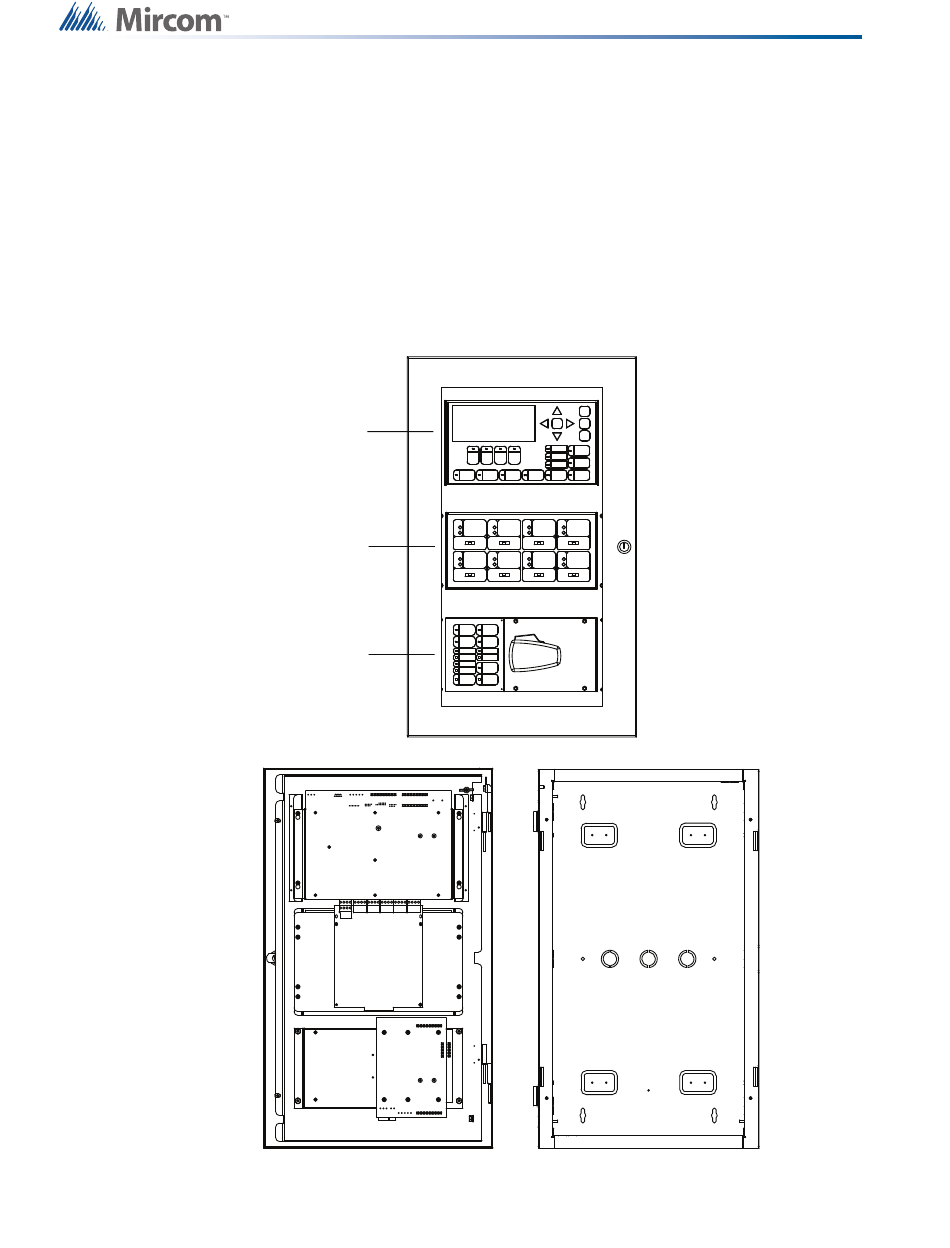

selector panel or the switch/input module combination. The figure below shows the setup with
the switch/input module combination.
Note that the deadfront and door can be installed such that they open either to the left or to the
right as required. The outer dimensions of the FX-LOC fit within 25.0" X 15.0" X 7.0".
50
RAXN-LCD
LCD Network
Annunciator
FDS-008
Fan/Damper
Switching Module
QMP-5101N
Network Paging
Microphone
IM-10
Input Module
Hardware Layouts
