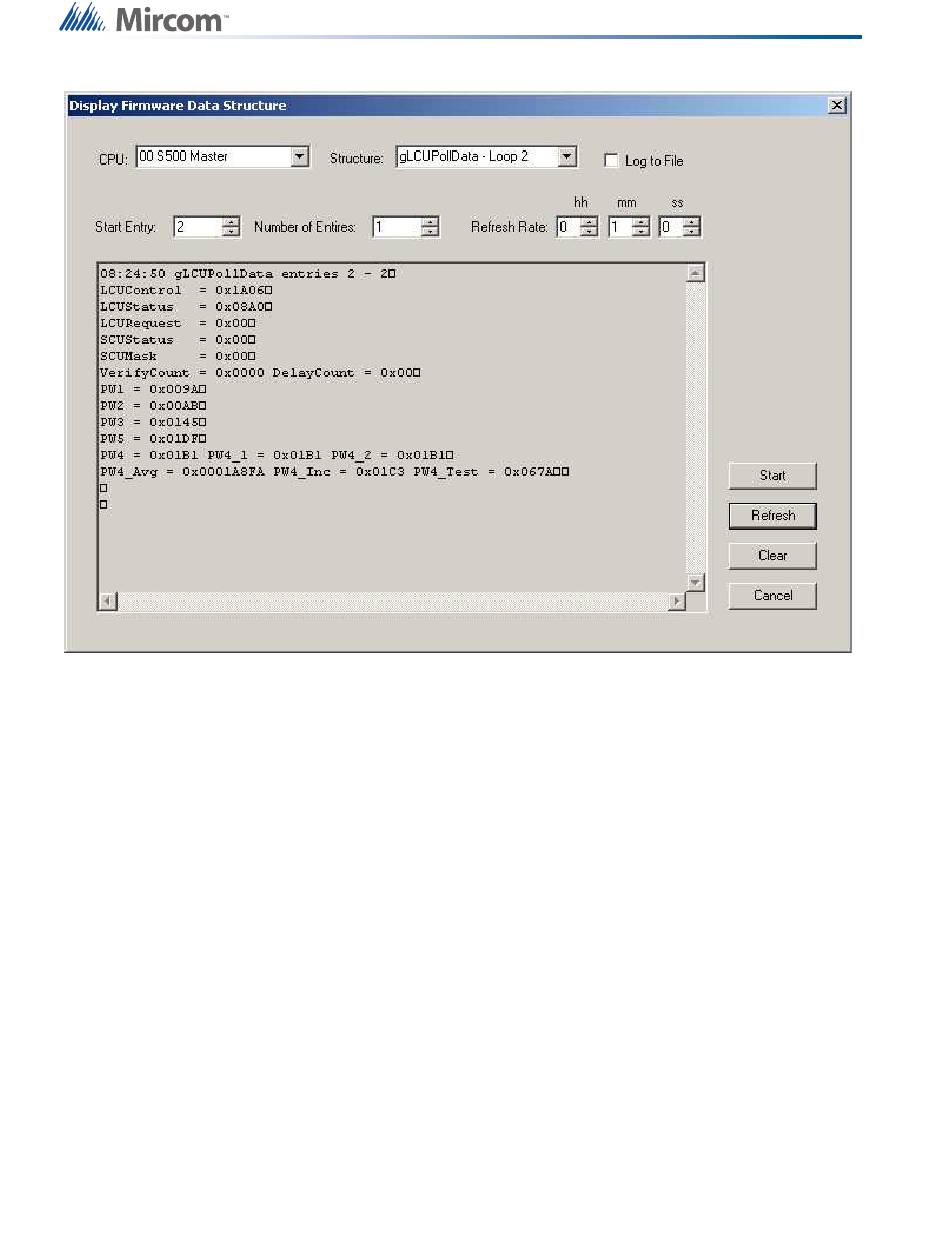

• Choose the Node and CPU.
• Choose the Structure on that CPU. Loop structures are qualified with a loop number.
e.g. gLCUPollData - Loop 2.
• Choose the entry (for Poll Data there is one entry per device, other structures may be
organised differently).
• Choose how many entries to display. The maximum is adjusted automatically to
compensate for the selected start entry. Note: The actual entries on the panel may be
less than the maximum. If you choose a start entry higher than the actual number of
entries on the panel you will get an error message. If you choose a number of entries
greater than those actually on the panel, you will receive only those that are present.
• You can get a "one shot" display by pressing Refresh.
• To run continuously, select a refresh rate and press Start.
• To log to file check the Log To File box and specify a destination file.
You can adjust the refresh rate, the start entry and the number of entries while the display is
running. They will take effect after the next interval has expired.
To view a different structure you must first press stop.
