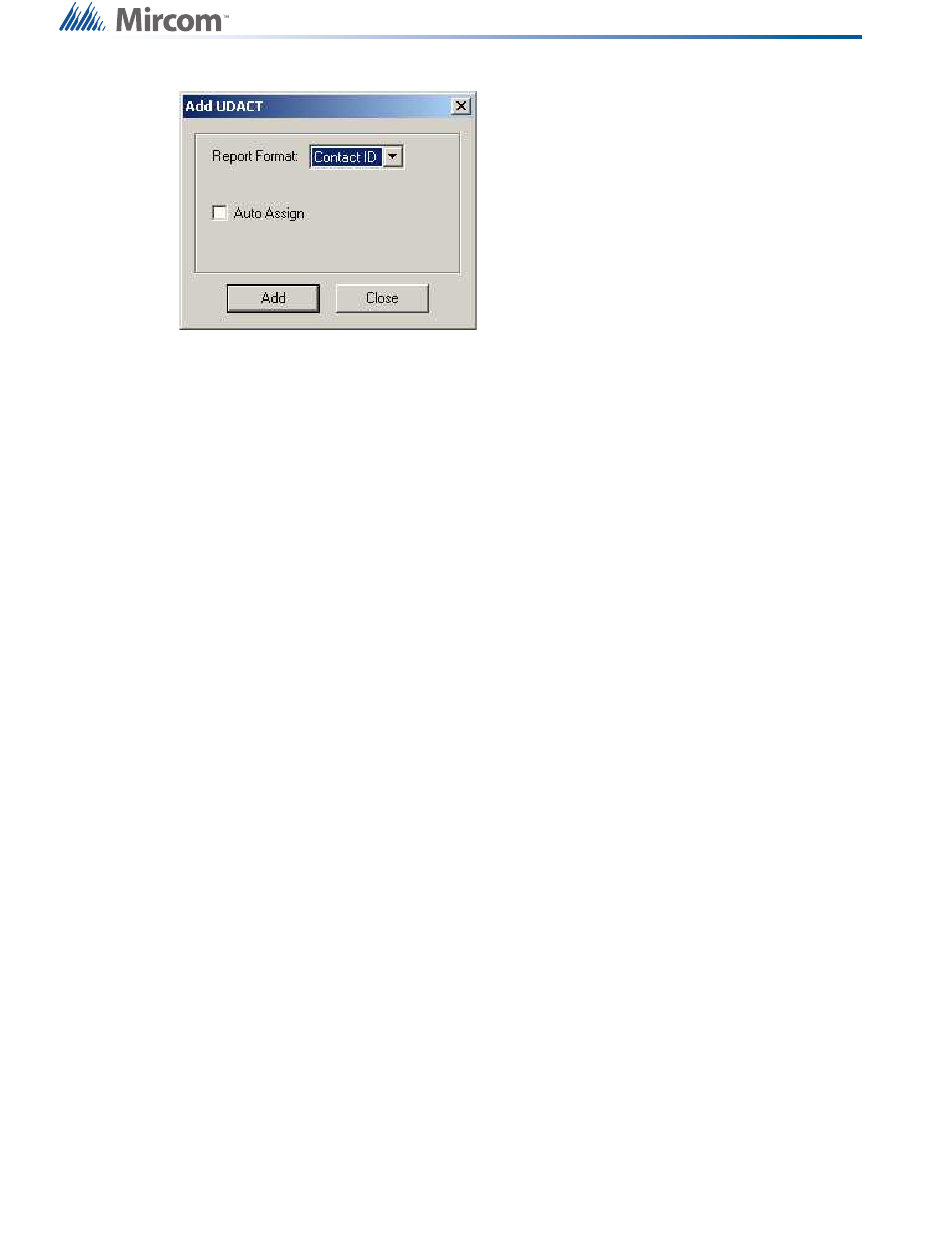

Report Format - Choose from Contact ID, SIA300 and SIA110. This is used only to set limits
on the UDACT Ref ranges.
Auto Assign - This option will automatically assign a UDACT group of the correct type for
every Input Zone and Output Circuit.
Advanced Panel Information Dialog
This dialog polls all the nodes and CPUs on the panel and checks their status against the
configuration.
The following information is displayed:
• Node - address
• Cpu No
• Type - CPU Type
• Version - current firmware version (n/a for RA1000)
• Language - language in firmware (standard messages/menu etc.)
• System Type - one of the following
• HW Type - "base" or "Exp. Master" for the Large board
• HW Vers - currently always VX.X.X
• Status - one of the following
Audio Compose
Digitized messages are composed using WAV files. A sequence of commands describes how
the wave sounds are to be combined. For example, a message could be composed of a sound
that is played once, followed by sound that is repeated three times, and finally, a sound to
conclude the message.
64
• Compact Build
• Large Build
• Online
• Not responding
• Wrong type (configured as "xxxx" )
• Unconfigured CPU
• Firmware version mismatch.
• Address mismatch (configured as node xx).
• Offline trouble: xxx xxx
Appendix B: Using the Configurator
