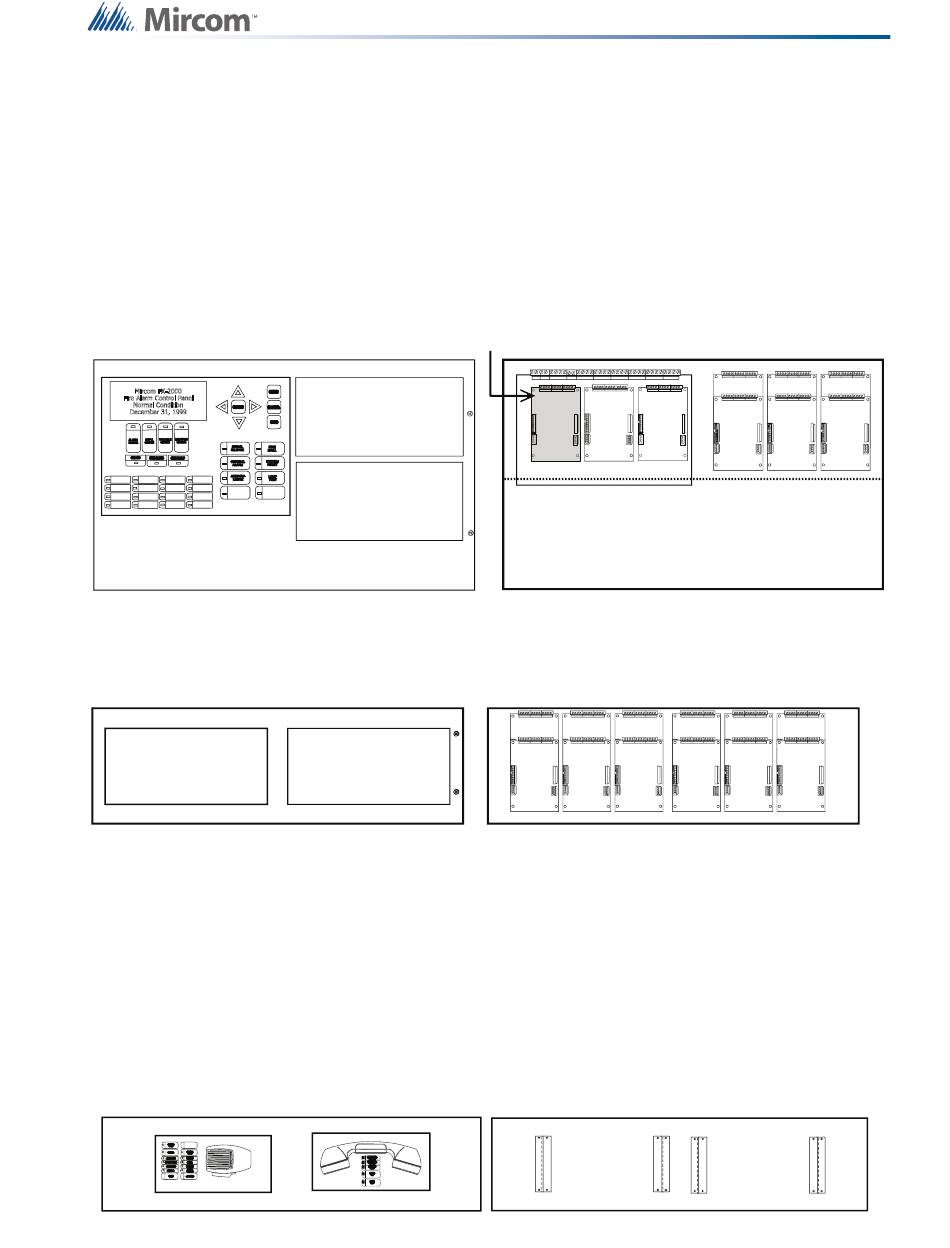

14.6 BB-5008 Fire Node Backbox

The BB-5008 enclosure is larger than the BBX-1072. It can use the FX-2009-12N Large Main
Chassis combined with ECX-0012 Expander Chassis for additional display modules and the
CCH-5008/CCH-5014 Custom Mounting Kits for paging and fire fighter telephone modules.
The FX-2009-12N Large Main Chassis can be substituted for two ECX-0012 Expander
Chassis with the main display being replaced by the DSPL-420 Narrow Main Display module.
The outer dimensions of the BB-5008 fit within 38.0" X 32.5" X 7.5".
(Mounts and occupies 4 display positions in BB-5008 or BB-5014 Enclosures)
Exterior View
Supports 2 Display Modules.
(Mounts and occupies 2 display positions in BB-5008 or BB-5014 Enclosures)
Exterior View
Cutout to mount
display module
Supports 2 Display Modules.
Mounting of Paging and FireFighter Telephone Modules
The Paging and FireFighter Telephone Modules mount in the BB-1000 or BB-5000 series enclosures. These modules require brackets
for mounting. The brackets are attached to the backplates of the enclosures. The FX-2017-12N Mid-Size Main Chassis does not have
provisions for these brackets since adder module are mounted to the backplate. The same is true for the FX-2009-12N Main Chassis
and ECX-0012 Expander Chassis since there are adder modules mounted on the backplate. In order to mount the Paging and
FireFighter Telephone modules, order the CCH-5008 or CCH-5014 Custom Mounting Kits which will provide the proper dead front as
well as the brackets on the backplate. These modules can also be mounted int he BB-1000 enclosures.
Exterior View
FX-2009-12N Large Main Chassis
Slot is reserved for PR-300A. If none is required, this slot
can be used to mount any of the adder modules.
Cutout to mount
display module
Cutout to mount
display module
ECX-0012 Expander Chassis for FX-2009-12N
Cutout to mount
display module
The backplate can support 12 Adder Modules or any 2
of the following 3 options: 6 Adder Modules, 1 Main Board
and 3 Adder Modules, 1 Telephone Network Card
and 1 Audio Network Card
Interior View
3 2 1
FleXNet Main Board
Supports 9 Adder Modules.
Interior View
6 5 4 3
12 11 10 9
Supports 12 Adder Modules.
Interior View
Hardware Layouts
6 5 4
9 8 7
2 1
8 7
