Alarm, Fault, Override or Out of Service respectively. Note that for Flex-Net override is never
used. For the Event State property one of three states is possible: normal, fault or off normal.
MULTI-STATE INPUTS: The Present Value property ranges from 0-7 and each value
indicates one of the eight possible states. For the Status Flags property a Boolean array
[_,_,_,_] is displayed with each value in the array representing the presence (1) or absence (0)
of an Alarm, Fault, Override or Out of Service respectively. Note that for Flex-Net override is
never used. For the Event State property one of three states is possible: normal, fault or off
normal.
LIFE SAFETY POINTS: The Present Value property can be in one of three states: quiet, fault
or alarm. For the Status Flags property a Boolean array [_,_,_,_] is displayed with each value
in the array representing the presence (1) or absence (0) of an Alarm, Fault, Override or Out of
Service respectively. Note that for Flex-Net override is never used. For the Event State
property one of three states is possible: normal, fault or off normal.
BINARY OUTPUTS: The Present Value property can be in one of two states: active or
inactive. The Status Flags property a Boolean array [_,_,_,_] is displayed with each value in
the array representing the presence (1) or absence (0) of an Alarm, Fault, Override or Out of
Service respectively. Note that for Flex-Net override is never used. For the Event State
property one of three states is possible: normal, fault or off normal.
Now that BACnet has been enabled and configured in the job file to be sent to the panel other
software can be used to monitor and interact with the Flex-Net system using BACnet.
Before attempting to connect to the Flex-Net system using BACnet software ensure that there
is a network connection between the computer the software is located on and the FACP. To do

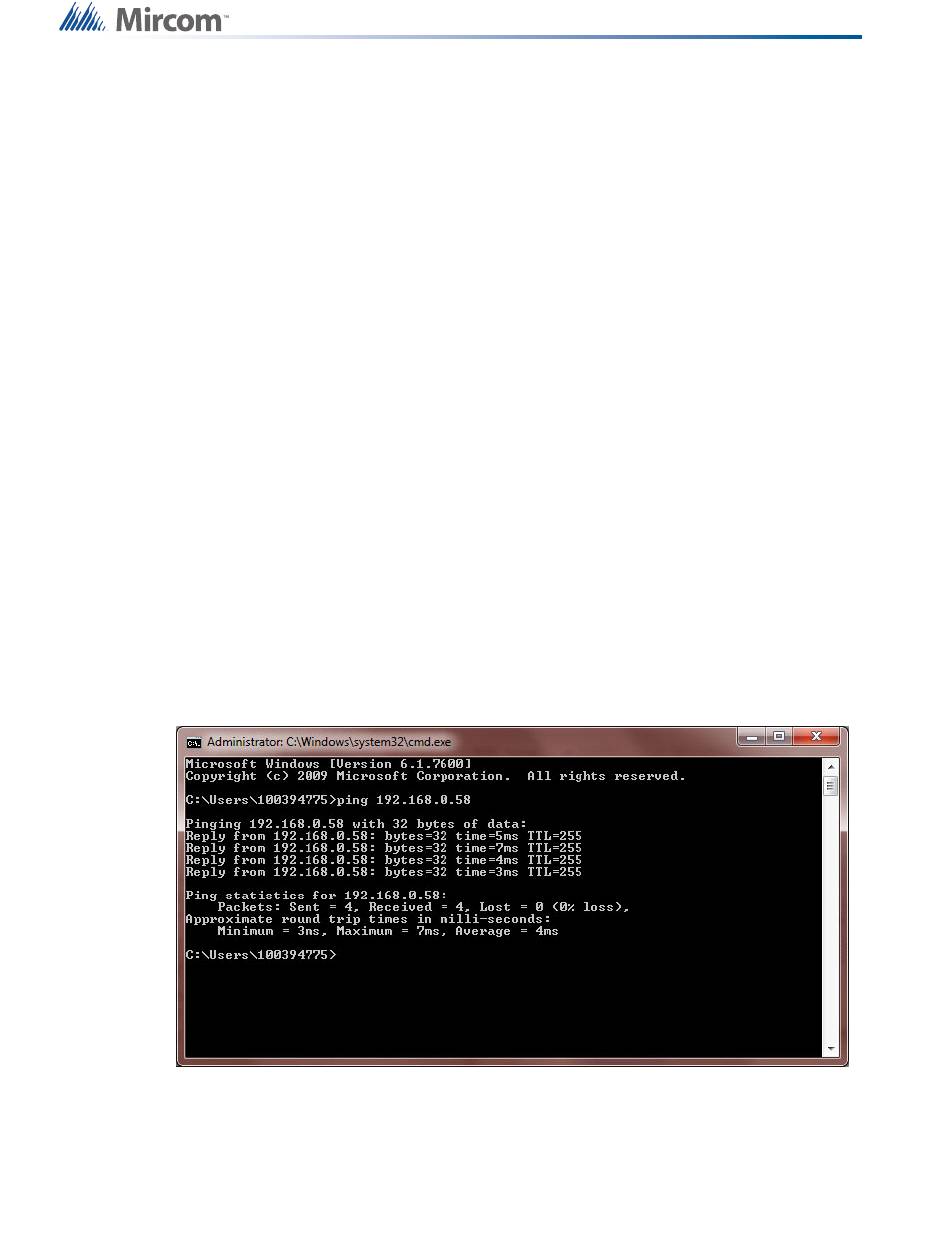

this open a command prompt window using your computer. Press Start, select Run, type
"cmd.exe" and press OK. In the command prompt window type "ping " followed by the IP of the
FACP. If the destination host is unreachable check the network connection and make sure that
the computer and the FACP are on the same subnet with different IPs.
