You must specify whether the Audio Controller will support a master handset (there must be at
least one per job). If you choose to support a master handset, it will consume one of the five
lines of the controller.
The new Audio Controller appears in the job tree. Its CPU Number is initially set to the next
available address. Below it, looking very much like loops of a loop controller, are two more
items: Phone Lines and Amplifiers.
You must also specify whether the four or five lines are to be configured as conventional
phones or as voice lines to serve addressable phone modules. After the Audio Controller is
added you can still edit these attributes, or change just some of the lines between voice and
conventional.
Adding Fire Phone Module
Invoke Add Device function. This can be done...
• By pressing the right mouse button, with focus on an addressable device list.
• By pressing the right mouse button, with focus on the tree item representing an
addressable loop.
• By using the Insert menu and choosing Add Device

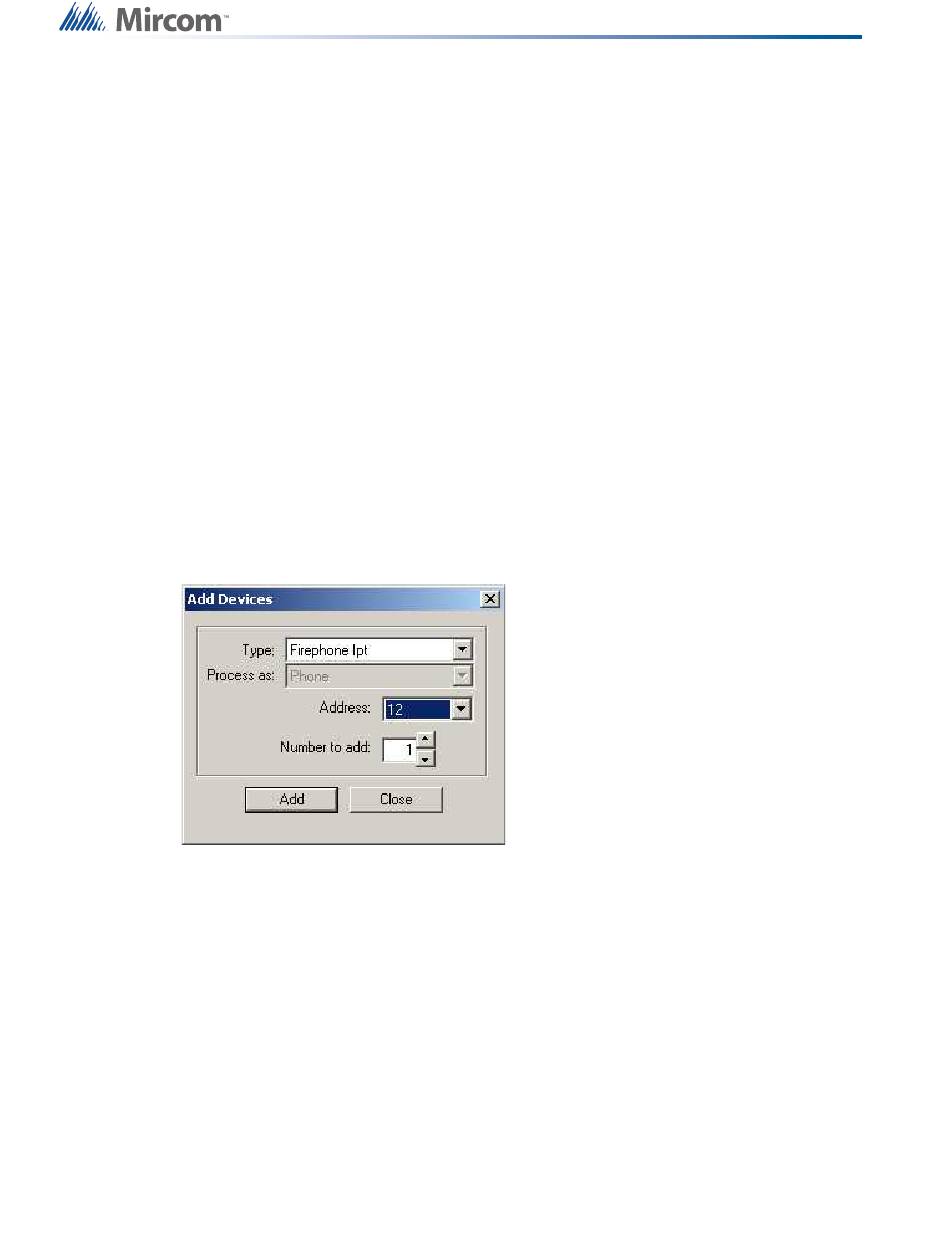

The following dialog appears.
Select the Firephone Ipt in the Type Comb Box. Adjust the Number to add if you want more
than one Firephone. Press the Add button.
Only the Tag1 and Tag2 fields can be edited.
Adding Master Telephones
A maximum of one Master Telephone can be added to each RAX LCD Annunciator or to the
Base Panel's Main Display.
Invoke the Add Display Adder function. This can be done...
• By pressing the right mouse button, with focus on the tree item representing either an
annunciator or another display adder belonging to an annunciator.
• By using the Insert menu and choosing Add Display Adder.
The following dialog appears.
