Mircom Flex-Net Phase II Application Manual page 122

Appendix B: Using the Configurator

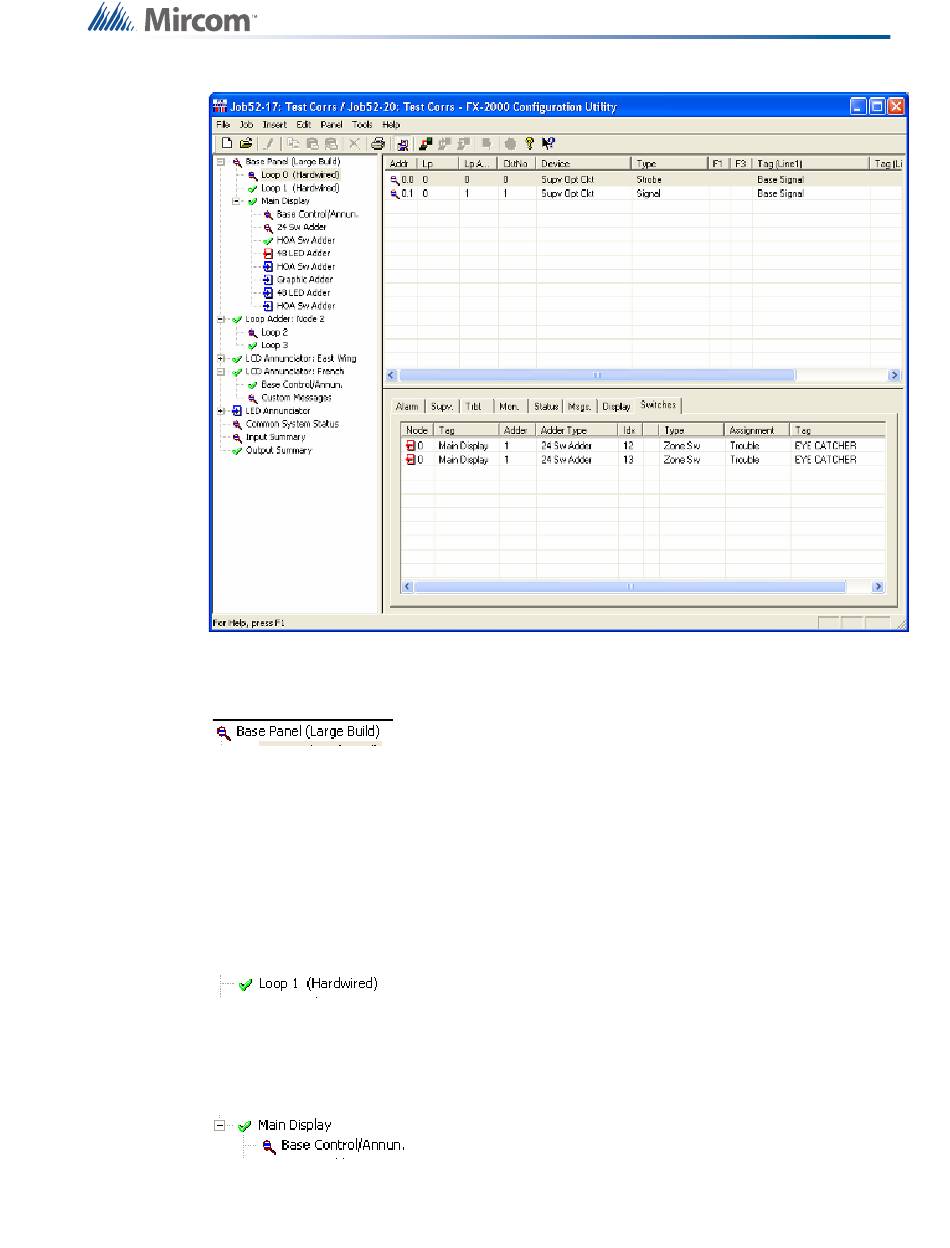

The magnifying glass icon represents an item that has been modified, symbolizing that it
warrants a closer look: some lower level attributes have changed.
Items that have not changed are given the green check mark icon. More precisely, this means
that there were no reportable changes on this item or any of its lower levels. If you chose a
non-standard set of options and excluded, for example '..items that are modified', then a green
check mark will appear if there are modifications, but no deletions and additions. This is
because you chose to ignore or exclude them. This icon is only used in the job tree. Items in
list views are suppressed completely if you choose not to include items that are identical. If
you include items that are identical, then they have no icon at all. This is to avoid clutter and
aid readability of the lists.
Notice that here (below) the Main Display itself did not change. None of its attributes, such as
Pass Codes, System Messages, etc. were changed. The fact that some changes were made
to its Base Control/annun. does not cause the Main Display itself to be marked as changed.
121
