• Aux disconnect
• If enabled, the dialer will block the alarm and supervisory events from being
reported after the auxiliary disconnect button is pressed.

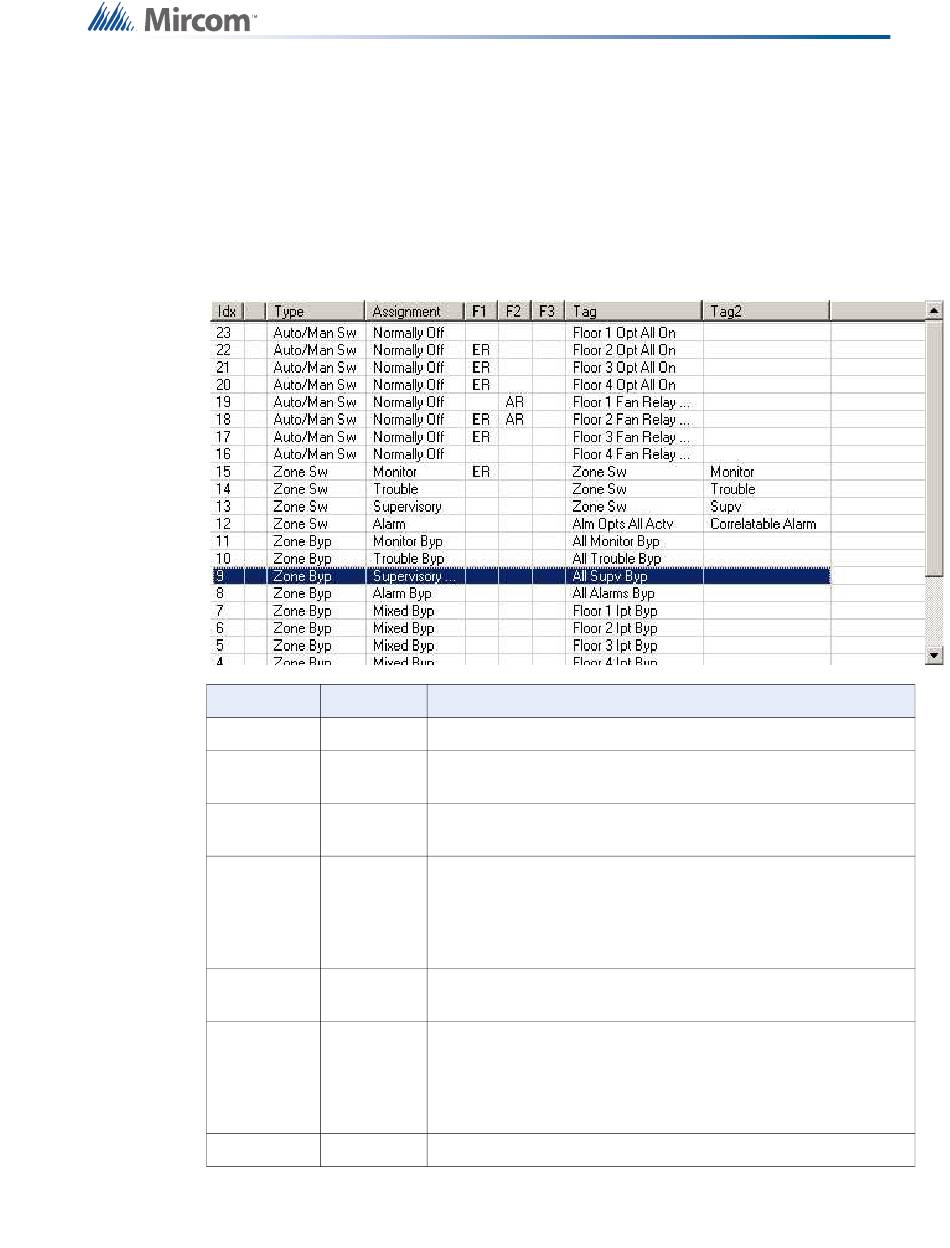

Display Adder
This list view appears in the top, right pane of the user interface when a display adder is
selected in the Job Tree. The list displays items (LEDs and Switches) of all the frames on the
selected Display Adder.
Name Visible
Idx Yes
Node No
CPU No
Unnamed Yes
Frame No
LED No
Sw No
Description
Index - the zero based position of the item on the adder.
The Node Number of the Annunciator to which the adder is
attached.
The CPU Number of the Annunciator to which the adder is
attached.
Linked Item - contains an asterisk if the item shares the same
LedGrp with other items. This means that correlations to one
such item are added to all linked items. Linked Items can be
created when Paste Special is used. The linked items can be
viewed with the Linked Items dialog.
The Frame Number. An adder may contribute several frames to
an annunciator. The frame numbers are zero based.
The number (zero based) of the first LED of a logical group. For
example, an HOA adder has three LEDs per slide switch. This
column would show 0 for Idx 0, 3 for Idx 1, etc. Due to the way
some adders are arranged (hardware) the LED numbers are in
irregular sequences.
The Switch number (if any) associated with the Idx.
