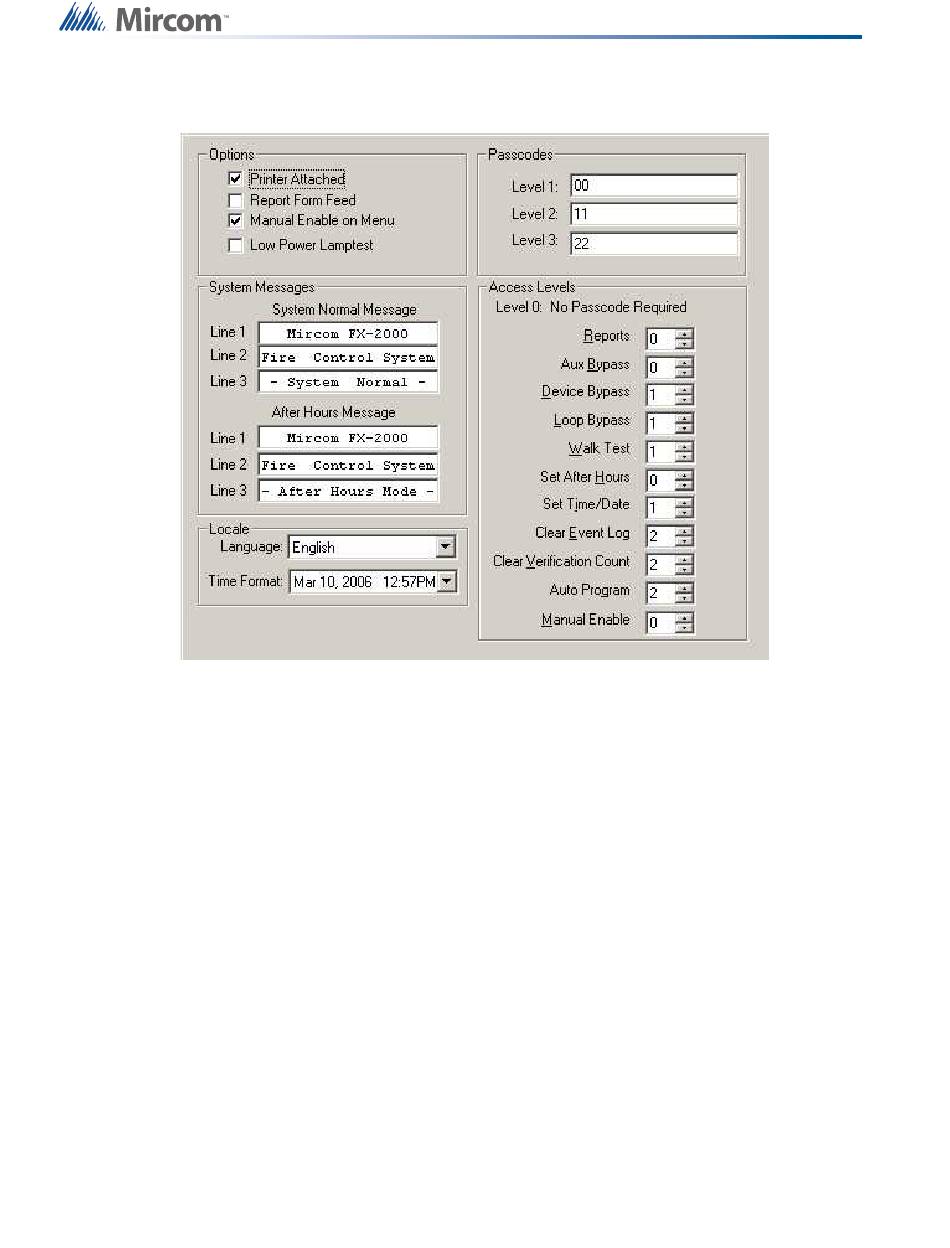

Main Display / LCD Annunciator
Major Sections
• Options
• System Messages
• Locale
112
• Printer Attached - check box to indicate if a printer is attached to this
annunciator.
• Report Form Feed
• Manual Enable on Menu - check to add a Manual Enable option on the LCD's
user menu.
• Low Power Lamp Test
• Three 20 character text fields for System Normal Messages. A fixed font is used
so that the user can view the actual spacing and alignment of characters as they
will appear on the LCD. The standard text, from the template jobs, is in the
language specified in the Locale section.
• Language - sets the language for this Annunciator. When the job is sent to the
panel, a check is made to ensure that matching Firmware is loaded for this
CPU. Any generated messages (Proving / Man Ctrl) will be constructed using
the tag of the control plus System defined tokens for the selected language. The
Main Display's chosen language becomes the default for other Annunciators
that are added to the job, but the language does not have to be the same on all
Annunciators of a job.
• Time Format - choose between a fixed number of time and date formats. The
combo box shows a sample of each for the current time of day. The chosen
Appendix B: Using the Configurator
