• Language If the panel firmware supports it, there may be template jobs for more
than one language. e.g. English or French. For panels with multiple CPUs, this
is the language of the Main CPU. The firmware must match otherwise the job
cannot be sent to the panel.
• Copy current job data As an alternative to choosing a standard template, check this box
to make a copy of the current job (which is presently open in the configurator). In this
case the Panel Model and Job Template controls are disabled.

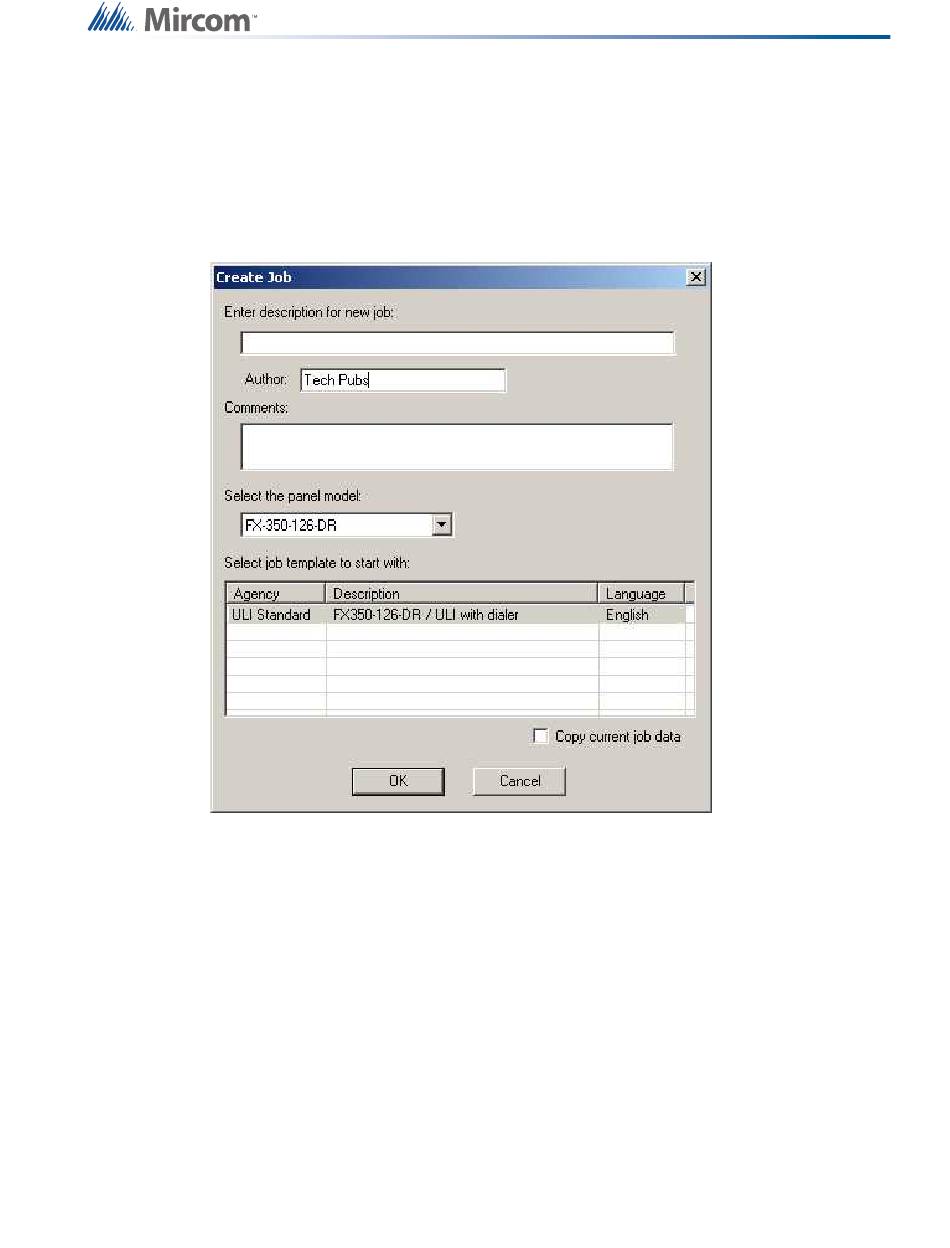

Note: This dialog is also shown when Get Job is used to retrieve a job from the panel and no
previous version of the job is stored on the database. The same dialog is used if the job name
on the panel and the database are the same, but the Product is different. You will be prompted
for a new, unique name. In these cases the Panel Model, Job Template and Copy current job
data controls are disabled.
Display Structure
This utility allows you to view the contents of a panel data structure. You have the option of
continually retrieving and displaying the same structure at a refresh rate you specify. You can
also log the results to a file.
To display a structure proceed as follows.
• Connect to the panel and click Display Structure under the Tools menu (you must have
selected Show Tools Menu under preferences). The following dialog appears.
