Mircom Flex-Net Phase II Application Manual page 16

This is for informational purposes only and is not intended to be used to identify objects or their
location. Instead the configurator can generate a BACnet XML report that includes the
address ID of each object as well as other identifying information such as node, CPU and loop
number. To generate an XML report:
1. Navigate to the configurator menu bar and select the Job drop down menu. From the
drop down menu select Export Job, the Export Current Job to a File window appears.
2. In this new window choose a location to save the file under the "Save in" drop down
menu.
3. Enter a name for the file under the "File name" drop down menu, and select "XML files
(*.xml)" under the "Save as type" drop down menu.
4. Press Save and a new window appears. In this new window select "BACnet Report -
Excel" and press OK.

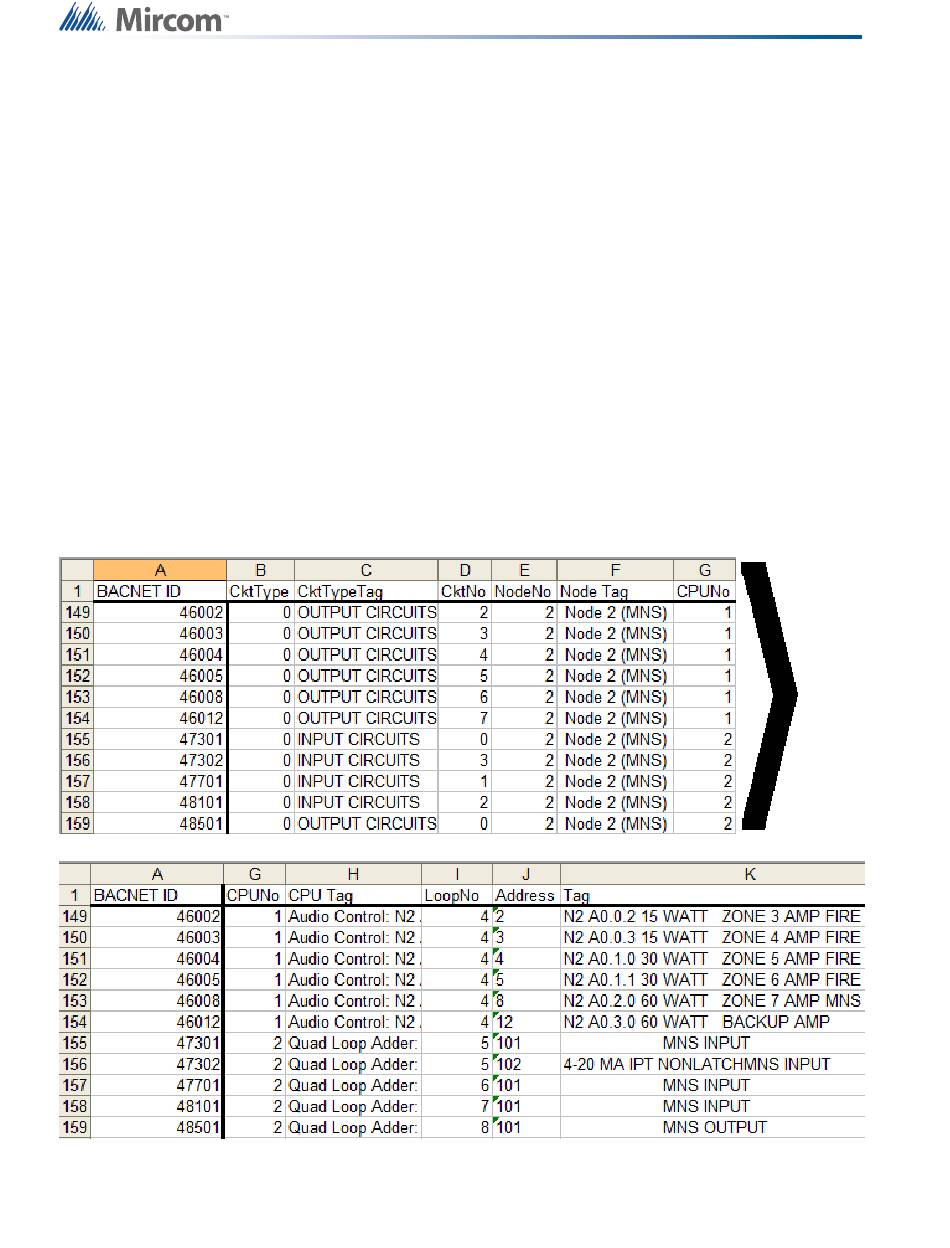

The report will appear as shown below. The first column will list the BACnet ID of each object
in the Flex-Net system. Following this column other identifying information for the object will be
listed. The NodeNo, CPUNo and LoopNo columns describe which Node, CPU and Loop
each object exists on. The Node Tag and CPU Tag columns are descriptions of the Node and
CPU respectively. The Address column lists the fire device address and the Tag column
provides a description of the object. The CktType, CktTypeTag and CktNo columns contain
information that is used internally by the Flex-Net firmware to identify the object.
