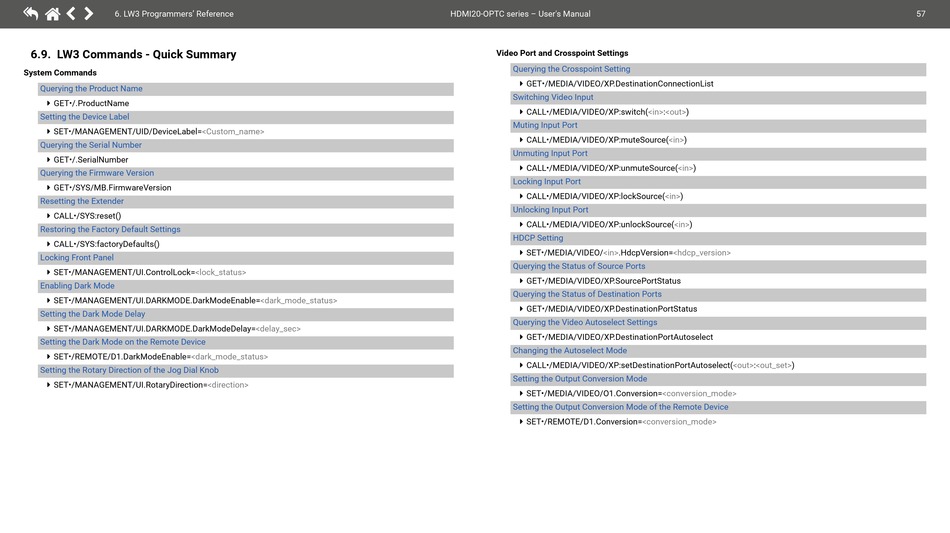

6. LW3 Programmers' Reference
6.9. LW3 Commands - Quick Summary
System Commands
Querying the Product Name
Ý GET•/.ProductName
Setting the Device Label
SET•/MANAGEMENT/UID/DeviceLabel=<Custom_name>
Ý
Querying the Serial Number
Ý GET•/.SerialNumber
Querying the Firmware Version
Ý GET•/SYS/MB.FirmwareVersion
Resetting the Extender
Ý CALL•/SYS:reset()
Restoring the Factory Default Settings
Ý CALL•/SYS:factoryDefaults()
Locking Front Panel
SET•/MANAGEMENT/UI.ControlLock=<lock_status>
Ý
Enabling Dark Mode
SET•/MANAGEMENT/UI.DARKMODE.DarkModeEnable=<dark_mode_status>
Ý
Setting the Dark Mode Delay
SET•/MANAGEMENT/UI.DARKMODE.DarkModeDelay=<delay_sec>
Ý
Setting the Dark Mode on the Remote Device
SET•/REMOTE/D1.DarkModeEnable=<dark_mode_status>
Ý
Setting the Rotary Direction of the Jog Dial Knob
SET•/MANAGEMENT/UI.RotaryDirection=<direction>
Ý
HDMI20-OPTC series – User's Manual
Video Port and Crosspoint Settings
Querying the Crosspoint Setting
Ý GET•/MEDIA/VIDEO/XP.DestinationConnectionList
Switching Video Input
Ý CALL•/MEDIA/VIDEO/XP:switch(<in>:<out>)
Muting Input Port
Ý CALL•/MEDIA/VIDEO/XP:muteSource(<in>)
Unmuting Input Port
Ý CALL•/MEDIA/VIDEO/XP:unmuteSource(<in>)
Locking Input Port
Ý CALL•/MEDIA/VIDEO/XP:lockSource(<in>)
Unlocking Input Port
Ý CALL•/MEDIA/VIDEO/XP:unlockSource(<in>)
HDCP Setting
SET•/MEDIA/VIDEO/<in>.HdcpVersion=<hdcp_version>
Ý
Querying the Status of Source Ports
Ý GET•/MEDIA/VIDEO/XP.SourcePortStatus
Querying the Status of Destination Ports
Ý GET•/MEDIA/VIDEO/XP.DestinationPortStatus
Querying the Video Autoselect Settings
Ý GET•/MEDIA/VIDEO/XP.DestinationPortAutoselect
Changing the Autoselect Mode
Ý CALL•/MEDIA/VIDEO/XP:setDestinationPortAutoselect(<out>:<out_set>)
Setting the Output Conversion Mode
SET•/MEDIA/VIDEO/O1.Conversion=<conversion_mode>
Ý
Setting the Output Conversion Mode of the Remote Device
SET•/REMOTE/D1.Conversion=<conversion_mode>
Ý
