158 C 4: C
HAPTER ONFIGURING
P B S330/S310 M
ATH UILDER ODULES

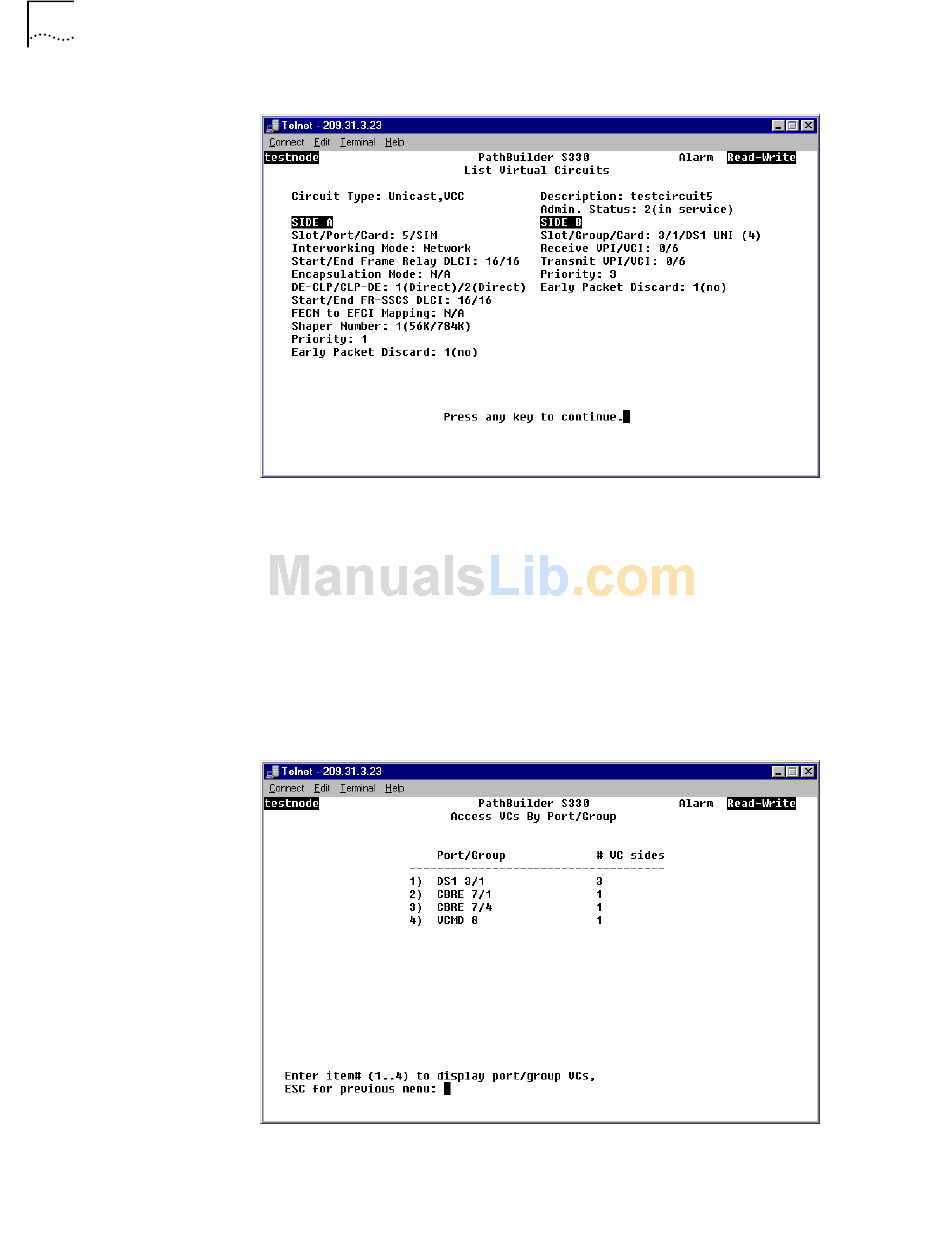

Figure 126 List Virtual Circuit Detail Screen

Viewing Virtual Circuits by Port or Group

To view a summary of existing virtual circuits for a selected port or group, follow
these steps:
1 From the Configuration Management menu, select [2] Manage Circuit to open the
Virtual Circuit menu, shown earlier in Figure 103
2 From the Virtual Circuit menu, select [6] Access Virtual Circuits by Port/Group to
open the Access VCs by Port/Group Selection menu, shown in Figure 127. This
menu lists the ports and groups on the chassis for which virtual circuits have been
defined and the number of VC sides associated with each port/group.
Figure 127 Access VCs by Port/Group Selection Menu
3 Enter the number corresponding to the port or group for which you want to view
virtual circuits to open the Access Virtual Circuits by Port/Group screen, shown in
Figure 128.
