Configuring the T1/ E1
Card
# Rx Configured Links—The number of configured receive links.
#Tx Active links—The number of active transmit links.
#Rx Active links—The number of active receive links.
The only type of configuration you can perform on the T1/E1 UNI card is to put it
in service or out of service.
To put the T1/E1 UNI card in service or out of service, follow these steps:
1 From the Configuration Management menu, shown earlier in Figure 50, select
[1] Manage Card to display the List Card menu, shown earlier in Figure 51.
2 From the List Card menu, select the number corresponding to the slot in which the
T1 UNI or E1 UNI card is installed to display the T1 (DS1) UNI or E1 UNI
Configuration menu, shown earlier in Figure 58.
3 From the T1 (DS1) UNI or E1 UNI Configuration menu, select [5] Card Information
to display the Card Configuration menu. Figure 73 shows the T1 (DS1) UNI Card
Configuration menu. The E1 UNI Card Configuration menu is the same.

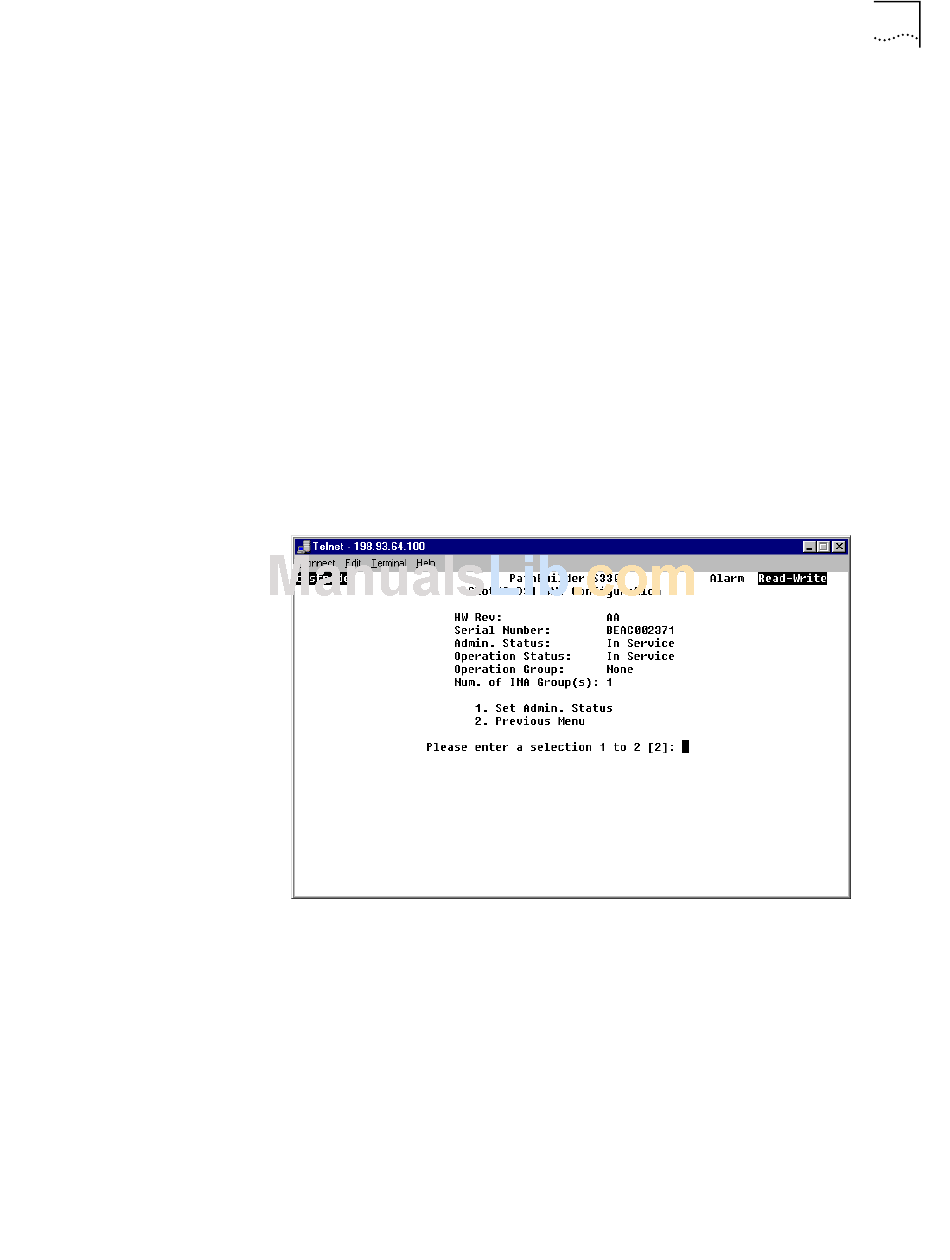

Figure 73 Configuring the T1/E1 Card
4 Select [1] Set Admin Service and enter 2 to put the card in service or 1 to take it
out of service.
In addition to the current T1/E1 card configuration, the T1/E1 UNI Card
Configuration menu lists the following group-related information:
Operation Group—The active IMA groups in the card.
Num. of IMA Group(s)—The number of IMA groups created (but not necessarily
active) on the card.
Configuring the T1/E1 Interface 103
