144 C 4: C
HAPTER ONFIGURING
P B S330/S310 M
ATH UILDER ODULES

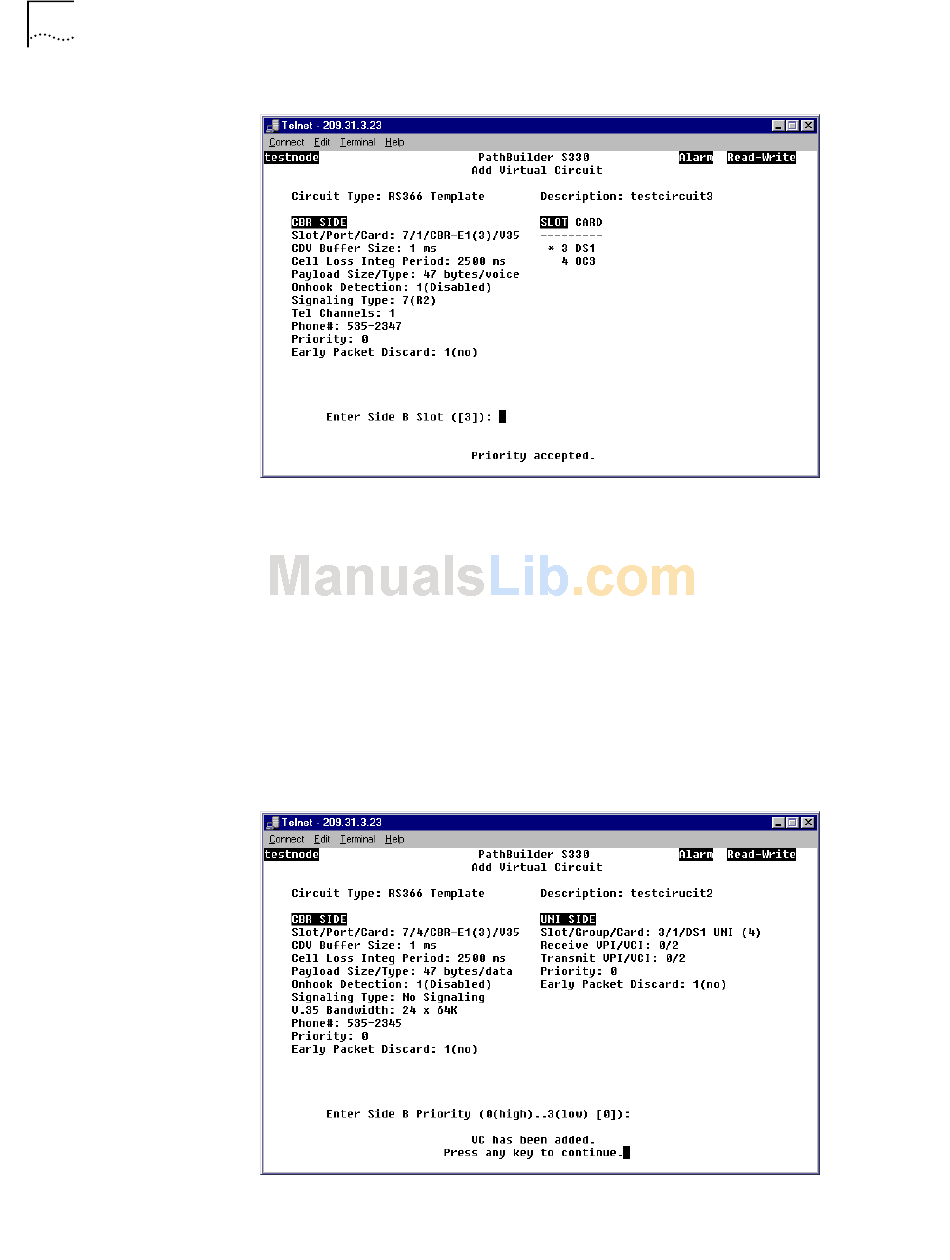

Figure 113 Side A Completed for Video VIrtual Circuit Using CBR T1-DSX/E1 Port
5 Select the slot number corresponding to the module by which you are connected
to the network for side B of the circuit template.
6 Repeat steps 3 and 4 for side B of the circuit template. After you enter the last
parameter for side B, the following prompt appears at the bottom of the screen:
Is the above information correct (y/n)?
7 Enter y to confirm your configuration. The following message appears at the
bottom of the screen:
VC has been added.
Press any key to continue.
Figure 114 shows a completed video virtual circuit template. When the phone
number 555-2345 is dialed, the circuit that this template defines will be activated.
Figure 114 Completed RS366 (video) Virtual Circuit Template
8 Press any key to return to the Virtual Circuit menu.
