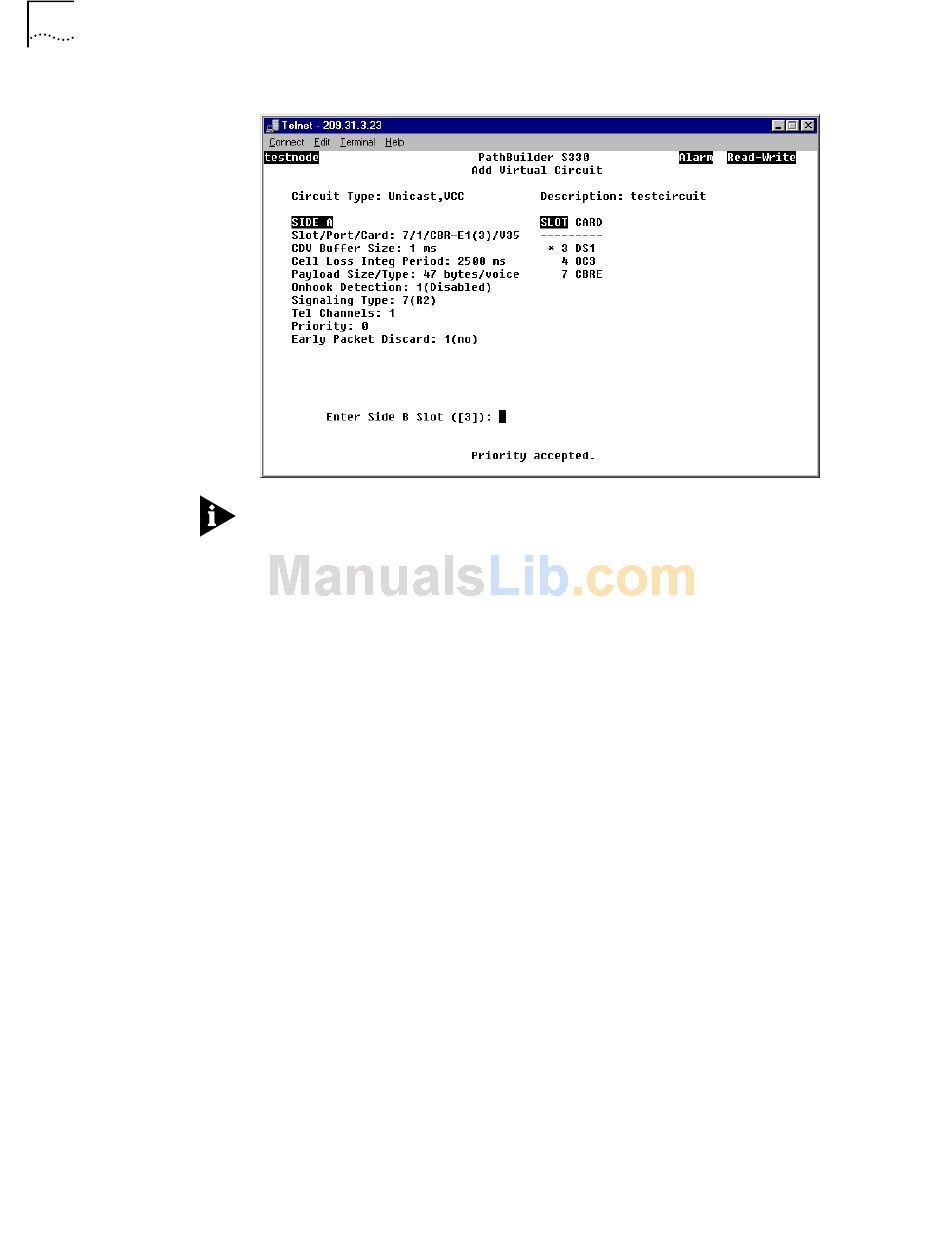

Figure 108 Add Virtual Circuit Screen with Side A Completed
Some parameters that appear on the Add Virtual Circuit screen may not apply to
the particular circuit you are configuring. The system skips any non-applicable
parameters and does not allow you to set them. In addition, certain parameters
may be displayed for information only; you cannot change these read-only values.
5 Select the slot number corresponding to the module by which you are connected
to the network for side B of the circuit.
6 Repeat steps 3 and 4 for side B of the circuit. After you enter the last parameter
for side B, the following prompt appears at the bottom of the screen:
Enter Admin. Status (1=out of service, 2=in service [2]):
7 Set the administrative status for the circuit. The following prompt appears at the
bottom of the screen:
Is the above information correct (y/n)?
8 Enter y to confirm your configuration. Figure 109 shows a completed data port
VCC circuit. As shown in the figure, the following message appears at the bottom
of the screen:
VC has been added.
Press any key to continue.
