Adding Vcm Subchannel Circuits - 3Com SuperStack II PathBuilder S330 Reference Manual

Adding VCM Subchannel
Circuits

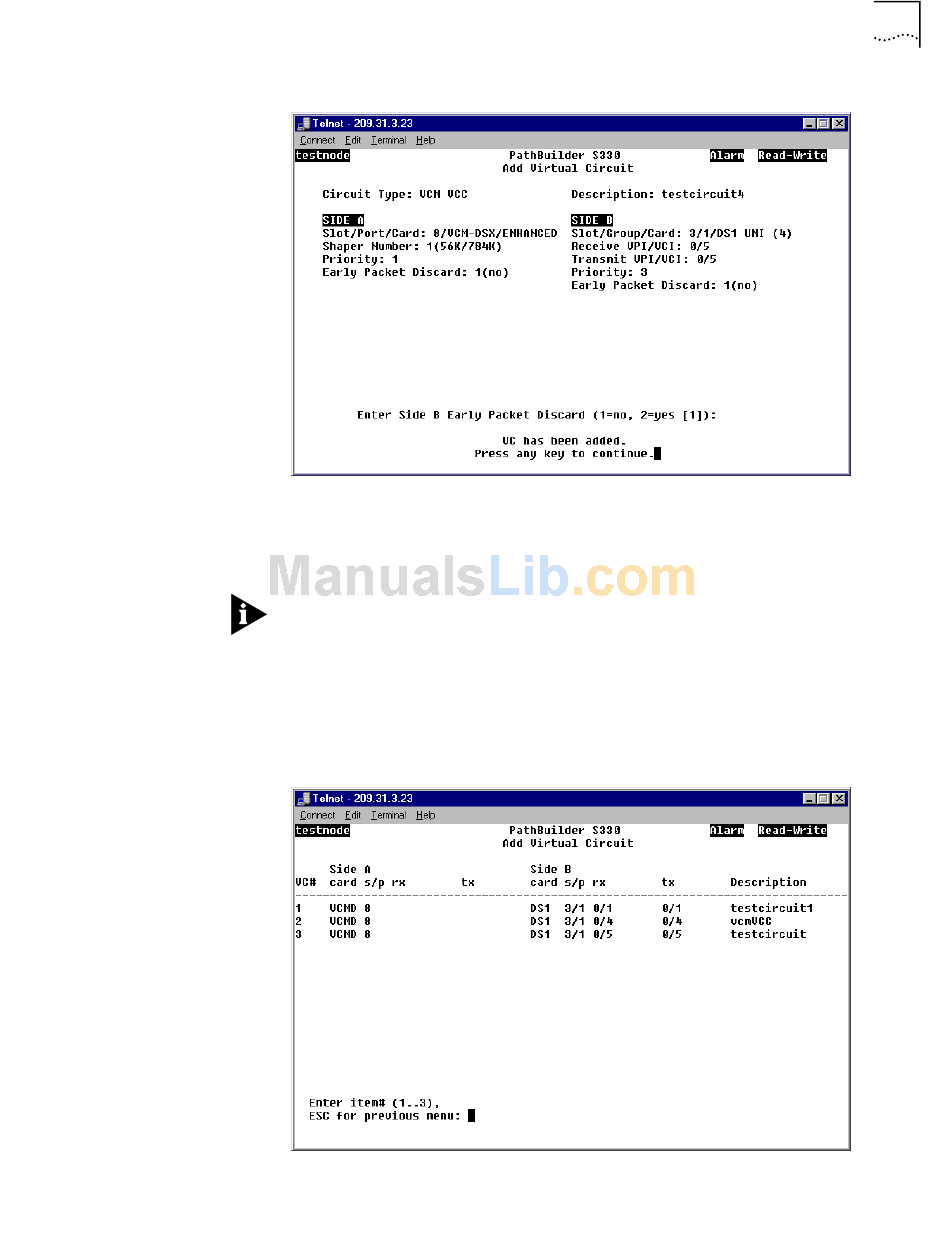

Figure 118 Completed VCM VCC Virtual Circuit
7 Press any key to return to the Virtual Circuit menu.
To configure a VCM subchannel circuit, follow these steps:
You must configure at least one VCM VCC circuit before you can configure any
VCM subchannel circuits.
1 When you are prompted to select the virtual circuit class, as shown earlier in
Figure 105, select [4] VCM Subchannel.
A screen similar to the one shown in Figure 119 appears. This screen lists the
currently-configured VCM VCC circuits.
Figure 119 Selecting a VCM VCC to Use for a VCM Subchannel Circuit
Configuring Virtual Circuits 147
