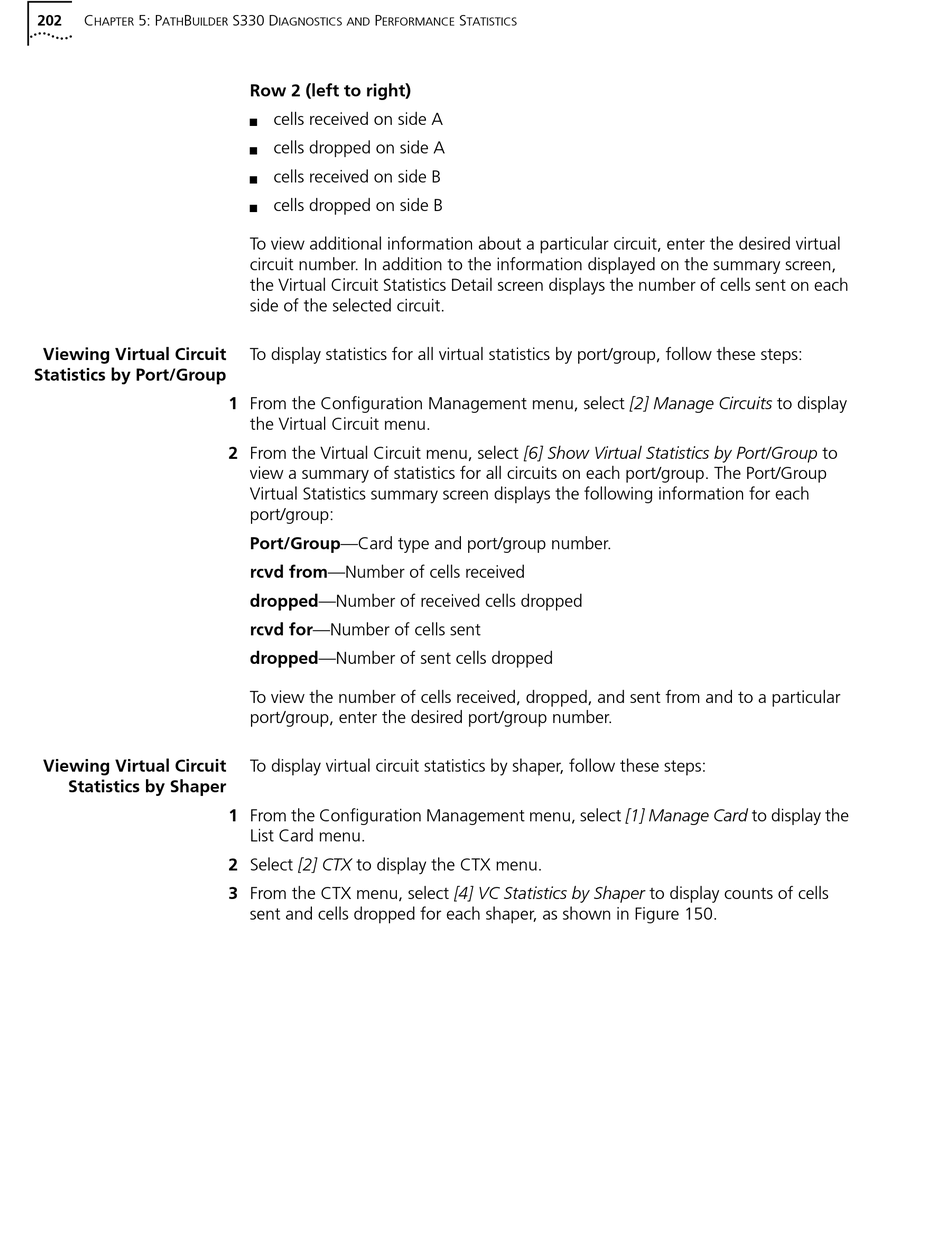

202
C
5: P
B
HAPTER
ATH
UILDER
Viewing Virtual Circuit
Statistics by Port/Group
Viewing Virtual Circuit
Statistics by Shaper
S330 D
P
IAGNOSTICS AND
ERFORMANCE
Row 2 (left to right)
cells received on side A
n
cells dropped on side A
n
cells received on side B
n
cells dropped on side B
n
To view additional information about a particular circuit, enter the desired virtual
circuit number. In addition to the information displayed on the summary screen,
the Virtual Circuit Statistics Detail screen displays the number of cells sent on each
side of the selected circuit.
To display statistics for all virtual statistics by port/group, follow these steps:
1 From the Configuration Management menu, select [2] Manage Circuits to display
the Virtual Circuit menu.
2 From the Virtual Circuit menu, select [6] Show Virtual Statistics by Port/Group to
view a summary of statistics for all circuits on each port/group. The Port/Group
Virtual Statistics summary screen displays the following information for each
port/group:
Port/Group—Card type and port/group number.
rcvd from—Number of cells received
dropped—Number of received cells dropped
rcvd for—Number of cells sent
dropped—Number of sent cells dropped
To view the number of cells received, dropped, and sent from and to a particular
port/group, enter the desired port/group number.
To display virtual circuit statistics by shaper, follow these steps:
1 From the Configuration Management menu, select [1] Manage Card to display the
List Card menu.
2 Select [2] CTX to display the CTX menu.
3 From the CTX menu, select [4] VC Statistics by Shaper to display counts of cells
sent and cells dropped for each shaper, as shown in Figure 150.
S
TATISTICS
