Managing Video Dial-up
Sessions
To set up, activate, and end a video dial-up session, follow these basic steps:
1 Create virtual circuits between the appropriate PathBuilder S330/S310 units. This
effectively builds a call routing table.
For detailed instructions, see"Defining RS366 (Video) Virtual Circuit Templates",
earlier in this chapter.
2 Start the session either manually or automatically via the RS-366 interface. For
details, see "Starting Video Dial-up Sessions" later in this section.
3 End the session either manually or automatically via the V.35 interface. For details,
see "Ending Video Dial-up Sessions" later in this section.

Starting Video Dial-up Sessions

A video dial-up session starts (connects) automatically when someone dials a
number matching one of the numbers in the call routing table (one of the
numbers associated with an RS366 virtual circuit template) on a video keypad. You
create the call routing table by building virtual circuits between PathBuilder
S330/310 CBR modules. For details about building video virtual circuits, see
"Defining RS366 (Video) Virtual Circuit Templates", earlier in this chapter. For
details about viewing the call routing table, see "Viewing the Video Call Routing
Table" later in this section.
You can also start (connect) a video dial-up session manually. To do this, follow
these steps:
1 From the Configuration Management menu, select [4] Manage Video Dial to
display the Manage Video Dial menu, shown earlier in Figure 129.
2 From the Manage Video Dial menu, select [2] Manually Connect (Dial) A Site to
display the Manually Connect A Site menu, shown in Figure 130. The current
connection status is displayed at the top of the menu.

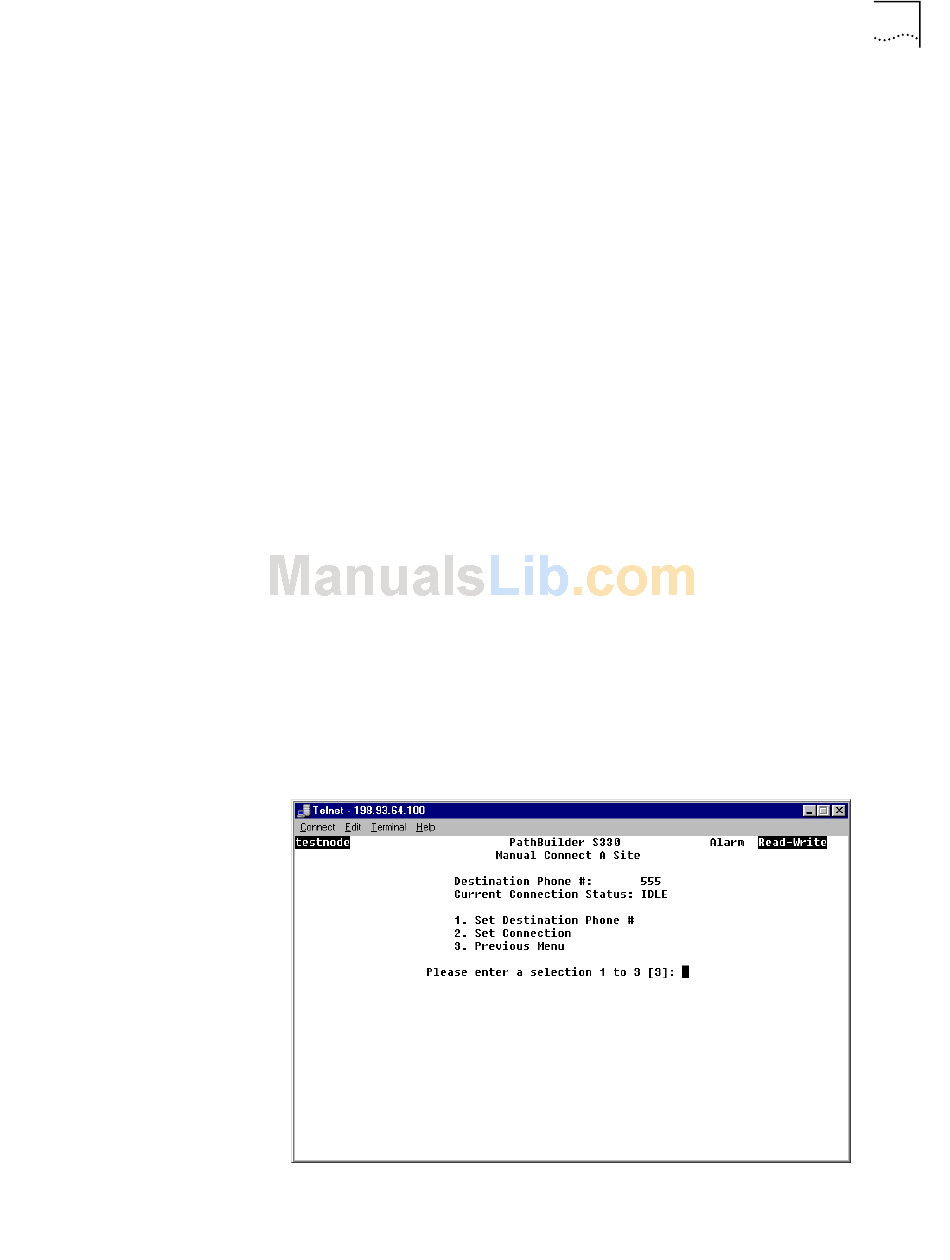

Figure 130 Manually Connect A Site Menu
Managing the Video Dial Feature 161
